NSN 1620-01-296-4328 2006101105, 2006101-105, 01-296-4328
Product Details | LANDING GEAR DIRECT ACTION SHOCK ABSORBER
1620-01-296-4328 A pneumatically or hydraulically damped coupling used to absorb forces generated by the contact of aircraft landing gear with a landing surface.
Part Alternates: 2006101105, 2006101-105, 1620-01-296-4328, 01-296-4328, 1620012964328, 012964328
Aircraft Components and Accessories | Aircraft Landing Gear Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 20 MAR 1989 | 01-296-4328 | 38261 ( SHOCK ABSORBER, DIRECT ACTION, LANDING GEAR ) |
Drawings & Photos | NSN 1620-01-296-4328
Demand History | NSN 1620-01-296-4328
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1620-01-296-4328 | 2015-10-278 | 1 | NL |
| 1620-01-296-4328 | 2009-04-111 | 8 | Netherlands |
Cross Reference | NSN 1620-01-296-4328
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2006101-105 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1620-01-296-4328
Related Products | NSN 1620-01-296-4328
Technical Data | NSN 1620-01-296-4328
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| HYDRAULIC SYSTEM FLUID CAPACITY | 60.0 CUBIC INCHES |
| FILLER PLUG | INCLUDED |
| SIDE ATTACHED FLUID TANK | NOT INCLUDED |

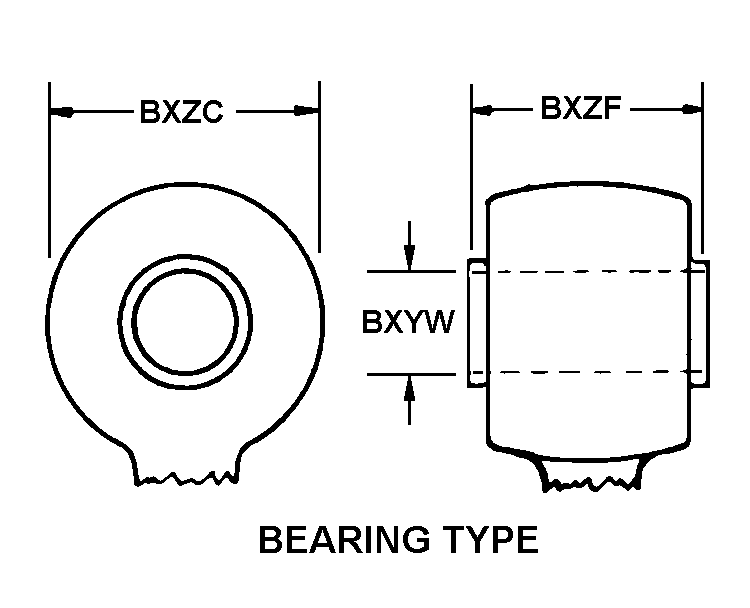

| PISTON END CONNECTION STYLE | F3 BEARING TYPE |

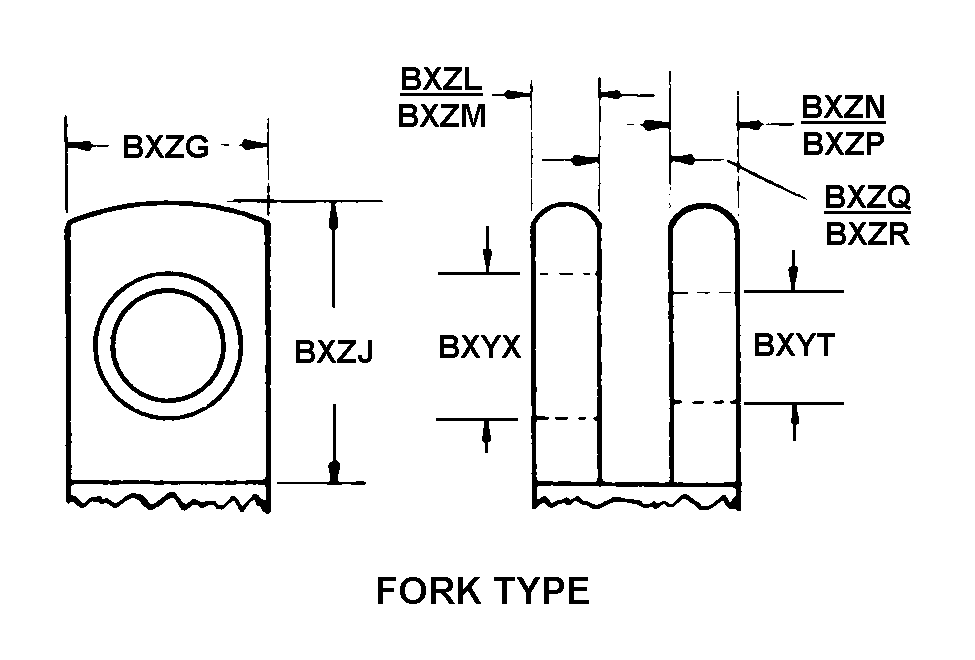

| CYLINDER END CONNECTION STYLE | F6 FORK TYPE |
| COMPRESSED LENGTH | 32.660 INCHES NOMINAL |
| EXTENDED LENGTH | 36.850 INCHES NOMINAL |
| STROKE LENGTH | 2.420 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON MAIN LANDING GEAR |
| III END ITEM IDENTIFICATION | F-16 AIRCRAFT |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC,VACUUM,DEICING SYSTEMS |
Restrictions/Controls & Freight Information | NSN 1620-01-296-4328
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 012190 | AIRCRAFT LANDING GEARS ETC SUB2 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | ZS | Denmark ZT ZU |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1620-01-296-4328
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
