Product Details | FRICTION LINING
1630-00-370-5128 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 59623, 1630-00-370-5128, 00-370-5128, 1630003705128, 003705128
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-370-5128 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 1630-00-370-5128
Cross Reference | NSN 1630-00-370-5128
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 59623 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 1630-00-370-5128
1630-00-370-5733, 1630-00-370-5919, 1630-00-370-5920, 1630-00-370-5928, 1630-00-370-5933
Technical Data | NSN 1630-00-370-5128
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| STRENGTHENING FEATURE | INTERNALLY MOLDED-IN REINFORCEMENT |
| APPLICATION TYPE | DRY |
| LINING STYLE | 4 SEGMENT LUGGED |
| WIDTH | 3.000 INCHES NOMINAL |
| THICKNESS | 0.250 INCHES NOMINAL |
| LUG LENGTH | 0.078 INCHES MINIMUM AND 0.093 INCHES MAXIMUM |
| ARC LENGTH BETWEEN LUG CENTERS | 1.500 INCHES NOMINAL |
| LUG DIAMETER | 0.391 INCHES NOMINAL |
| LUG CENTER TO LINING END DISTANCE | 0.750 INCHES NOMINAL |
| ARC LENGTH | 16.500 INCHES NOMINAL |
| MINOR RADIUS | 6.738 INCHES MINIMUM AND 6.756 INCHES MAXIMUM |
| ATTACHMENT METHOD | RIVETED |

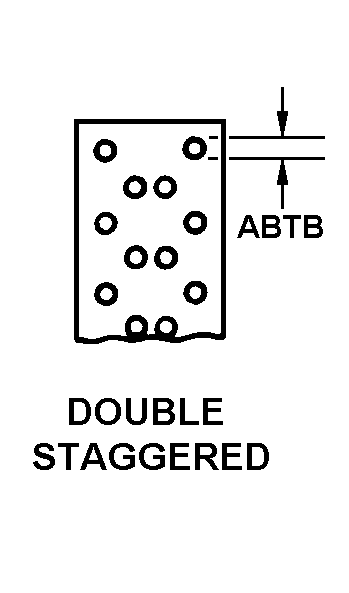

| HOLE ARRANGEMENT STYLE | C11 DOUBLE STAGGERED |
| MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| HOLE TYPE AND QUANTITY | 22 COUNTERBORED AND 22 COUNTERSUNK |
| FEATURES PROVIDED | RIGID FRICTION LINING |
| MANUFACTURERS CODE | 55284 |
| DESIGN CONTROL REFERENCE | 59623 |
