NSN 1630-00-386-8519 147071, 00-386-8519, 003868519
Product Details | FRICTION LINING
1630-00-386-8519 A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION.20716300032Aircraft Wheel and Brake Systems16800049Miscellaneous Aircraft Accessories and Components20300014Deck Machinery25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components30400042Miscellaneous Power Transmission Equipment39500037Winches, Hoists, Cranes, and Derricks
Part Alternates: 147071, 1630-00-386-8519, 00-386-8519, 1630003868519, 003868519
Aircraft Components and Accessories | Aircraft Wheel and Brake Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-386-8519 | 11405 ( LINING, FRICTION ) |
Drawings & Photos | NSN 1630-00-386-8519
Cross Reference | NSN 1630-00-386-8519
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 147071 | 55284 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1630-00-386-8519
Technical Data | NSN 1630-00-386-8519
| Characteristic | Specifications |
|---|---|
| FRICTION LINING MATERIAL | ASBESTOS COMPOSITION |
| FABRICATION METHOD | MOLDED |
| STRENGTHENING FEATURE | INTERWOVEN WIRE |
| APPLICATION TYPE | DRY |
| SURFACE CONDITION AND LOCATION | BOTH SIDES GROUND |

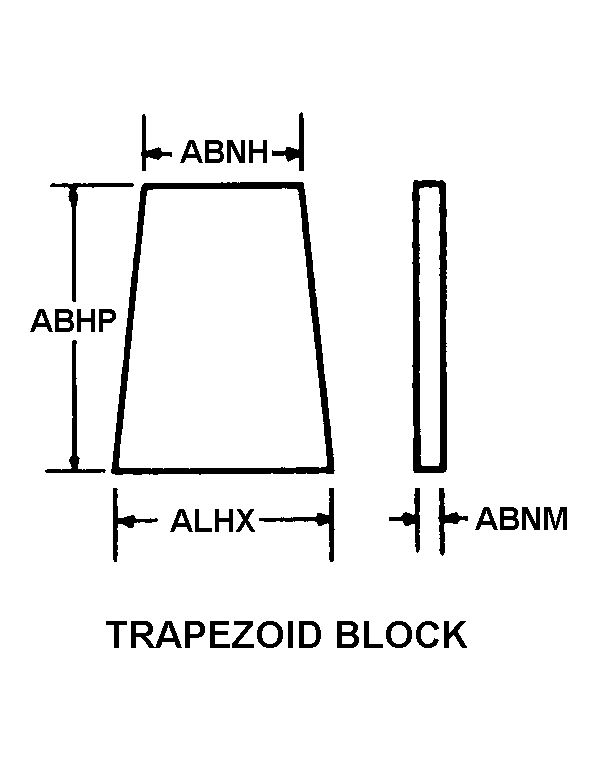

| LINING STYLE | 13 TRAPEZOID BLOCK |
| OVERALL LENGTH | 1.688 INCHES NOMINAL |
| MINOR WIDTH | 1.272 INCHES MINIMUM AND 1.292 INCHES MAXIMUM |
| THICKNESS | 0.238 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| MAJOR WIDTH | 1.864 INCHES MINIMUM AND 1.884 INCHES MAXIMUM |
| ATTACHMENT METHOD | RIVETED |

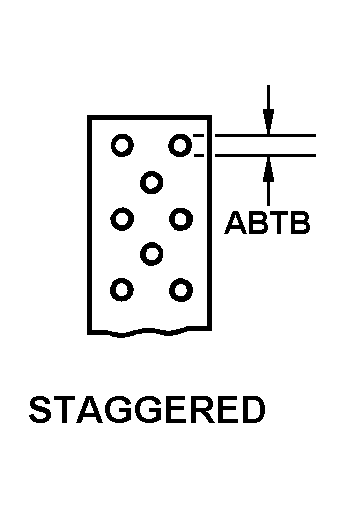

| HOLE ARRANGEMENT STYLE | C8 STAGGERED |
| HOLE TYPE AND QUANTITY | 3 COUNTERBORED |
| FEATURES PROVIDED | RIGID FRICTION LINING |
| III FSC APPLICATION DATA | BRAKE,SEGMENTED ROTOR,AIRCRAFT |
| MANUFACTURERS CODE | 55284 |
| DESIGN CONTROL REFERENCE | 147071 |
Restrictions/Controls & Freight Information | NSN 1630-00-386-8519
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
