NSN 1630-01-417-0153 08801200, 088-01200, 01-417-0153

Product Details | AIRCRAFT WHEEL INSULATOR

1630-01-417-0153

Part Alternates: 08801200, 088-01200, 1630-01-417-0153, 01-417-0153, 1630014170153, 014170153

Aircraft Components and Accessories | Aircraft Wheel and Brake Systems

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
16	28 JUL 1995	01-417-0153	77777 ( )

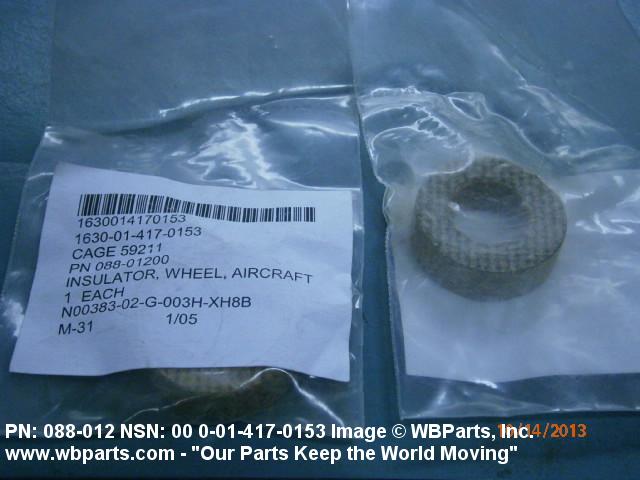

Drawings & Photos | NSN 1630-01-417-0153

Part Number	Request Date	QTY	Origin
1630-01-417-0153	2025-10-297	180	US
1630-01-417-0153	2025-10-297	180	US
088-01200	2025-03-82	46	DIBBS
1630-01-417-0153	2025-02-35	192	United States
08801200	2024-07-207	192	United States
088-01200	2024-03-63	84	DIBBS
088-01200	2022-12-349	42	DIBBS
088-01200	2022-08-226	30	DIBBS
088-01200	2022-05-135	41	DIBBS
1630-01-417-0153	2017-07-199	362	DIBBS
1630-01-417-0153	2017-07-186	362	DIBBS
08801200	2017-03-74	239	United States
08801200	2016-09-258	180	United States
08801200	2016-06-168	12	US
1630-01-417-0153	2016-04-96	382	DIBBS
1630-01-417-0153	2014-10-282	174	DIBBS
08801200	2013-09-261	6	United States
1630-01-417-0153	2008-09-247	133	DIBBS
1630-01-417-0153	2008-08-224	96	DIBBS
1630-01-417-0153	2008-07-191	199	DIBBS
1630-01-417-0153	2008-06-162	143	DIBBS
1630-01-417-0153	2008-04-116	160	DIBBS
1630-01-417-0153	2008-03-87	50	DIBBS
1630-01-417-0153	2008-02-36	56	DIBBS

Cross Reference | NSN 1630-01-417-0153

Part Number	Cage Code	Manufacturer
088-01200	33269	PARKER-HANNIFIN CORPORATION DBA PARKER HANNIFIN CORPORATION
088-01200	59211	PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 1630-01-417-0153

Compare

Related Products | NSN 1630-01-417-0153

1630-01-417-1346, 1630-01-417-1493, 1630-01-417-4073, 1630-01-417-4749, 1630-01-417-7628

Technical Data | NSN 1630-01-417-0153

Characteristic	Specifications

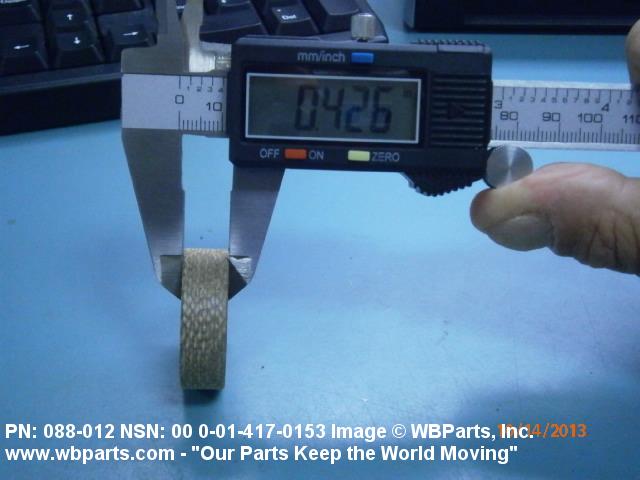

OVERALL LENGTH	0.426 INCHES NOMINAL

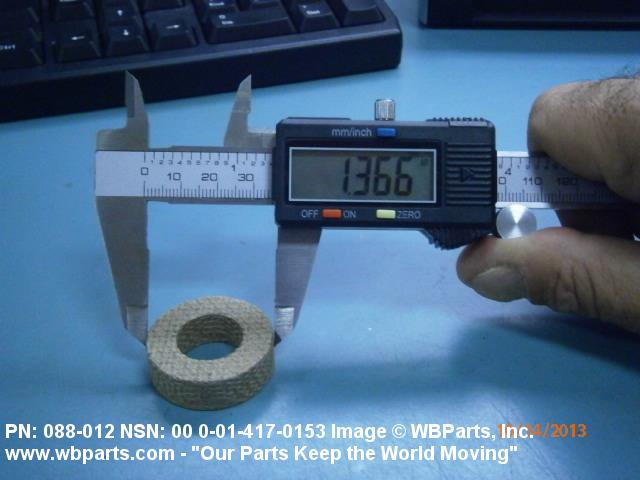

OVERALL DIAMETER	1.367 INCHES NOMINAL

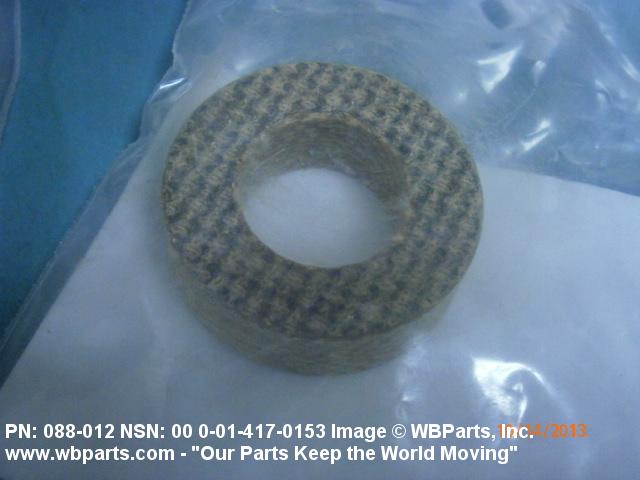

GENERAL CHARACTERISTICS ITEM DESCRIPTION	PYROTEX MATERIAL; 0.726 IN. ID;
III END ITEM IDENTIFICATION	1520-01-106-9519

Restrictions/Controls & Freight Information | NSN 1630-01-417-0153

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	Q	Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	011790	AIRCRAFT PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	671	unknown
Originating Activity Code	AH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 1630-01-417-0153

Army

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
