Product Details | STUD WIRE ROPE TERMINAL
1640-00-132-9195 An item designed for swaging to another item as an end termination. One end is a cylindrical sleeve and the opposite end is an externally threaded fastener whose threaded portion is of one nominal diameter; its unthreaded portion may be of any shape or size. For items specifically designed for aviation, see TERMINAL, WIRE ROPE, STUD, AVIATION.
Part Alternates: 001329195
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-132-9195 | 16287 ( TERMINAL, WIRE ROPE, STUD ) |

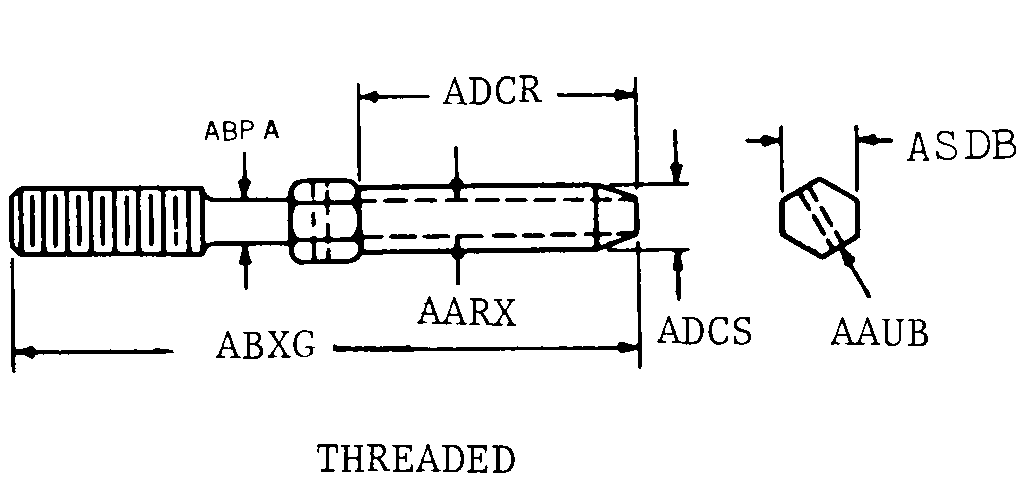

Drawings & Photos | NSN 1640-00-132-9195
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-132-9195
Technical Data | NSN 1640-00-132-9195
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | PASSIVATE |
| STYLE DESIGNATOR | 176 THREADED |
| INSIDE DIAMETER | 0.203 INCHES MINIMUM AND 0.208 INCHES MAXIMUM |
| HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.285 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| OVERALL LENGTH | 4.000 INCHES MINIMUM AND 4.018 INCHES MAXIMUM |
| PLAIN SHANK LENGTH | 1.938 INCHES MINIMUM AND 2.000 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| PLAIN SHANK DIAMETER | 0.354 INCHES MINIMUM AND 0.359 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 0.188 INCHES NOMINAL |
| BREAKING STRENGTH | 4200.0 POUNDS MINIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | A3A |
| THREAD DIRECTION | LEFT-HAND |
| THREAD LENGTH | 1.443 INCHES MINIMUM AND 1.463 INCHES MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21259-6LH |
