NSN 1640-00-277-1387 002771387
Product Details | GROOVE PULLEY

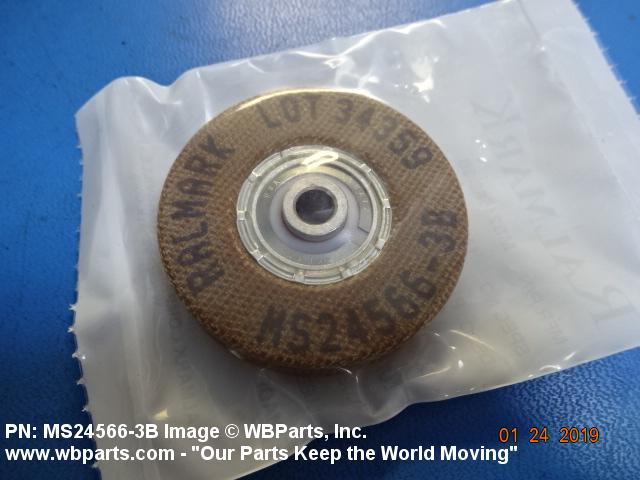

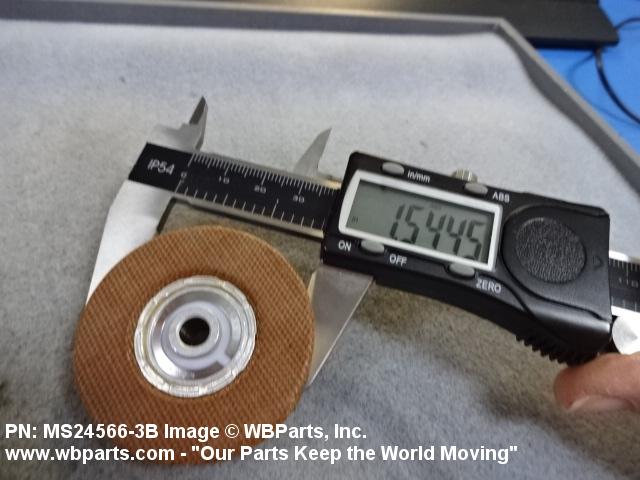

1640-00-277-1387 A pulley with one or more grooved faces or rims of the same diameter. For pulleys encased in a shell or frame, see BLOCK, TACKLE. For items specifically designed for aviation, see PULLEY(1), GROOVE, AVIATION.
Part Alternates: 002771387
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-277-1387 | 08109 ( PULLEY, GROOVE ) |

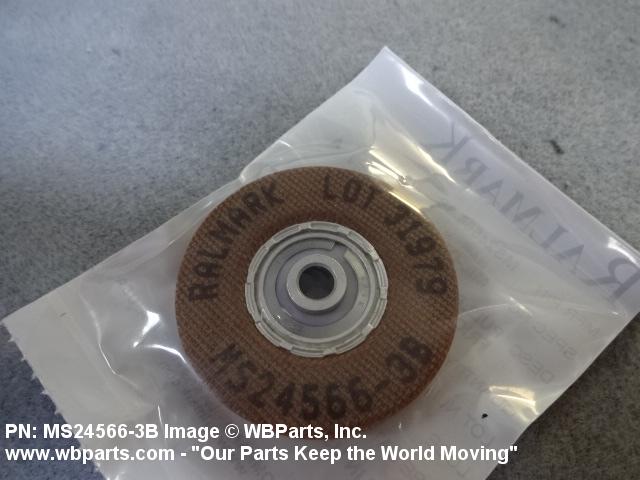

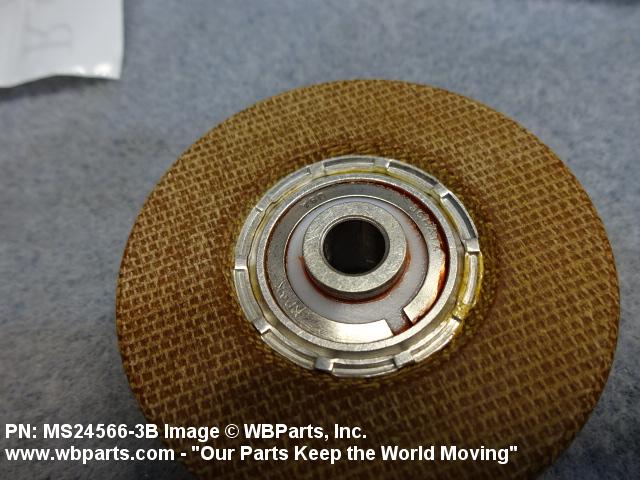

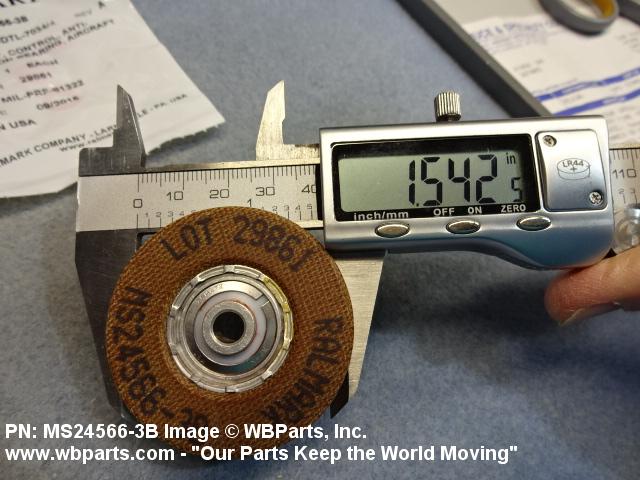

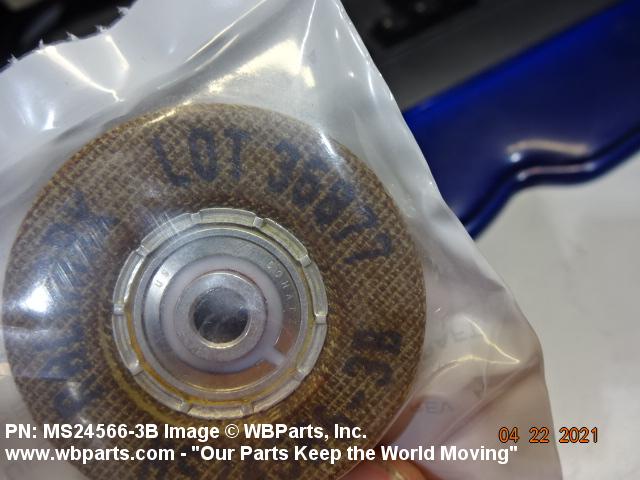

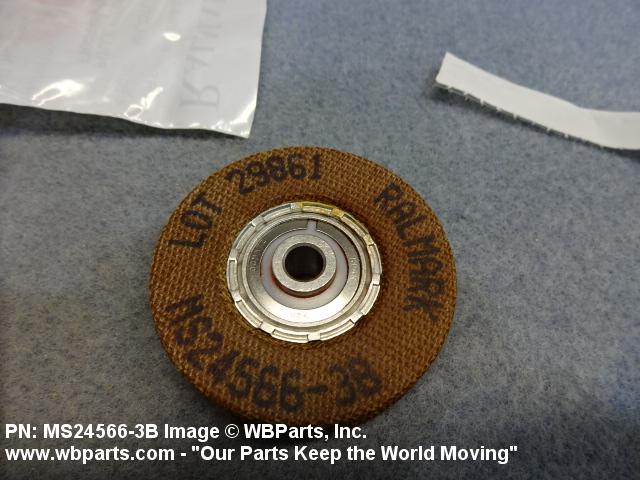

Drawings & Photos | NSN 1640-00-277-1387
Demand History | NSN 1640-00-277-1387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS245663B | 2023-04-110 | 30 | Croatia |
| MS245663B | 2021-07-194 | 16 | US |
| MS245663B | 2015-07-195 | 20 | Ecuador |
| 1640-00-277-1387 | 2015-07-188 | 30 | Australia |
| MS245663B | 2015-04-120 | 6 | Ecuador |
| AN2103A | 2013-01-30 | 4 | US |
| MS245663B | 2013-01-15 | 10 | Switzerland |
| 1640-00-277-1387 | 2011-01-18 | 4 | US |
| AN2103A | 2008-09-258 | 2 | United Kingdom |
| MS245663B | 2008-06-163 | 32 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1640-00-277-1387
Technical Data | NSN 1640-00-277-1387
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A3 PLAIN |

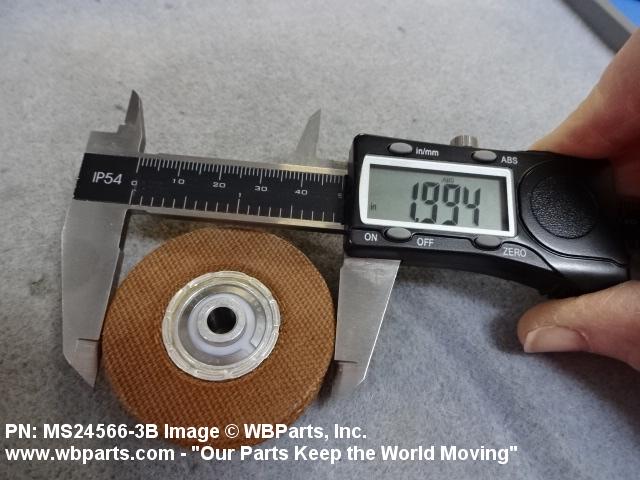

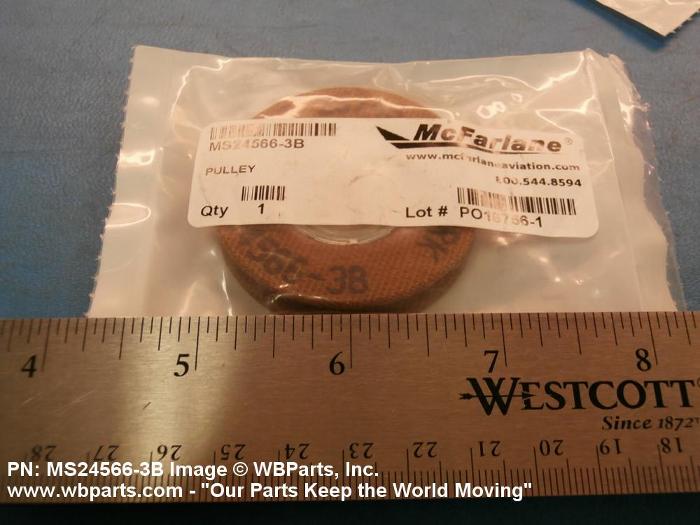

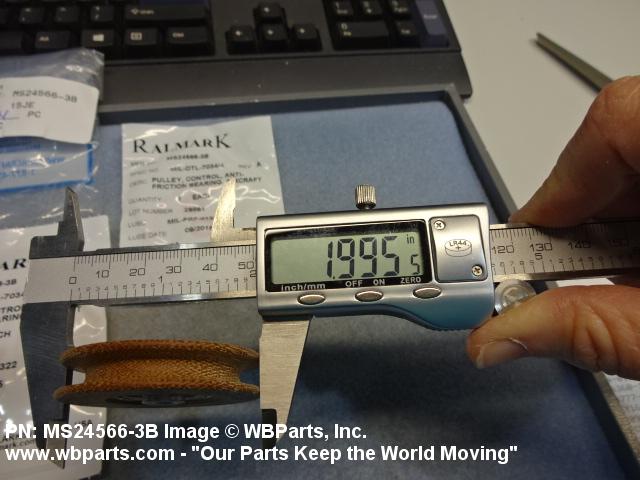

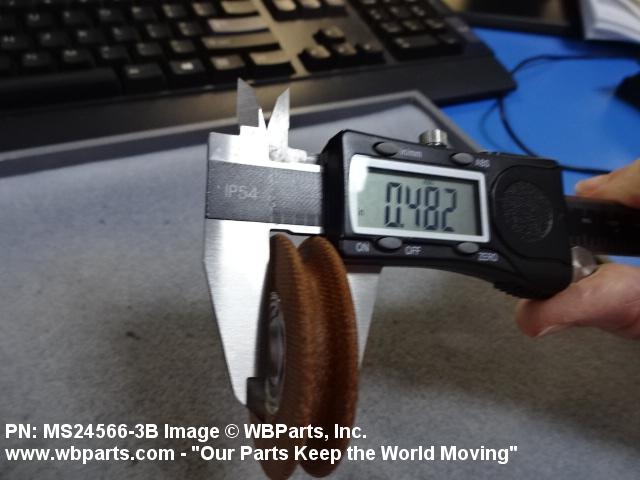

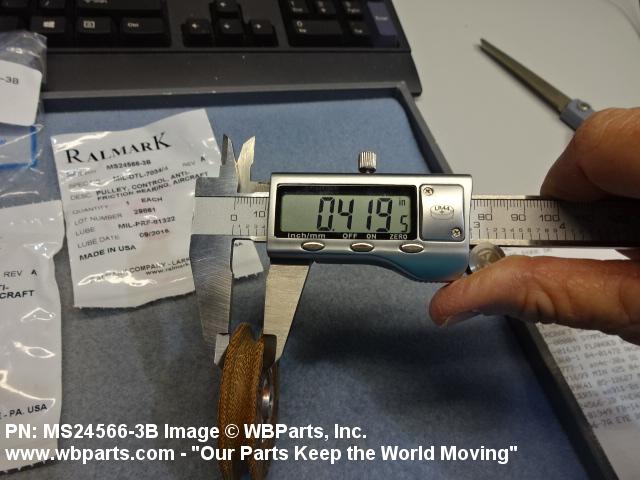

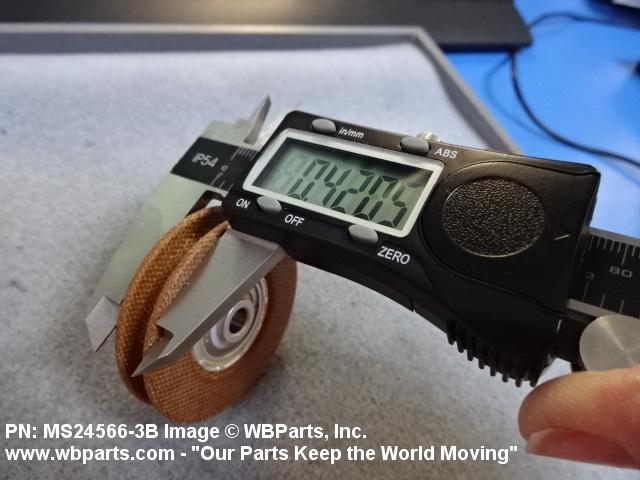

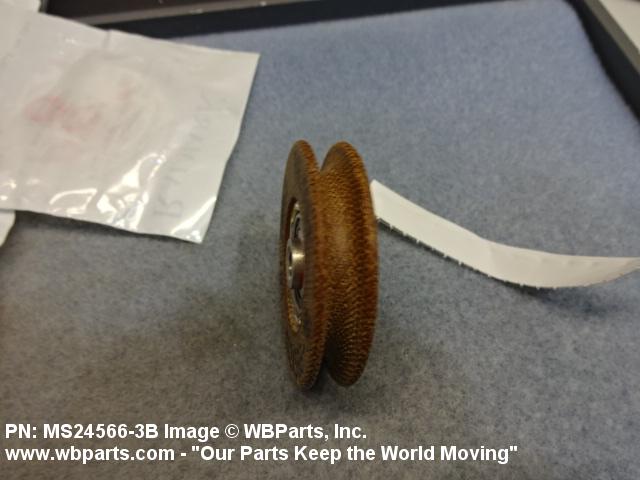

| OUTSIDE DIAMETER | 1.990 INCHES MINIMUM AND 2.010 INCHES MAXIMUM |
| OVERALL LENGTH | 0.479 INCHES MINIMUM AND 0.484 INCHES MAXIMUM |
| PITCH DIAMETER | ANY ACCEPTABLE |
| FACE WIDTH | 0.410 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| HUB END OUTSIDE DIAMETER AND LOCATION | 0.390 INCHES NOMINAL BOTH ENDS |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | 0.029 INCHES MINIMUM BOTH ENDS AND 0.037 INCHES MAXIMUM BOTH ENDS |
| DESIGN FORM | PLAIN |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| MATERIAL AND LOCATION | FABRIC OVERALL |
| GROOVE SHAPE | U |
| GROOVE QUANTITY | 1 |

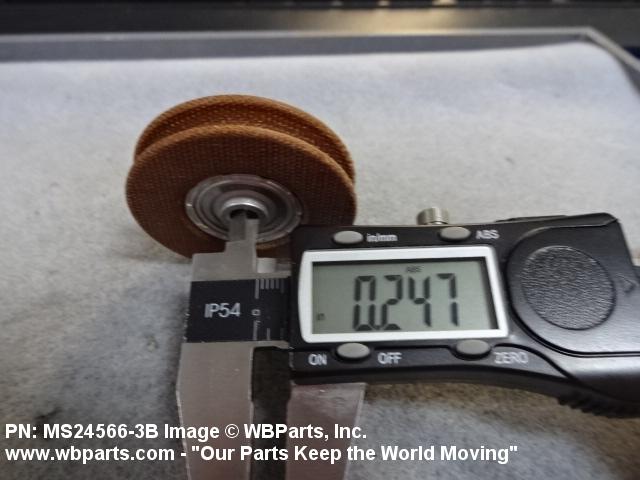

| GROOVE DEPTH | 0.245 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| GROOVE WIDTH | 0.344 INCHES NOMINAL |
| GROOVE RADIUS | 0.109 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| BORE FEATURE | INCLUDED |
| BEARINGS | INCLUDED |
| BEARING TYPE | BALL |
| BEARING QUANTITY | 1 |
| BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.2495 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| BORE LENGTH | 0.479 INCHES MINIMUM AND 0.484 INCHES MAXIMUM |
| COUNTERBORE FEATURE | NOT INCLUDED |
| KEYING FACILITY | NOT INCLUDED |
| SPLIT HUB FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24566-3B |
Restrictions/Controls & Freight Information | NSN 1640-00-277-1387
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
