NSN 1650-00-055-5130 MS287973, MS28797-3, M54983
Product Details | HYDRAULIC ACCUMULATOR
1650-00-055-5130 An accumulator in which liquids are stored under pressure for momentary energy in a hydraulic system. Excludes ACCUMULATOR, HYDRAULIC, SQUIB ACTUATED.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components20900039Miscellaneous Ship and Marine Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25900034Miscellaneous Vehicular Components30400042Miscellaneous Power Transmission Equipment44700016Nuclear Reactors49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: MS287973, MS28797-3, M54983, M5498-3, MILA5498, MIL-A-5498, 0884230301, 08-8423-030-1 , 1356633402M1, 1356-633402M1 , 1356633402M2, 1356-633402M2 , 608163, 60816-3, 1650-00-055-5130, 00-055-5130, 1650000555130, 000555130
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-055-5130 | 20977 ( ACCUMULATOR, HYDRAULIC ) |

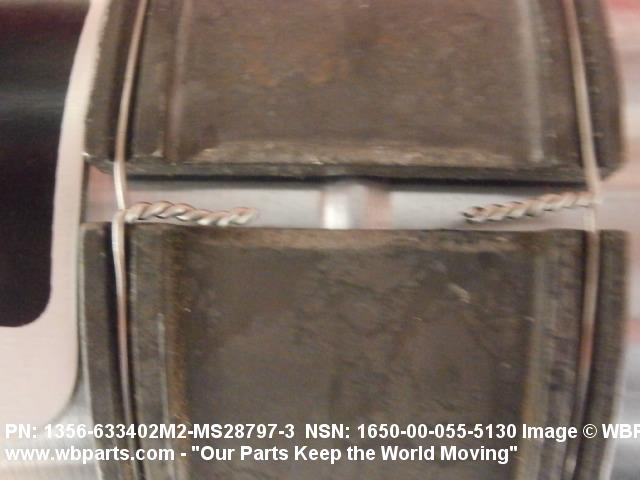

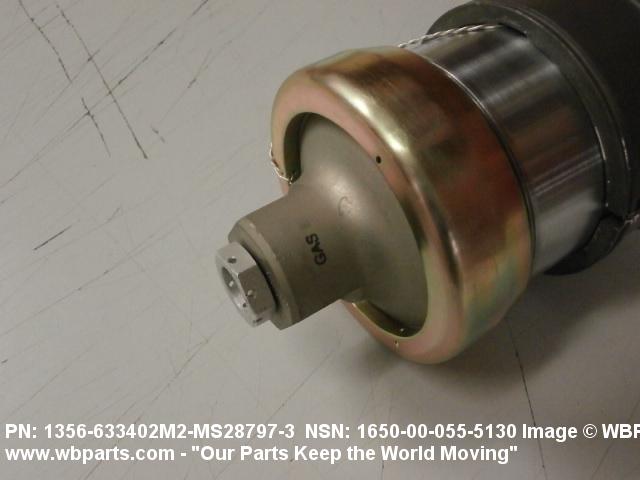

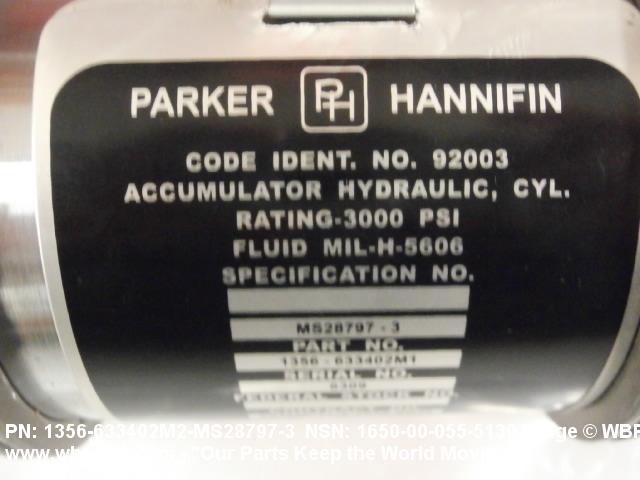

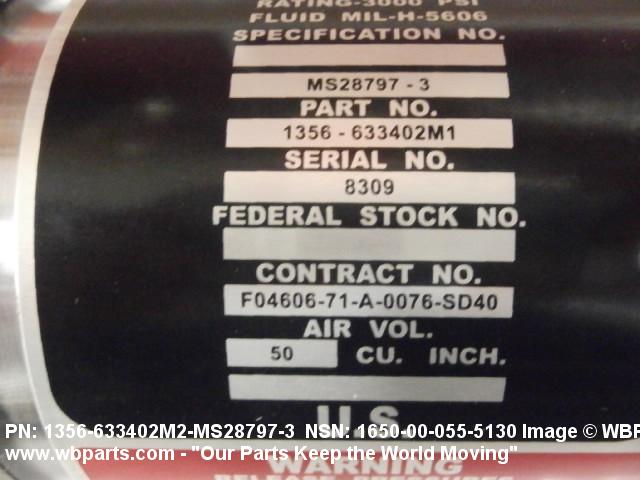

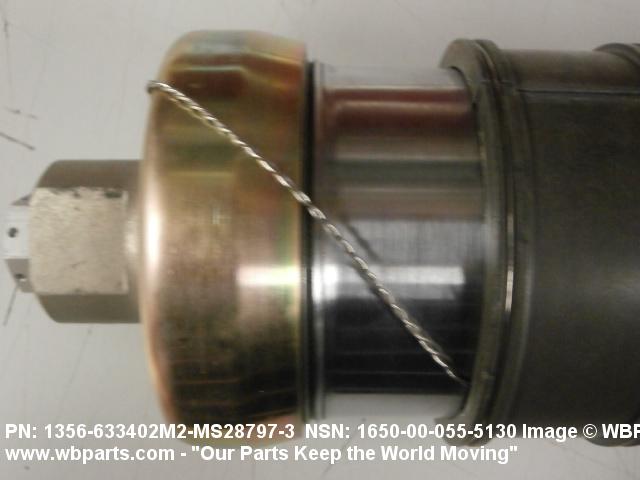

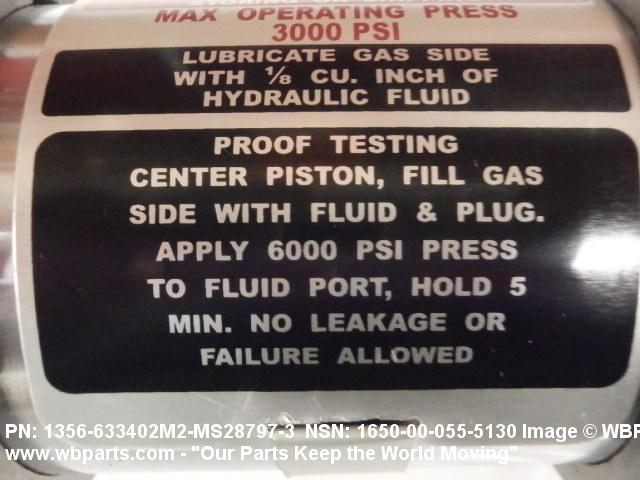

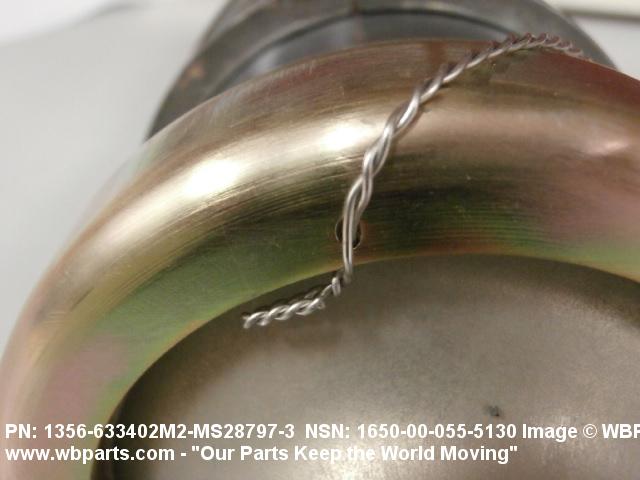

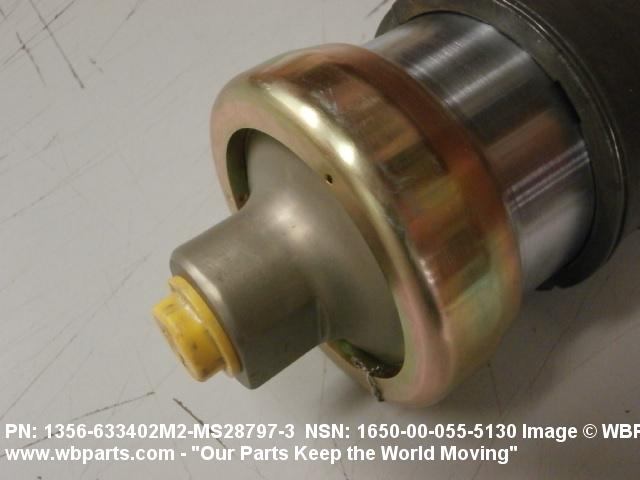

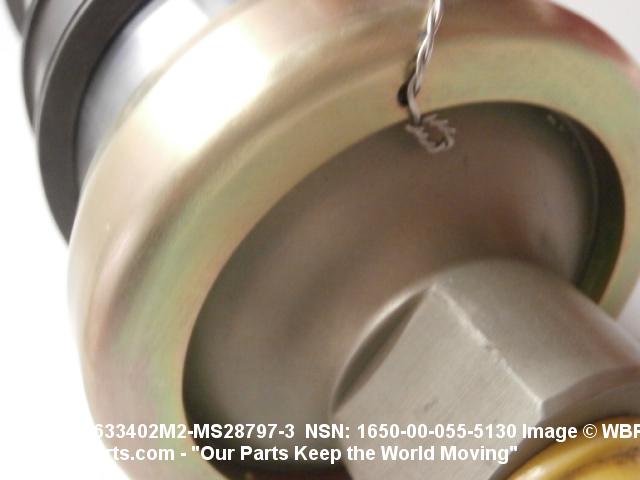

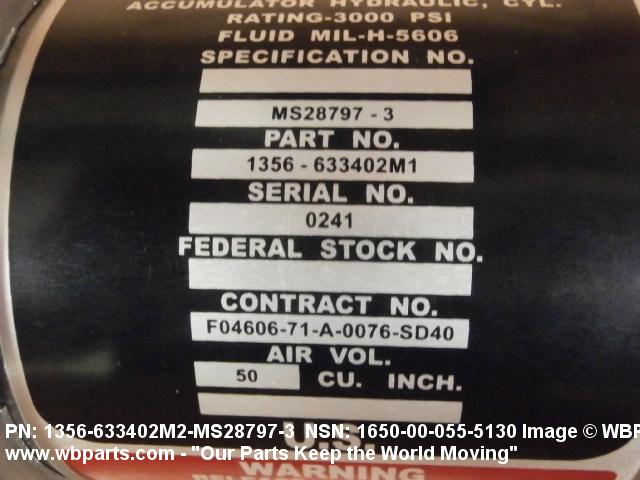

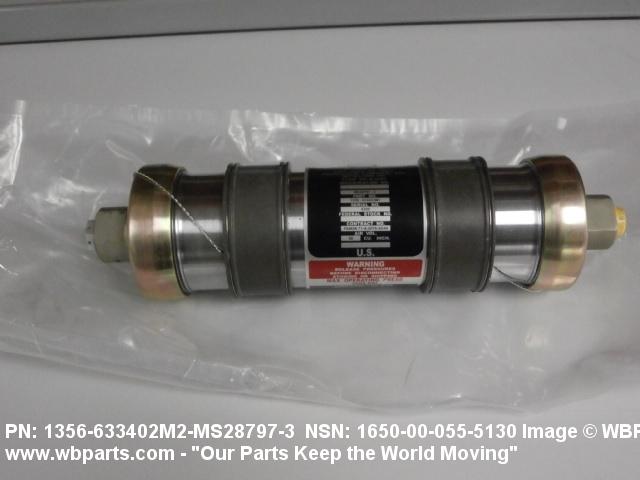

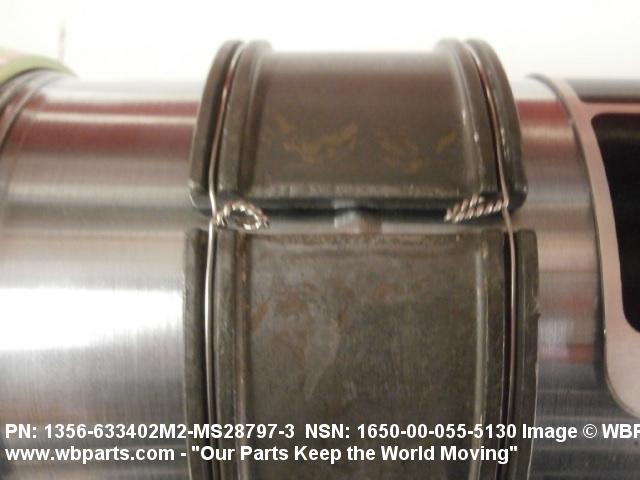

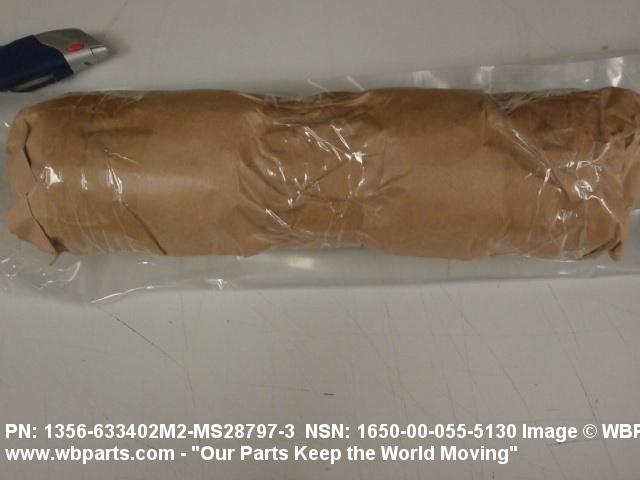

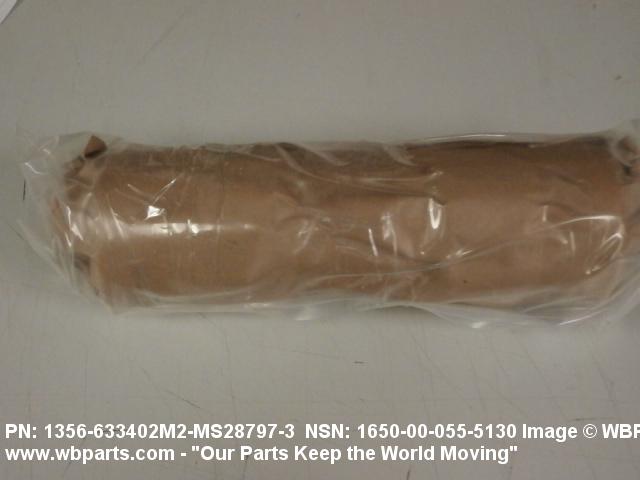

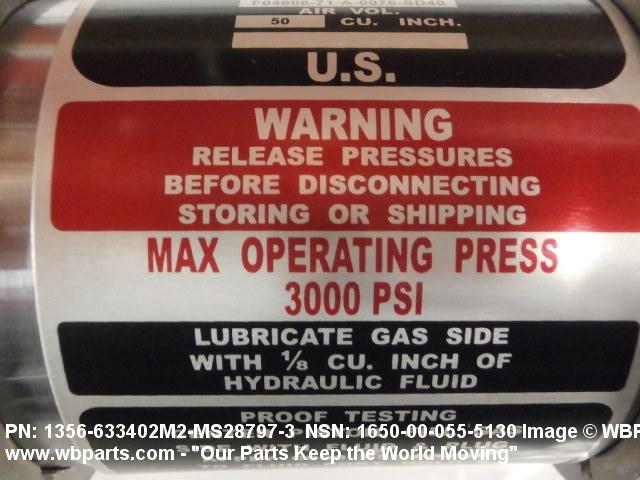

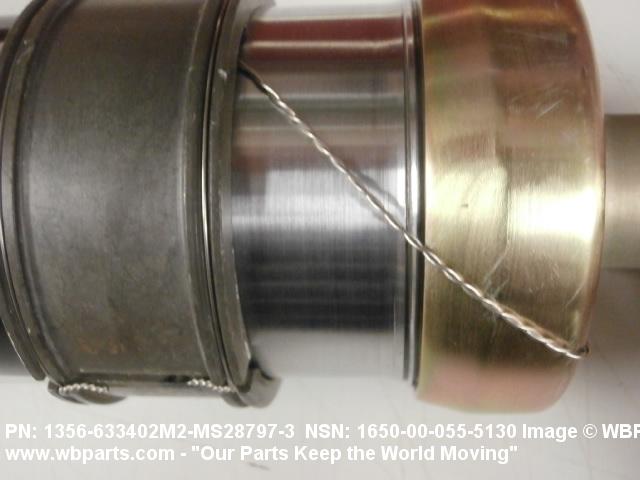

Drawings & Photos | NSN 1650-00-055-5130
Demand History | NSN 1650-00-055-5130
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-055-5130 | 2025-12-337 | 1 | DIBBS |
| 1650-00-055-5130 | 2024-10-298 | 3 | DIBBS |
| 1650-00-055-5130 | 2024-07-185 | 1 | United States |
| 1650-00-055-5130 | 2023-01-11 | 1 | US |
| 1650-00-055-5130 | 2022-02-39 | 8 | US |
| 1650-00-055-5130 | 2021-03-61 | 1 | US |
| 1650-00-055-5130 | 2020-10-279 | 1 | US |
| 1650-00-055-5130 | 2019-07-191 | 10 | AR |
| M54983 | 2019-02-36 | 1 | Brazil |
| 1650-00-055-5130 | 2018-11-331 | 1 | US |
| 1650-00-055-5130 | 2016-02-39 | 5 | DIBBS |
| 1650-00-055-5130 | 2015-12-344 | 2 | DIBBS |
| 1650-00-055-5130 | 2015-10-286 | 1 | US |
| 1650-00-055-5130 | 2015-07-212 | 2 | DIBBS |
| 1650-00-055-5130 | 2015-07-201 | 2 | United States |
| 1650-00-055-5130 | 2015-04-106 | 2 | DIBBS |
| MS287973 | 2012-08-226 | 1 | CA |
| 1650-00-055-5130 | 2011-07-193 | 13 | DIBBS |
| 1650-00-055-5130 | 2011-02-38 | 1 | DIBBS |
| 1650-00-055-5130 | 2011-01-14 | 1 | DIBBS |
| 1650-00-055-5130 | 2010-02-42 | 80 | DIBBS |
| 1650-00-055-5130 | 2010-01-27 | 80 | DIBBS |
| 1650-00-055-5130 | 2009-06-162 | 55 | DIBBS |
| 1650-00-055-5130 | 2009-03-84 | 19 | DIBBS |
| 1650-00-055-5130 | 2008-11-316 | 17 | DIBBS |
| 1650-00-055-5130 | 2008-08-227 | 5 | US |
| 1650-00-055-5130 | 2008-05-133 | 7 | DIBBS |
| 1650-00-055-5130 | 2008-05-130 | 5 | US |
| 1650-00-055-5130 | 2008-02-53 | 70 | DIBBS |
| 1650-00-055-5130 | 2008-01-08 | 23 | DIBBS |
| 1650-00-055-5130 | 2007-10-290 | 47 | DIBBS |
| 1650-00-055-5130 | 2007-10-284 | 48 | DIBBS |
| 1650-00-055-5130 | 2007-07-199 | 42 | DIBBS |
Cross Reference | NSN 1650-00-055-5130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-8423-030-1 | 70236 | TACTAIR FLUID CONTROLS, INC. |
| 1356-633402M1 | 93835 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION |
| 1356-633402M2 | 93835 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC SYSTEMS DIVISION |
| 60816-3 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| M5498-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MIL-A-5498 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS28797-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-055-5130
Related Products | NSN 1650-00-055-5130
Technical Data | NSN 1650-00-055-5130
| Characteristic | Specifications |
|---|---|
| SHAPE | CYLINDRICAL |
| OVERALL LENGTH | 12.500 INCHES NOMINAL |
| OVERALL DIAMETER | 3.810 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 3000.000 POUNDS PER SQUARE INCH |
| CUBIC CAPACITY | 54.000 CUBIC INCHES |
| MAXIMUM FLUID VOLUME | 42.000 CUBIC INCHES |
| SEPARATOR TYPE | PISTON |
| MATERIAL | STEEL, CORROSION RESISTING |
| PORT SCREW THREAD DIAMETER | 0.438 INCHES MINIMUM AND 1.063 INCHES MAXIMUM |
| PORT SCREW THREAD QUANTITY PER INCH | 20.000 AND 16.000 |
| PORT SCREW THREAD SERIES DESIGNATOR | UNF AND UNF |
| THREAD CLASS | 3 AND 3 |
| BLEEDER OPENING | NOT INCLUDED |
| III FSC APPLICATION DATA | HYDRAULIC SYSTEM,AIRCRAFT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-5498 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M5498-3 |
Restrictions/Controls & Freight Information | NSN 1650-00-055-5130
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-00-055-5130
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | W | RESTRICTED REQUISITIONING-SPECIAL INSTRUCTIONS APPLY (NON-STOCKED ITEMS) Indicates stock number has been assigned to a generic item for use in bid invitations, allowance lists, etc., against which no stocks are ever recorded. Requisitions will be submitted only in accordance with IMM/Service requisitioning procedures. (This code will be used, when applicable, in conjunction with Phrase Code S (Stock as NSN(s)). It is considered applicable for use when a procurement source(s) becomes available. The Phrase Code S and the applicable stock as? NSN(s) will then be applied for use in stock, store and issue actions.) |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | W | RESTRICTED REQUISITIONING-SPECIAL INSTRUCTIONS APPLY (NON-STOCKED ITEMS) Indicates stock number has been assigned to a generic item for use in bid invitations, allowance lists, etc., against which no stocks are ever recorded. Requisitions will be submitted only in accordance with IMM/Service requisitioning procedures. (This code will be used, when applicable, in conjunction with Phrase Code S (Stock as NSN(s)). It is considered applicable for use when a procurement source(s) becomes available. The Phrase Code S and the applicable stock as? NSN(s) will then be applied for use in stock, store and issue actions.) |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
