NSN 1650-00-540-0162 MF30391325ZE5, MF30-3913-25ZE5, 171232
Product Details | HYDRAULIC MOTOR
1650-00-540-0162 A mechanical device designed to convert the energy of fluid pressure to rotary motion.20316500058Aircraft Hydraulic, Vacuum, and De-icing System Components25400035Vehicular Furniture and Accessories43200020Power and Hand Pumps
Part Alternates: MF30391325ZE5, MF30-3913-25ZE5, 171232, 695427, 151488, 1650-00-540-0162, 00-540-0162, 1650005400162, 005400162
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-540-0162 | 06128 ( MOTOR, HYDRAULIC ) |

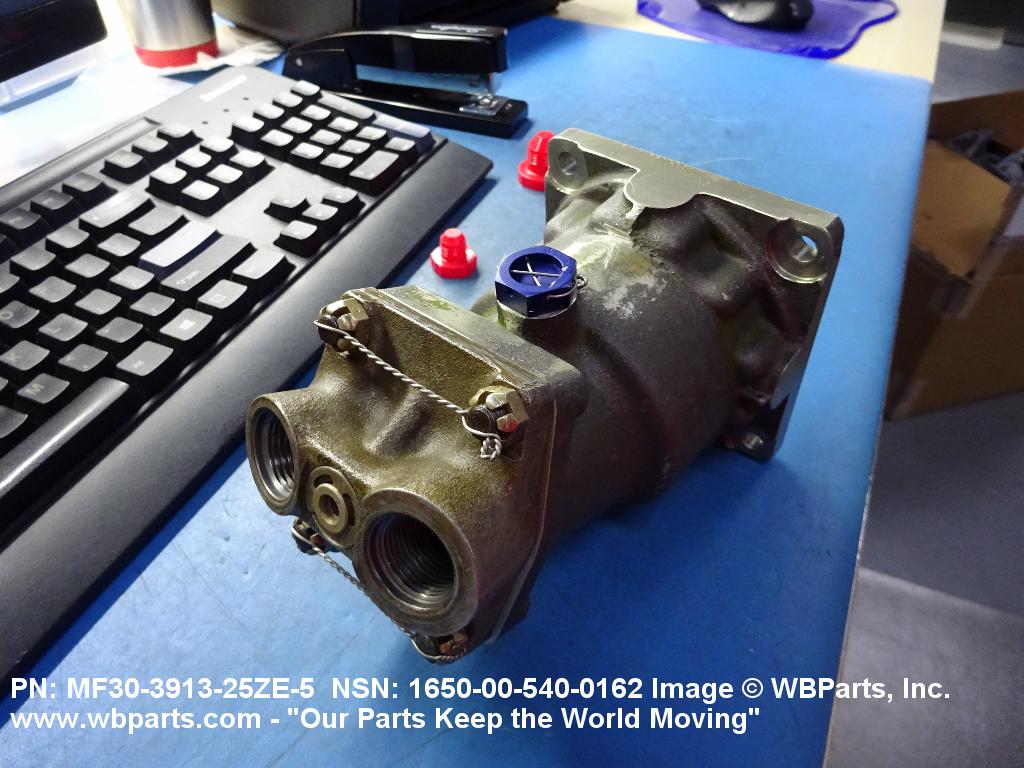

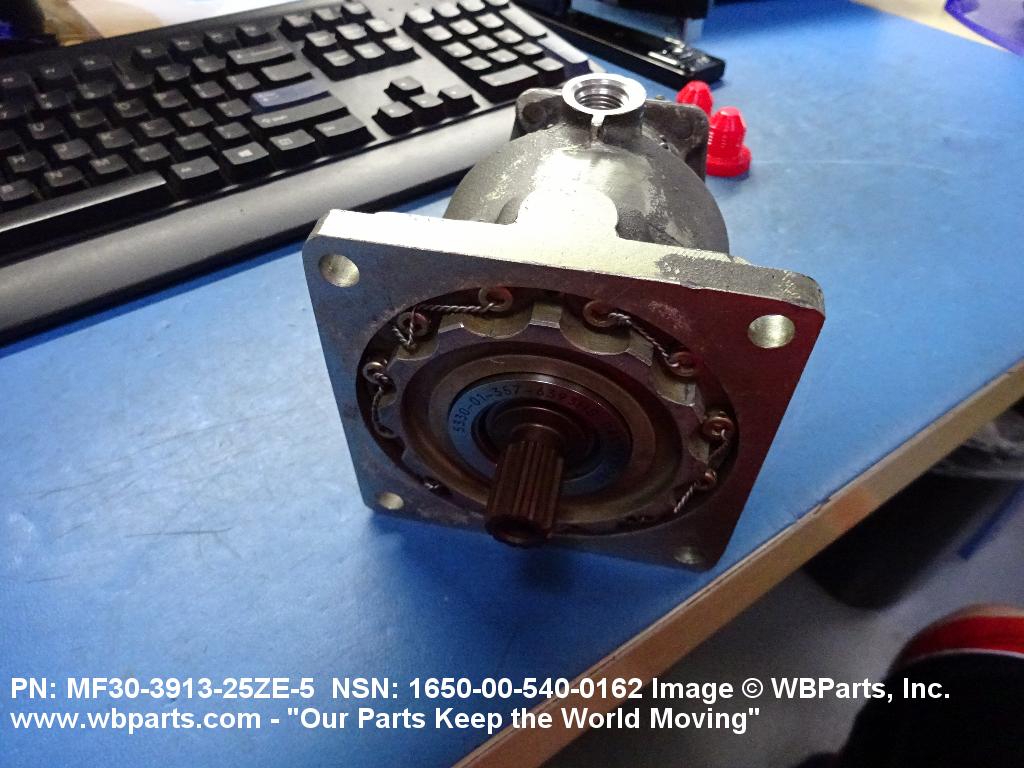

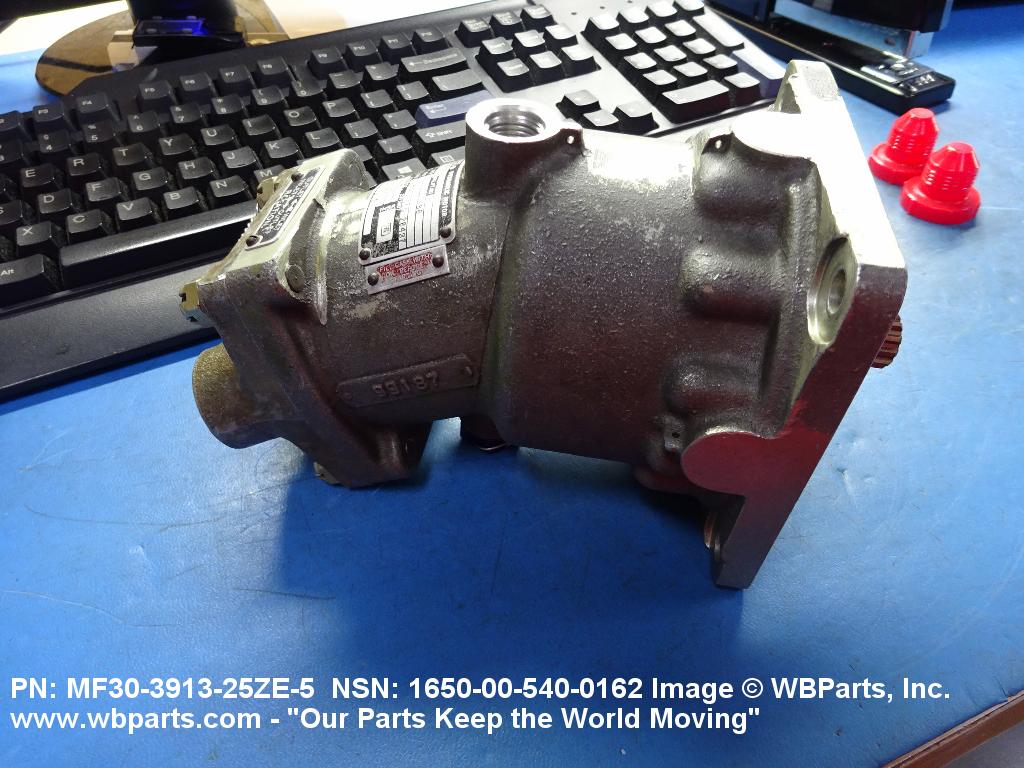

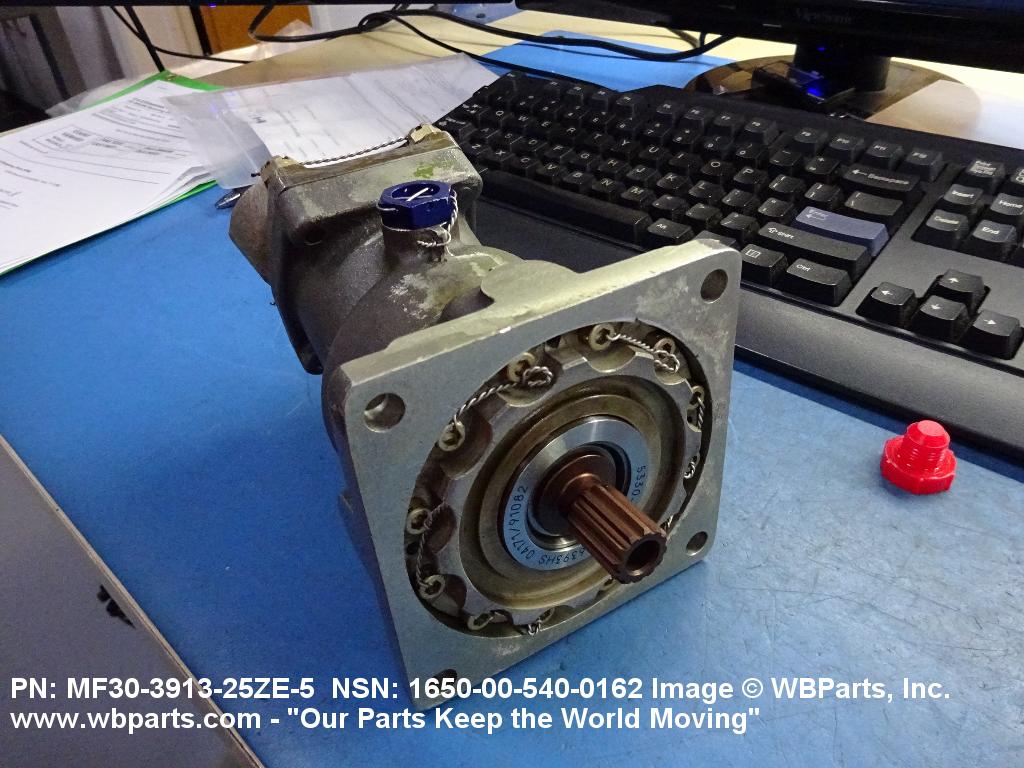

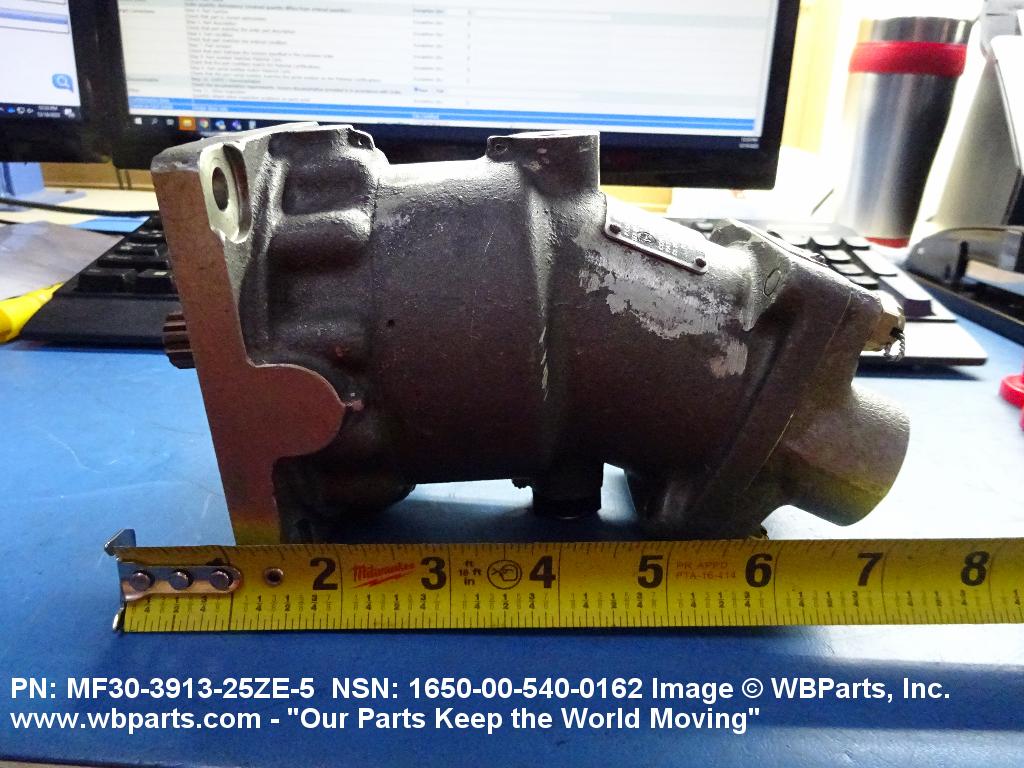

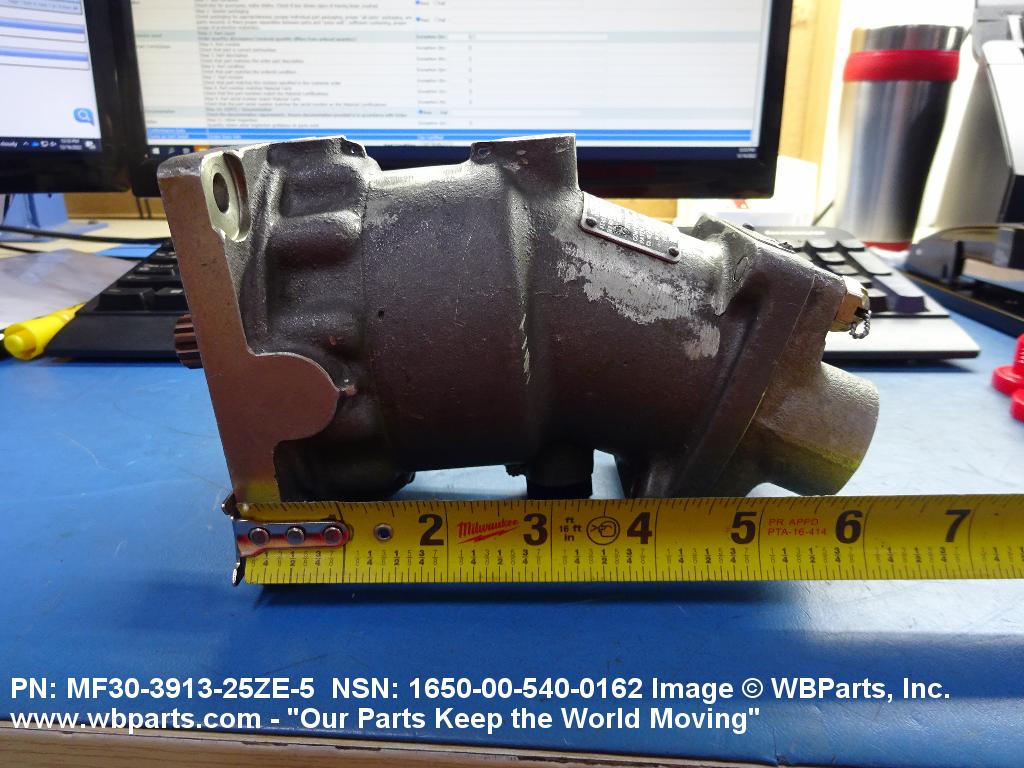

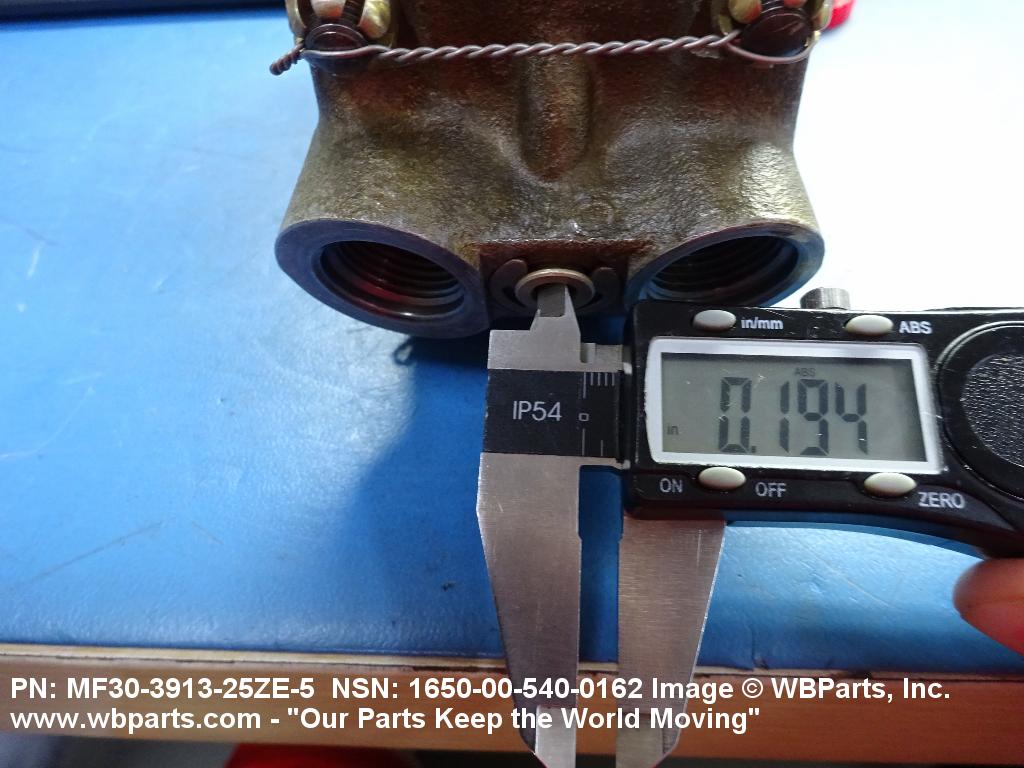

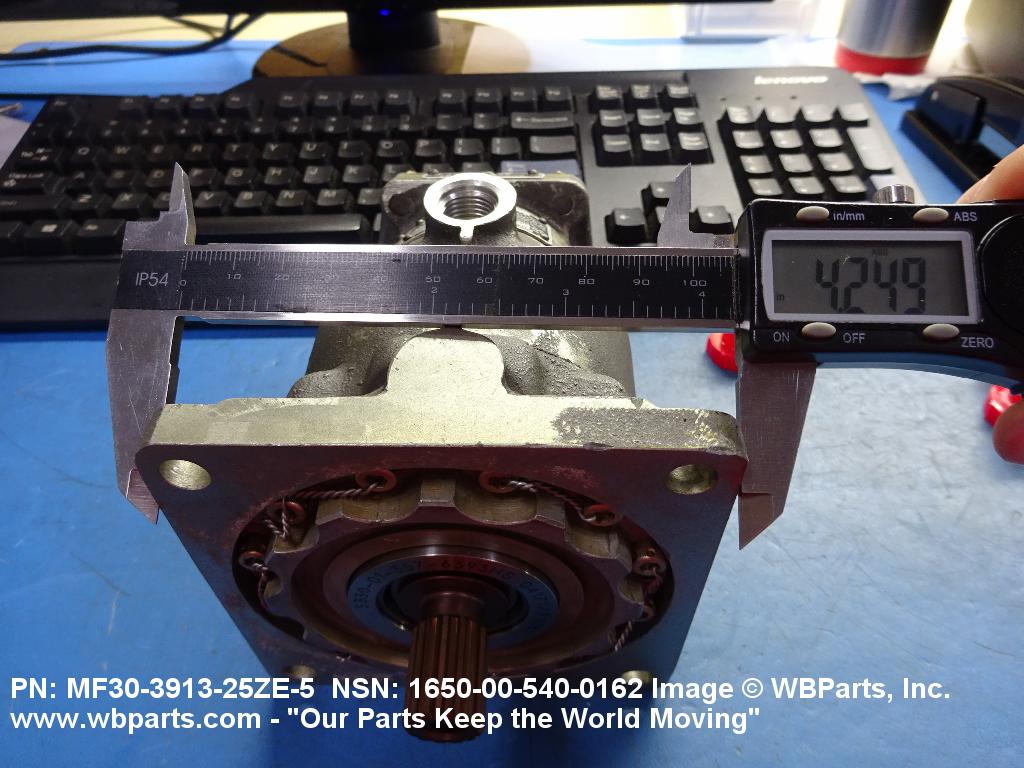

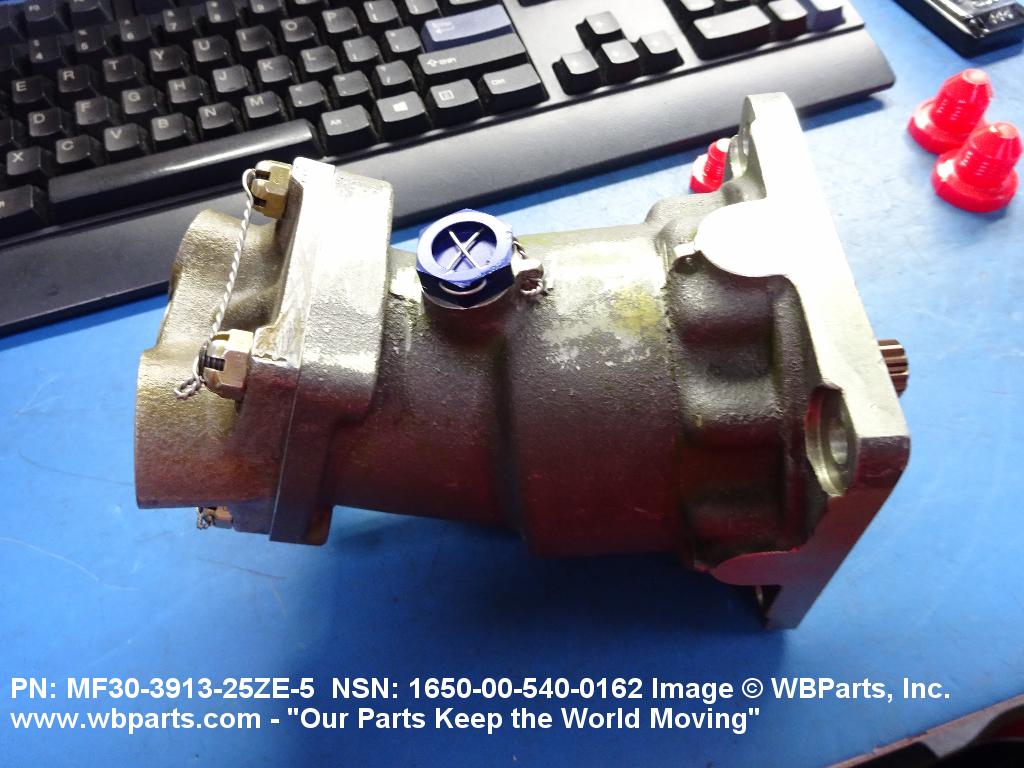

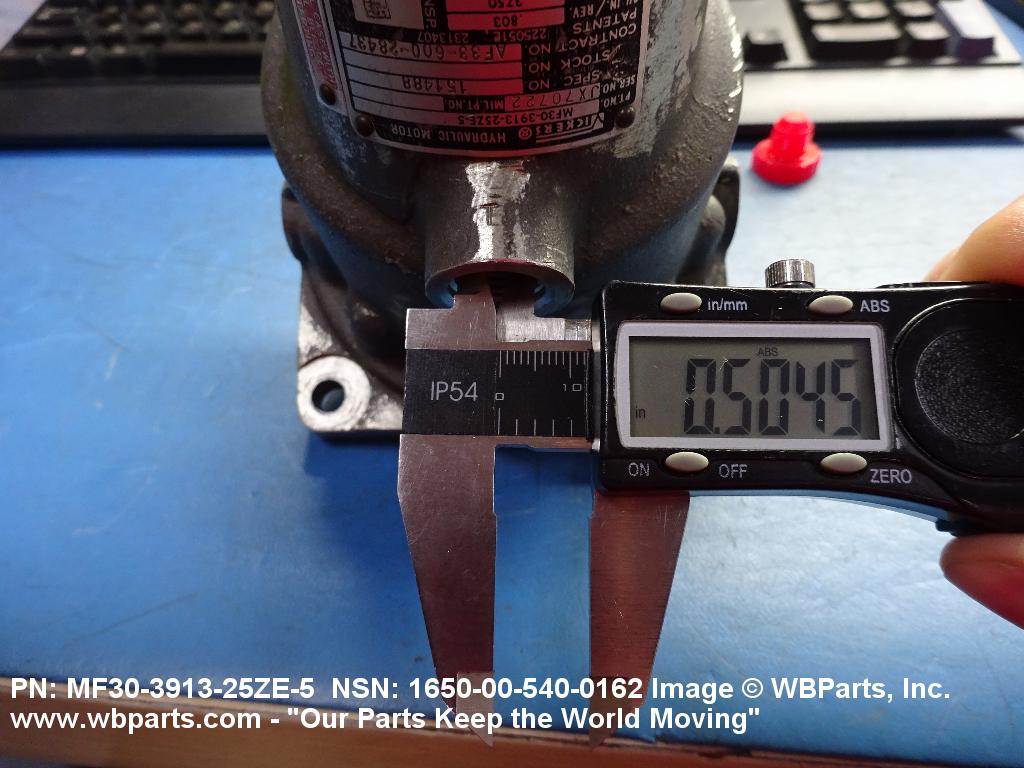

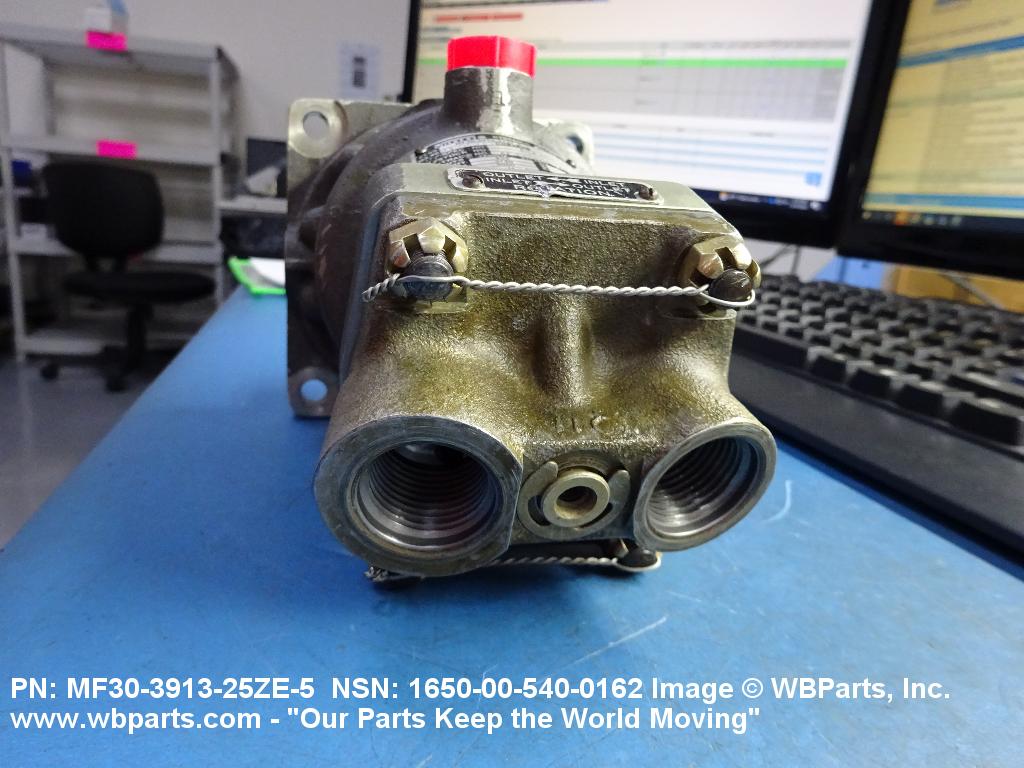

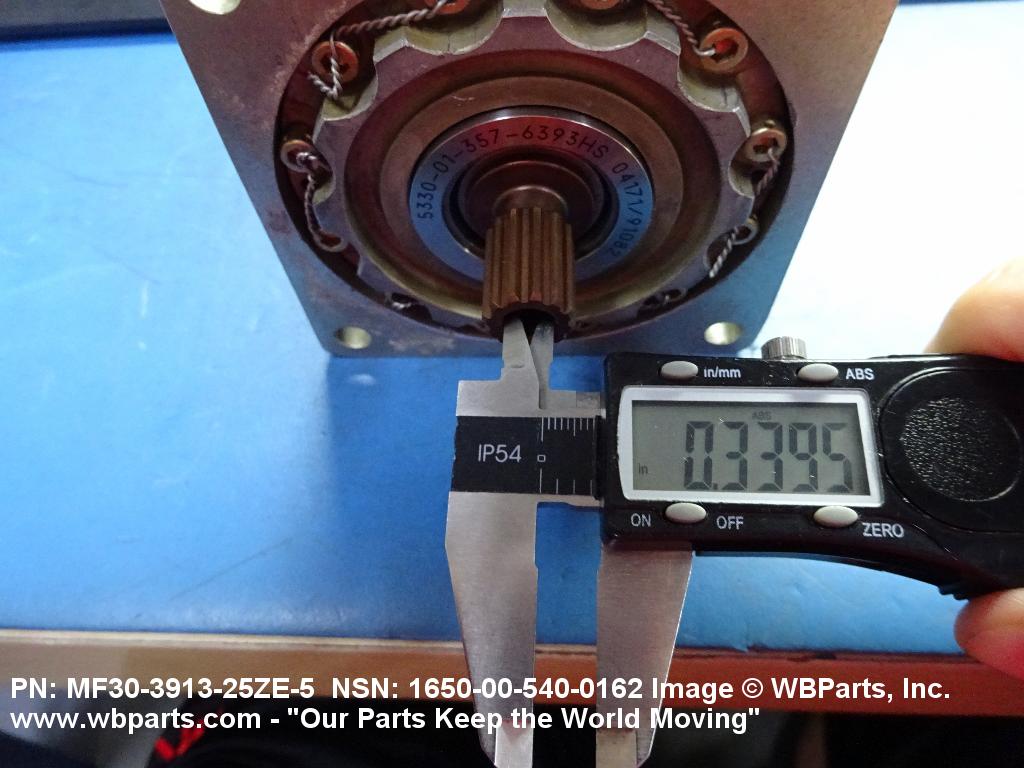

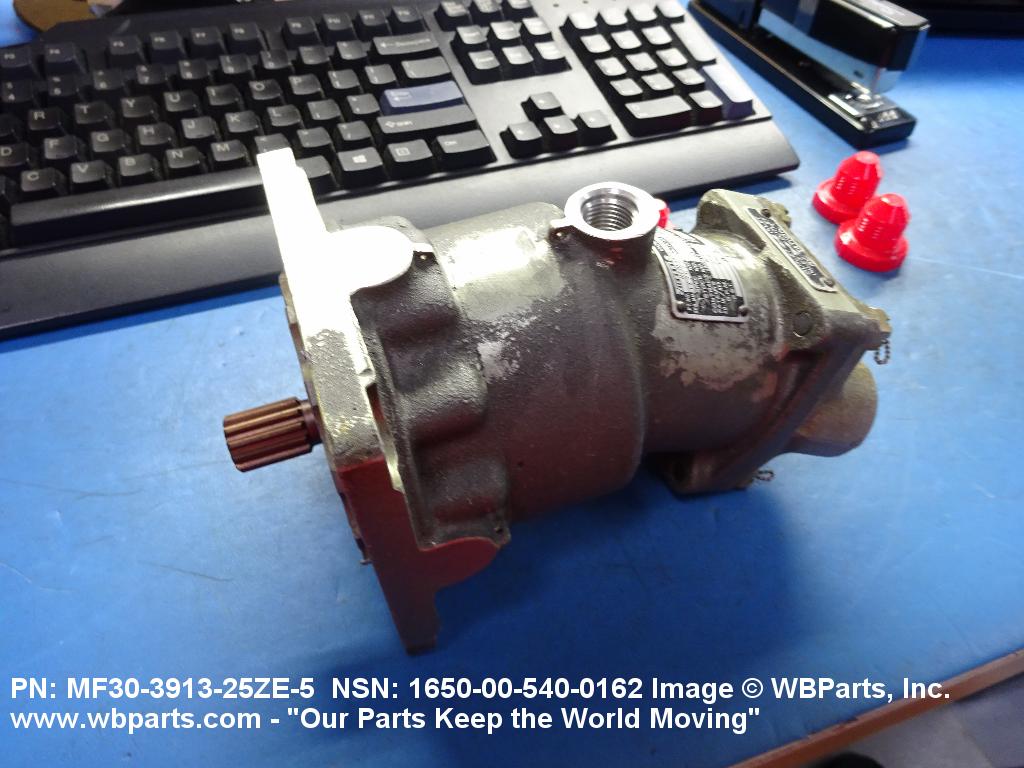

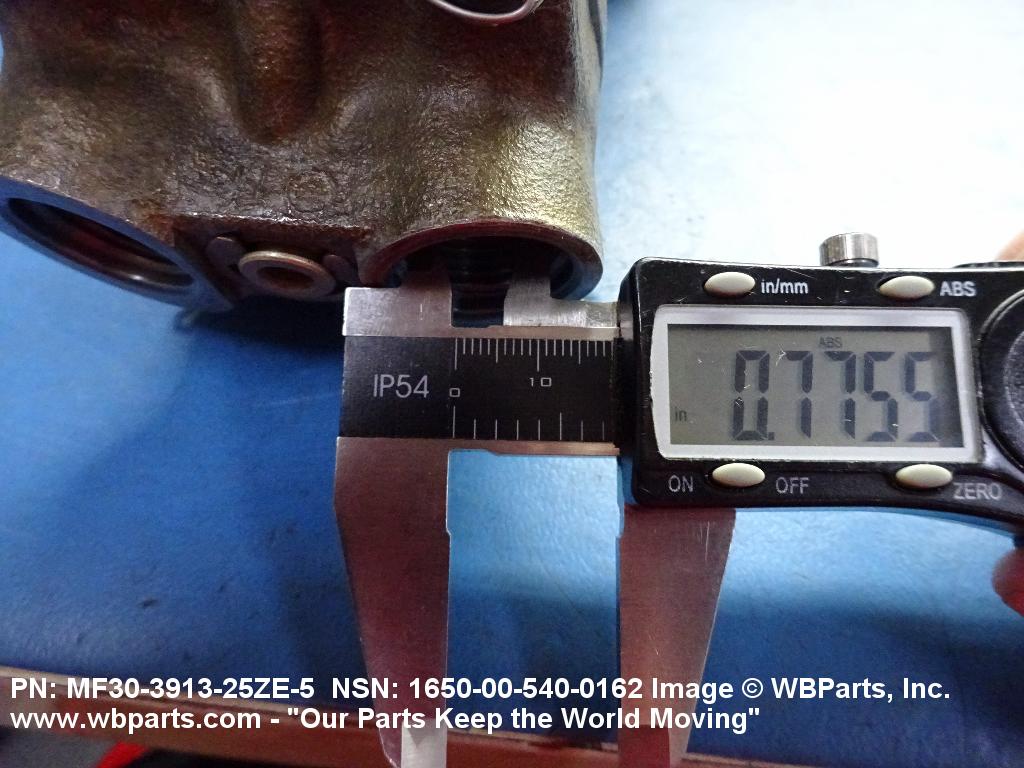

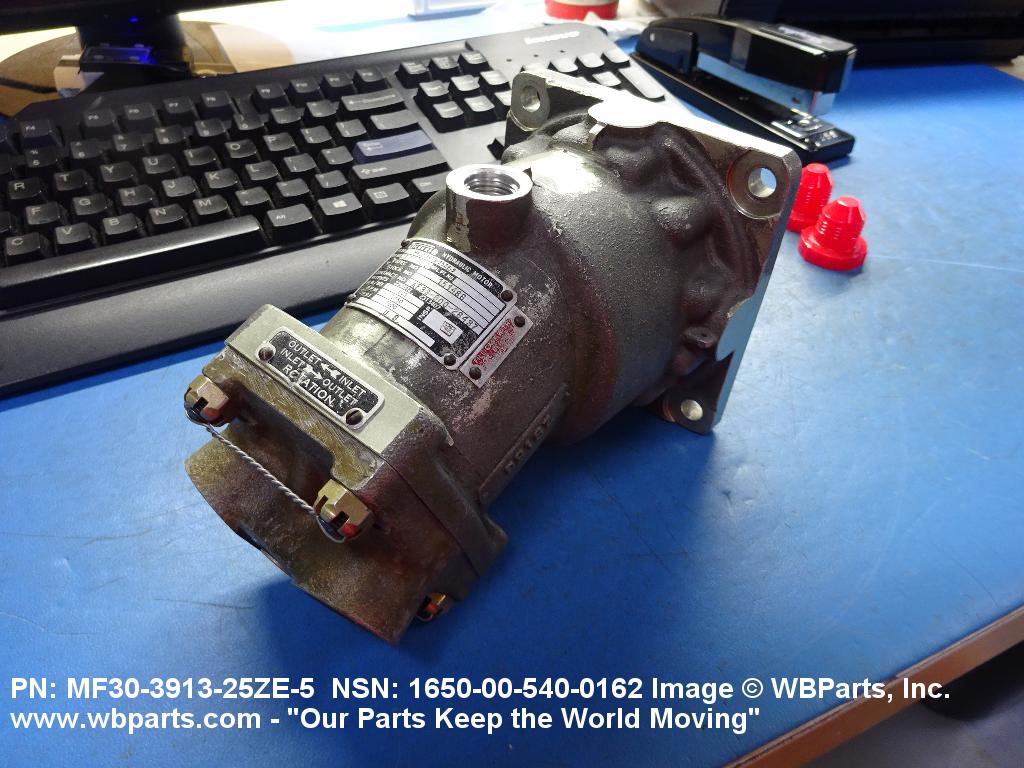

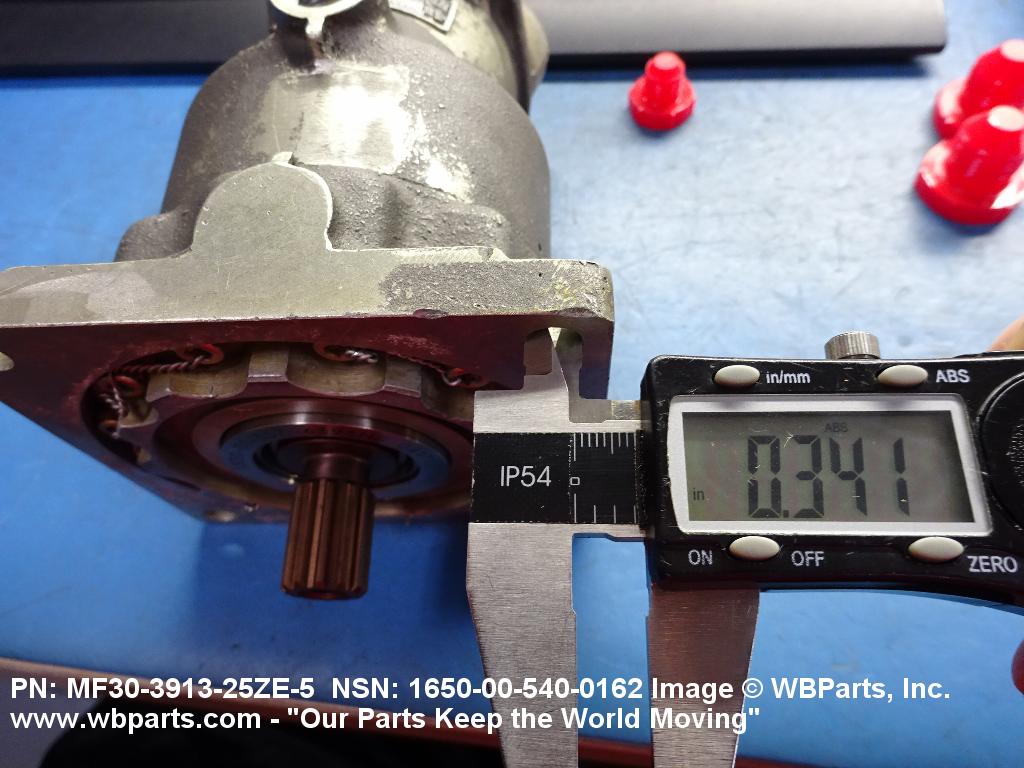

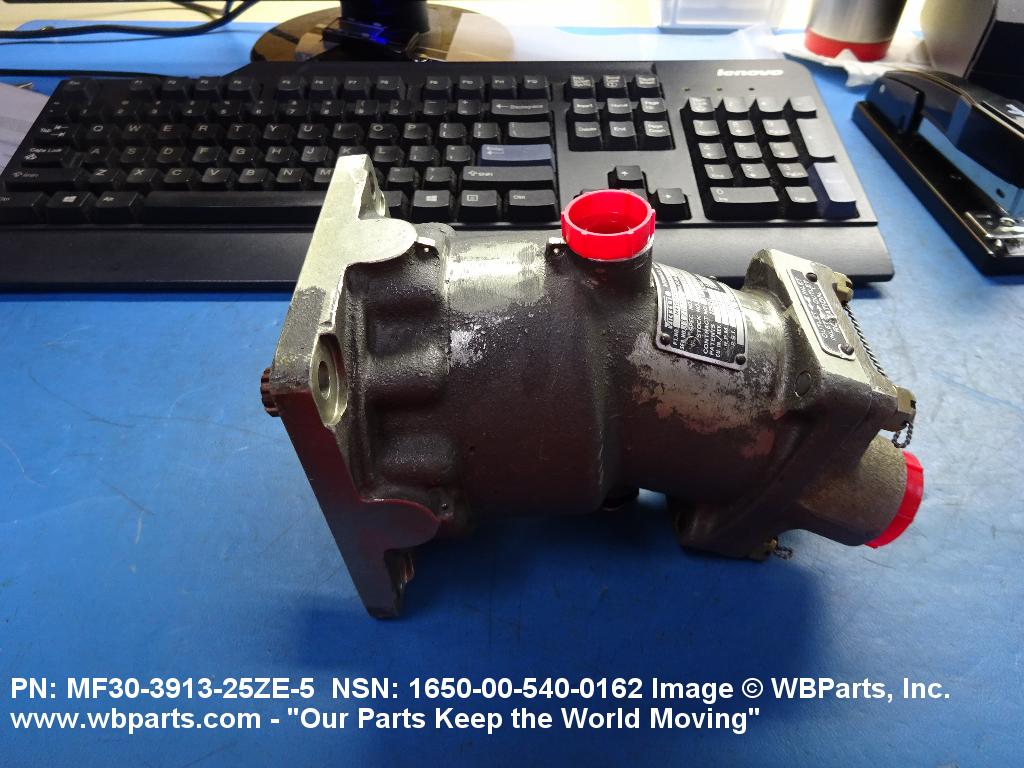

Drawings & Photos | NSN 1650-00-540-0162
Demand History | NSN 1650-00-540-0162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-540-0162 | 2022-12-343 | 1 | us |
| MF30391325ZE5 | 2017-09-248 | 2 | US |
| 1650-00-540-0162 | 2011-08-214 | 1 | Indonesia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-540-0162
Related Products | NSN 1650-00-540-0162
Technical Data | NSN 1650-00-540-0162
| Characteristic | Specifications |
|---|---|
| DISPLACEMENT TYPE | CONSTANT |
| SHAFT ROTATION DIRECTION | CLOCKWISE AND COUNTERCLOCKWISE |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 3750.0 |
| MAXIMUM WORKING PRESSURE RATING AT SPECIFIED TEMP RANGE | 3000 PSI AT MINUS 65 DEG F TO PLUS 275 DEG F |
| TORQUE LOAD RATING | 383.0 INCH-POUNDS |
| CONSTANT DISPLACEMENT PER REVOLUTION | 0.950 CUBIC INCHES |
| CONNECTION TYPE | DRAIN INLET OUTLET |
| CONNECTION QUANTITY | 2 AND 1 AND 1 |
| CONNECTION GOVERNMENT SPEC/STD | AND10050-6,AND10050-10 AND AND10050-10 |
| CONNECTION DESIGN | THREADED AND THREADED AND THREADED |
| THREAD SIZE | 0.563-18 AND 0.875-14 AND 0.875-14 |
| SCREW THREAD SERIES DESIGNATOR | UNF AND UNF AND UNF |
| THREAD LOCATION | INTERNAL AND INTERNAL AND INTERNAL |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND AND RIGHT-HAND |
| DRIVE SHAFT TYPE | SPLINED, INVOLUTE EXTERNAL |
| SPLINE QUANTITY | 12 |
| SPLINE MAJOR DIAMETER | 0.636 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 0.536 INCHES NOMINAL |
| SPLINE PITCH | 20/40 |
| PITCH DIAMETER | 0.600 INCHES NOMINAL |
| SPLINE PRESSURE ANGLE IN DEG | 30.0 |
| SPLINE LENGTH | 0.813 INCHES NOMINAL |
| DRIVE SHAFT GOVERNMENT STANDARD | AND10261 |
| SHAFT PROTRUSION LENGTH | 1.125 INCHES NOMINAL |
| MOUNTING TYPE | FLANGE |
| MOUNTING GOVERNMENT STANDARD | AND10261 |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING BOLT HOLE SPACING | 3.536 IN. BY 3.536 IN. C TO C |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
| HOUSING MATERIAL | ALUMINUM ALLOY |
| HOUSING SURFACE TREATMENT | ANODIZED |
| III FSC APPLICATION DATA | AIRCRAFT HYDRAULIC SYSTEM |
| MANUFACTURERS CODE | 62983 |
| DESIGN CONTROL REFERENCE | MF30-3913-25ZE5 |
Restrictions/Controls & Freight Information | NSN 1650-00-540-0162
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1650-00-540-0162
Air Force
Navy
Coast Guard| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | LC | CARGO/TRANSPORTAIRCRAFT(C130) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | R | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
