NSN 1650-00-640-8490 MS287005, MS28700-5, MILA5498
Product Details | HYDRAULIC ACCUMULATOR
1650-00-640-8490 An accumulator in which liquids are stored under pressure for momentary energy in a hydraulic system. Excludes ACCUMULATOR, HYDRAULIC, SQUIB ACTUATED.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components20900039Miscellaneous Ship and Marine Equipment25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25900034Miscellaneous Vehicular Components30400042Miscellaneous Power Transmission Equipment44700016Nuclear Reactors49200058Aircraft Maintenance and Repair Shop Specialized Equipment
Part Alternates: MS287005, MS28700-5, MILA5498, MIL-A-5498, 08-8425-010, 10087005, 1008700-5, 10105305, 1010530-5, 1356542905, 1356-542905, 1650-00-640-8490, 00-640-8490, 1650006408490, 088425010, 006408490
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-640-8490 | 20977 ( ACCUMULATOR, HYDRAULIC ) |

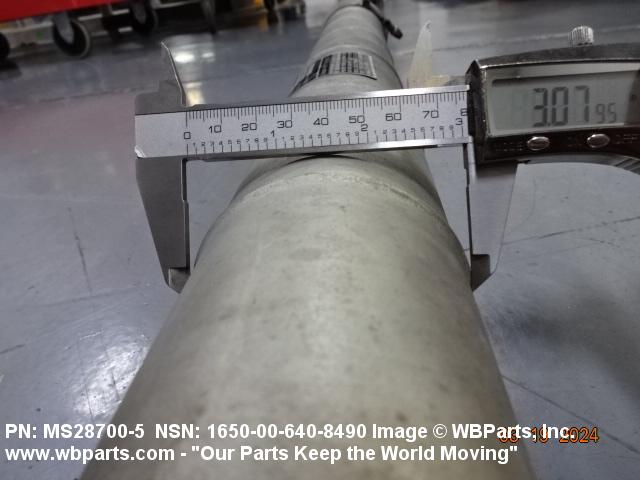

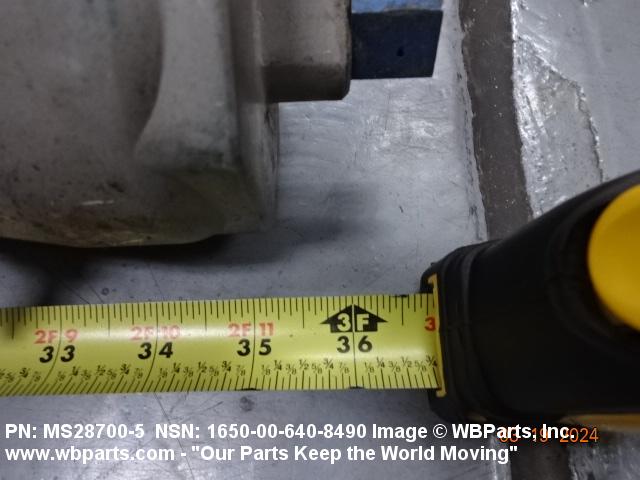

Drawings & Photos | NSN 1650-00-640-8490
Demand History | NSN 1650-00-640-8490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1650-00-640-8490 | 2025-09-261 | 10 | DIBBS |
| 1650-00-640-8490 | 2025-07-205 | 29 | DIBBS |
| 1650-00-640-8490 | 2025-05-138 | 11 | DIBBS |
| 1650-00-640-8490 | 2025-02-50 | 8 | Saudi Arabia |
| 1650-00-640-8490 | 2025-02-49 | 10 | DIBBS |
| 1650-00-640-8490 | 2024-08-231 | 2 | DIBBS |
| 1650-00-640-8490 | 2024-02-33 | 1 | United States |
| 1650-00-640-8490 | 2019-02-36 | 1 | Brazil |
| 1650-00-640-8490 | 2018-12-352 | 15 | Germany |
| 1650-00-640-8490 | 2016-09-257 | 1 | DIBBS-RFPs |
| 1650-00-640-8490 | 2016-02-54 | 58 | DIBBS |
| 1650-00-640-8490 | 2016-01-15 | 49 | DIBBS |
| 1650-00-640-8490 | 2015-11-309 | 2 | DIBBS |
| 1650-00-640-8490 | 2015-08-235 | 3 | DIBBS |
| 1650-00-640-8490 | 2015-08-217 | 5 | DIBBS |
| 1650-00-640-8490 | 2015-01-19 | 4 | United States |
| 1650-00-640-8490 | 2014-08-240 | 1 | DIBBS-RFPs |
| 1650-00-640-8490 | 2014-04-104 | 10 | DIBBS |
| 1650-00-640-8490 | 2014-03-90 | 9 | DIBBS |
| 1650-00-640-8490 | 2013-05-125 | 12 | DIBBS |
| 1650-00-640-8490 | 2011-11-334 | 2 | United States |
| 1650-00-640-8490 | 2011-06-171 | 13 | DIBBS |
| 1650-00-640-8490 | 2011-06-167 | 1 | United States |
| 1650-00-640-8490 | 2011-06-167 | 1 | United States |
| 1650-00-640-8490 | 2011-02-48 | 6 | DIBBS |
| 1650-00-640-8490 | 2011-02-32 | 2 | DIBBS |
| 1650-00-640-8490 | 2011-02-32 | 2 | DIBBS |
| 1650-00-640-8490 | 2010-12-354 | 2 | DIBBS |
| 1650-00-640-8490 | 2010-07-211 | 15 | DIBBS |
| 1650-00-640-8490 | 2010-06-172 | 15 | DIBBS |
| 1650-00-640-8490 | 2010-04-111 | 2 | DIBBS |
| 1650-00-640-8490 | 2010-03-78 | 2 | DIBBS |
| 1650-00-640-8490 | 2010-03-75 | 2 | DIBBS |
| 1650-00-640-8490 | 2010-02-50 | 2 | DIBBS |
| 1650-00-640-8490 | 2008-08-217 | 24 | DIBBS |
| MS287005 | 2007-10-291 | 9 | US |
| 1650-00-640-8490 | 2007-09-247 | 29 | DIBBS |
| 1650-00-640-8490 | 2007-08-243 | 29 | DIBBS |
Cross Reference | NSN 1650-00-640-8490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-8425-010 | 70236 | TACTAIR FLUID CONTROLS, INC. |
| 08-8425-010 | 81616 | YORK INDUSTRIES, INC. |
| 1008700-5 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1010530-5 | 0HWN8 | ALLIED SIGNAL AEROSPACE CO GARRET GENERAL AVIATION SERVICE DIV |
| 1356-542905 | 6T460 | PARKER HANNIFIN CORP AEROSPACE GROUP |
| MIL-A-5498 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS28700-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1650-00-640-8490
Related Products | NSN 1650-00-640-8490
Technical Data | NSN 1650-00-640-8490
| Characteristic | Specifications |
|---|---|
| SHAPE | CYLINDRICAL |
| OVERALL LENGTH | 36.100 INCHES NOMINAL |
| OVERALL DIAMETER | 3.810 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 3000.000 POUNDS PER SQUARE INCH |
| CUBIC CAPACITY | 216.000 CUBIC INCHES |
| SEPARATOR TYPE | PISTON |
| MATERIAL | ANY ACCEPTABLE |
| PORT SCREW THREAD DIAMETER | 0.750 INCHES NOMINAL |
| PORT SCREW THREAD QUANTITY PER INCH | 16.000 |
| PORT SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3 |
| BLEEDER OPENING | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-5498 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS28700-5 |
Restrictions/Controls & Freight Information | NSN 1650-00-640-8490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 125850 | MUFFLER/EXHAUST SYS/PIPE/ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
