NSN 1650-00-942-6935 S1111216, S11112-16, 00-942-6935
Product Details | PISTON RING
1650-00-942-6935 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: S1111216, S11112-16, 1650-00-942-6935, 00-942-6935, 1650009426935, 009426935
Aircraft Components and Accessories | Aircraft Hydraulic, Vacuum, and De-icing System Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 23 DEC 1965 | 00-942-6935 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 1650-00-942-6935
Demand History | NSN 1650-00-942-6935
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S11112-16 | 2013-08-229 | 150 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1650-00-942-6935
Technical Data | NSN 1650-00-942-6935
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| CROSS-SECTIONAL SHAPE STYLE | A1 PLAIN RECTANGULAR, STRAIGHT FACE |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1250 INCHES NOMINAL |
| OVERALL WIDTH | 0.0600 INCHES NOMINAL |

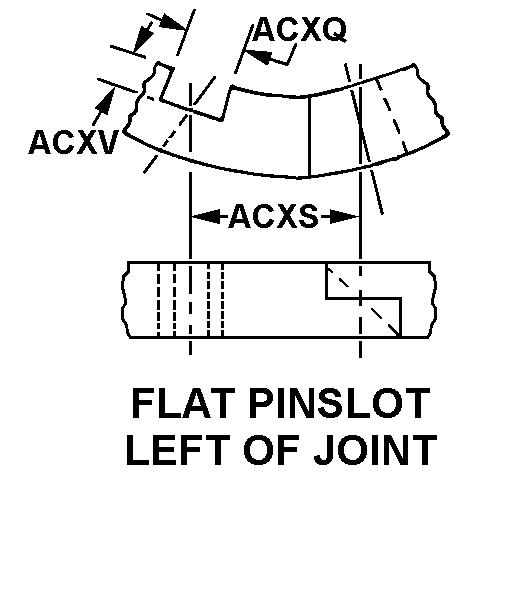

| PIN HOLE STYLE | 12 FLAT PINSLOT LEFT OF JOINT |
| PIN HOLE SLOT LENGTH | 0.094 INCHES NOMINAL |
| DISTANCE FROM PIN HOLE CENTERLINE TO RING JOINT CENTERLINE | 0.781 INCHES NOMINAL |
| RING WALL THICKNESS PIN HOLE DEPTH | 0.047 INCHES NOMINAL |
| STANDARD BORE DIAMETER | 0.745 INCHES |
| III FSC APPLICATION DATA | PISTON,HYDRAULIC MOTOR PUMP |
| MANUFACTURERS CODE | 09257 |
| DESIGN CONTROL REFERENCE | S11112-16 |
Restrictions/Controls & Freight Information | NSN 1650-00-942-6935
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 187645 | TRUNKS:CARRYING CASES/BAGS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 741 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
