Product Details | CONNECTOR PARACHUTE LINK
1670-00-217-2421 A metallic device used as a removeable connector for a parachute harness and canopy.
Part Alternates: MS220021, MS22002-1, P33341, PS220021, PS22002-1, PS22002D , IACA12437, IAC-A12437, 205068, 10324756, 1670-00-217-2421, 00-217-2421, 1670002172421, 002172421
Aircraft Components and Accessories | Parachutes; Aerial Pick Up, Delivery, Recovery Systems; and Cargo Tie Down Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1963 | 00-217-2421 | 46441 ( LINK, PARACHUTE, CONNECTOR ) |

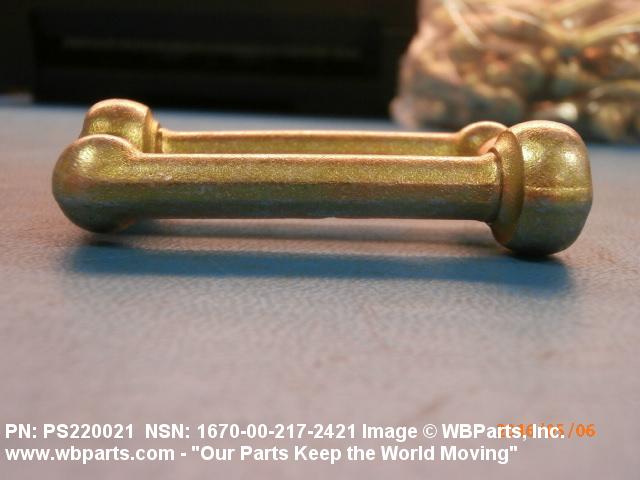

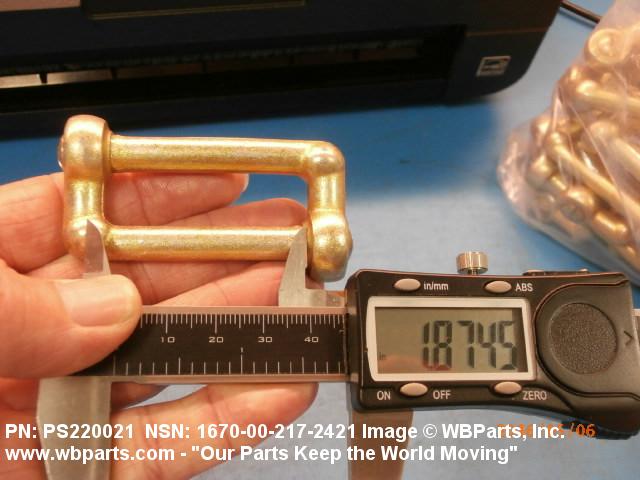

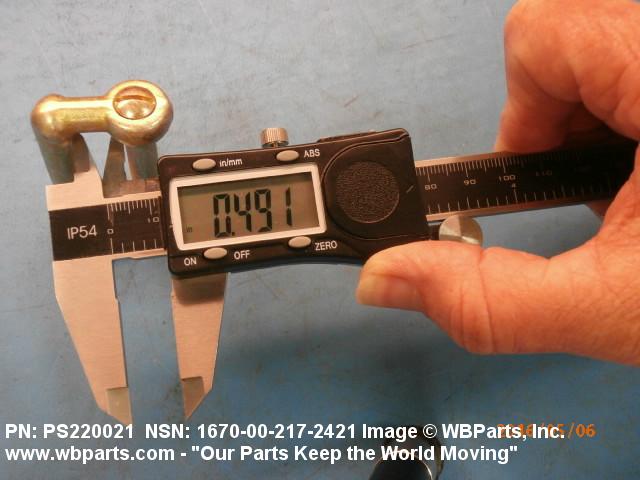

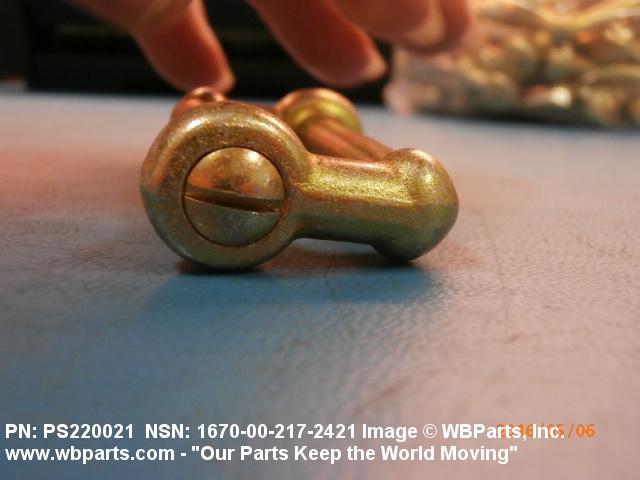

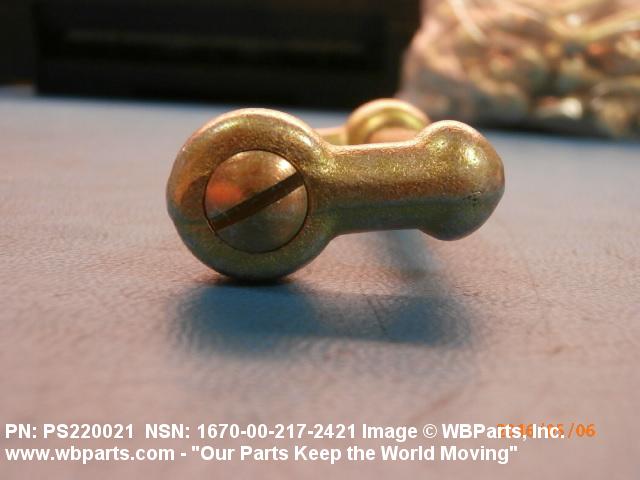

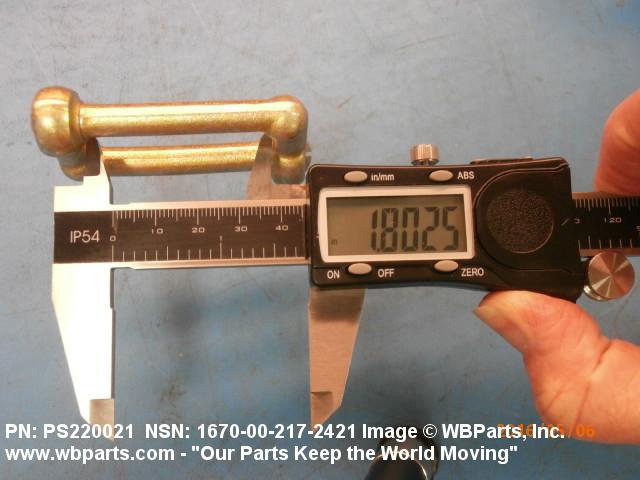

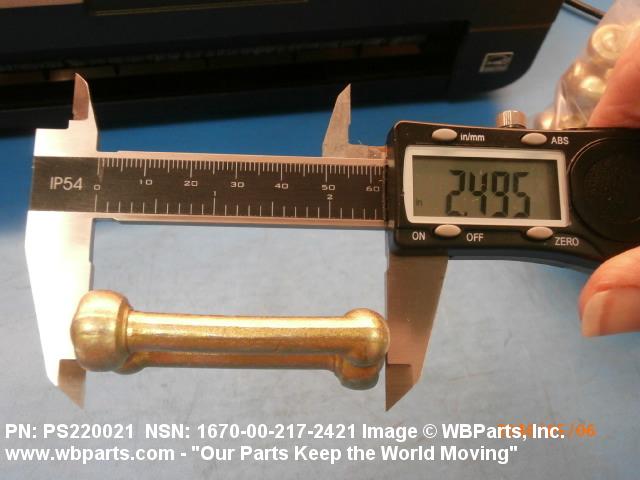

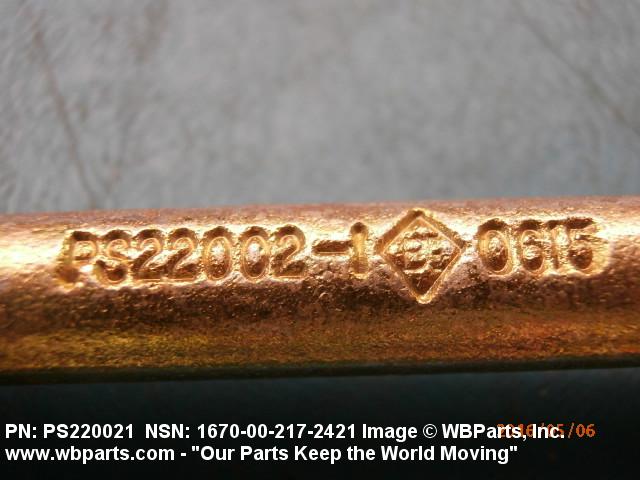

Drawings & Photos | NSN 1670-00-217-2421
Demand History | NSN 1670-00-217-2421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PS220021 | 2023-01-27 | 100 | IT |
| PS220021 | 2023-01-27 | 250 | IT |
| PS220021 | 2023-01-27 | 500 | IT |
| MS220021 | 2016-04-18 | 25 | United Arab Emirates |
| PS220021 | 2016-04-18 | 25 | United Arab Emirates |
| 1670-00-217-2421 | 2016-01-12 | 6539 | DIBBS |
| 1670-00-217-2421 | 2015-12-22 | 1328 | DIBBS |
| 1670-00-217-2421 | 2015-10-22 | 4438 | DIBBS |
| 1670-00-217-2421 | 2015-09-02 | 777 | DIBBS |
| 1670-00-217-2421 | 2013-07-16 | 2225 | MANUAL |
| 1670-00-217-2421 | 2013-04-09 | 16 | US |
| 1670-00-217-2421 | 2013-04-08 | 16 | US |
| MS22002-1 | 2011-08-09 | 10 | US |
| MS220021 | 2011-07-22 | 10 | United States |
| 1670-00-217-2421 | 2009-08-27 | 20 | US |
| 1670-00-217-2421 | 2009-07-24 | 18 | United States |
Cross Reference | NSN 1670-00-217-2421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 205068 | 0839B | CIMSA INGENIERIA DE SISTEMAS SA |
| IAC-A12437 | U1601 | AIRBORNE SYSTEMS LTD |
| IAC-A12437 | U1780 | IRVIN GQ LTD |
| MS22002-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS22002-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P33341 | F0754 | SOC EXPLOITATION MATERIELS MARTINBAKER |
| PS22002-1 | 1HHQ4 | PARACHUTE INDUSTRY ASSOCIATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 1670-00-217-2421
Related Products | NSN 1670-00-217-2421
1670-00-217-6792, 1670-00-217-6794, 1670-00-217-6795, 1670-00-218-1185, 1670-00-220-2837
Technical Data | NSN 1670-00-217-2421
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL,MIL-S-5626 OR MIL-S-6049,HOT FORGED,CADMIUM-PLATED QQ-P-416 TY 2 CL 1,RETANGULAR SHAPE CONSISTING OF TWO L SHAPED LEGS AND TWO SCREWS,DIM.,2.343 IN. NOM O/A LG,1.187 IN. NOM O/AW,1.500 IN. NOM INSIDE LG,0.437 IN. NOM INSIDE W,EACH LEG TAPPED WITH 10-40UNS-3B THREADS TO ACCOMODATE SCREW 0.437 IN. LG W/10-40UNS-3A THREADS,3000 LB PROOF LOAD |
Restrictions/Controls & Freight Information | NSN 1670-00-217-2421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1670-00-217-2421
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | W | Line of Communication/Base Support Systems |
| Weapons Systems/End Item or Homogeneous Group | WS | Air Delivery Equipment |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 3 | Critical for Health and Safety of Personnel. Those parts and components that are required for the health and safety of personnel, and which do not fit the definition of Code 5 or 6 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
