Product Details | BELL CRANK
1680-00-173-3919 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment
Part Alternates: 53-460067-1, 1680-00-173-3919, 00-173-3919, 1680001733919, 534600671, 001733919
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 03 DEC 1971 | 00-173-3919 | 22321 ( BELL CRANK ) |

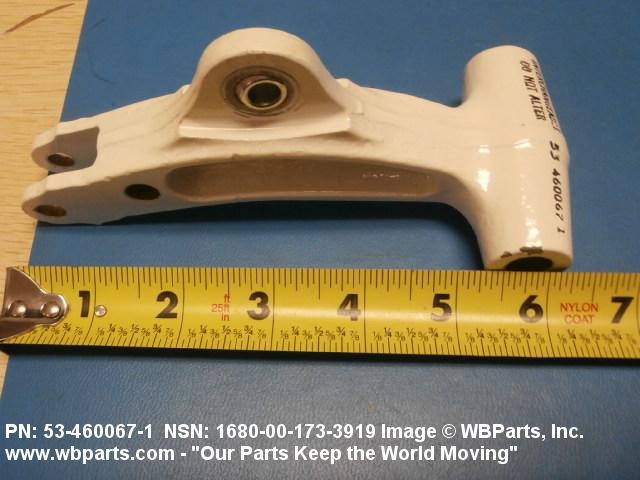

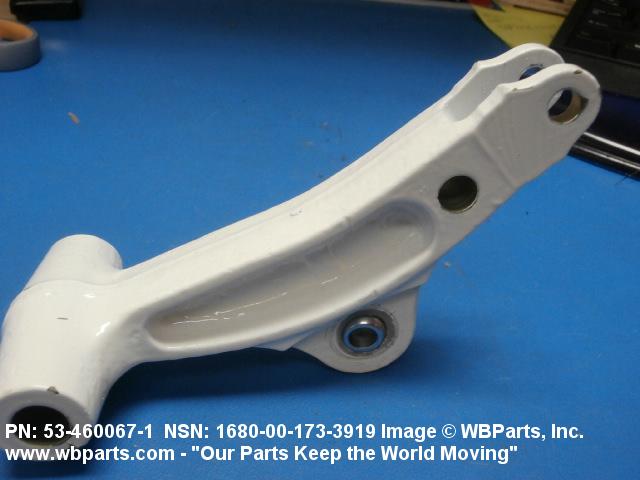

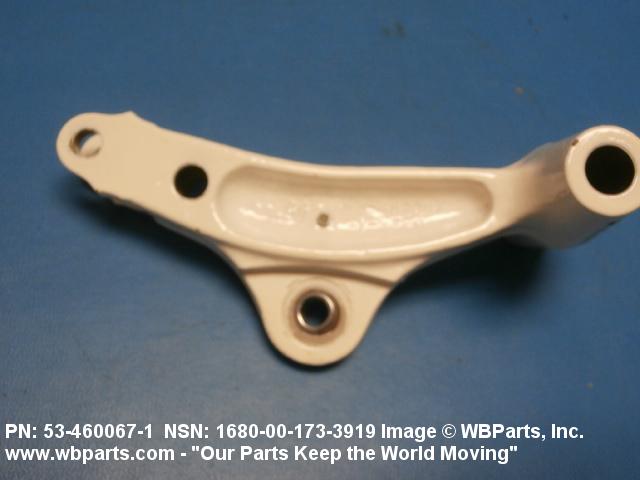

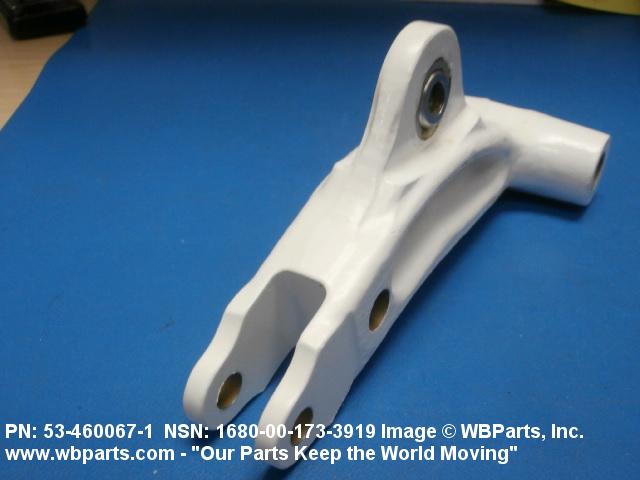

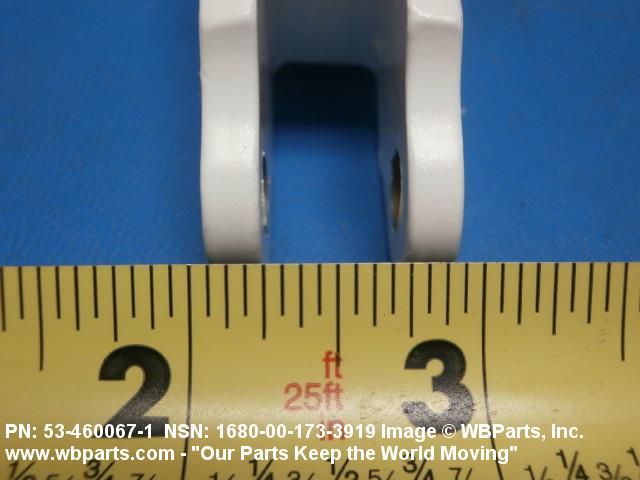

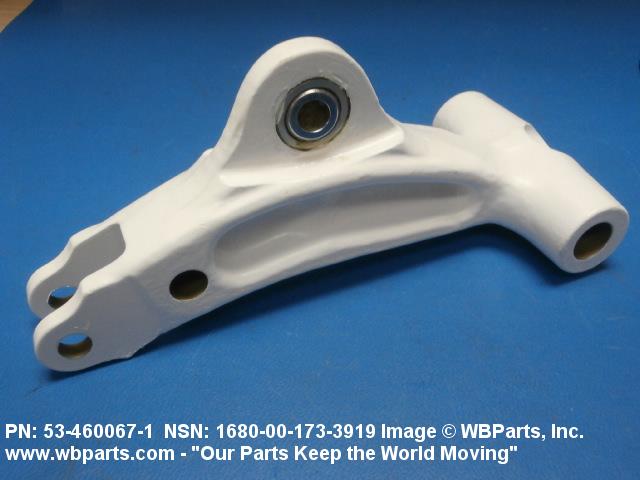

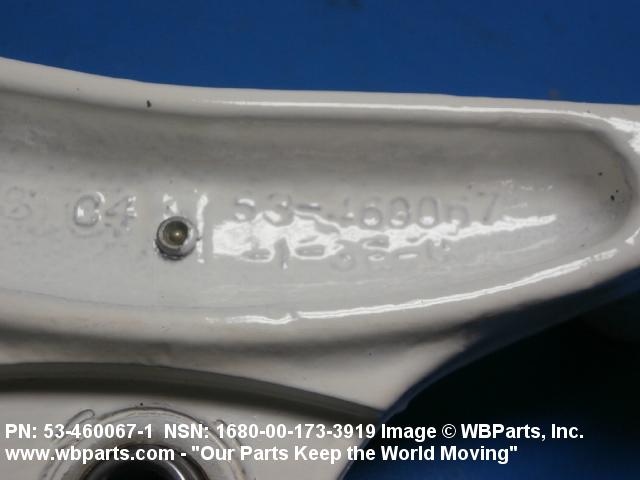

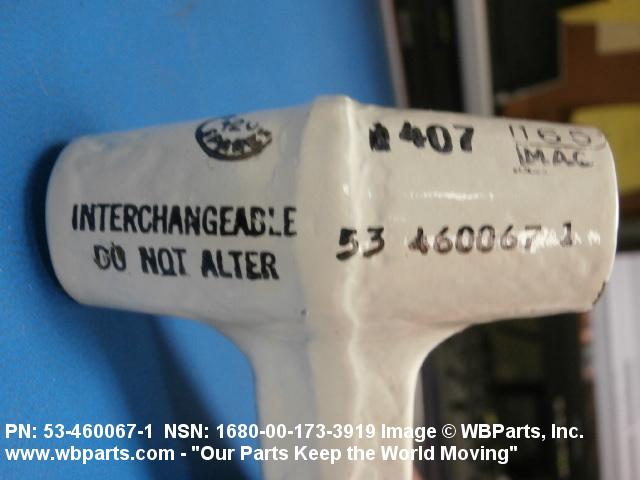

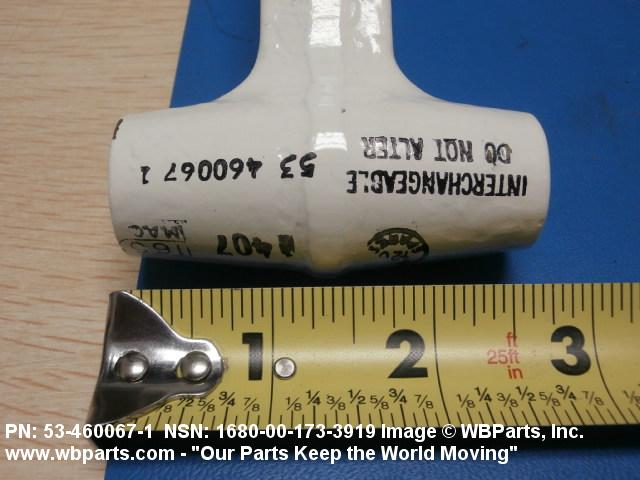

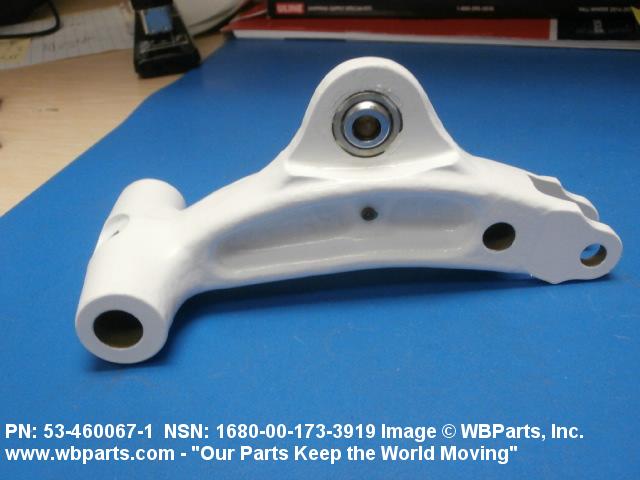

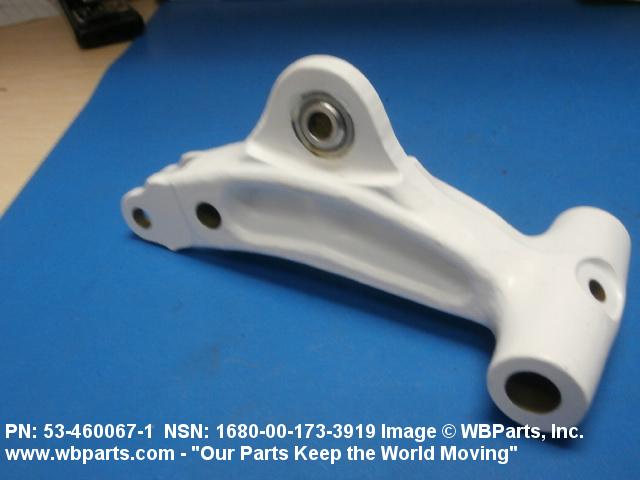

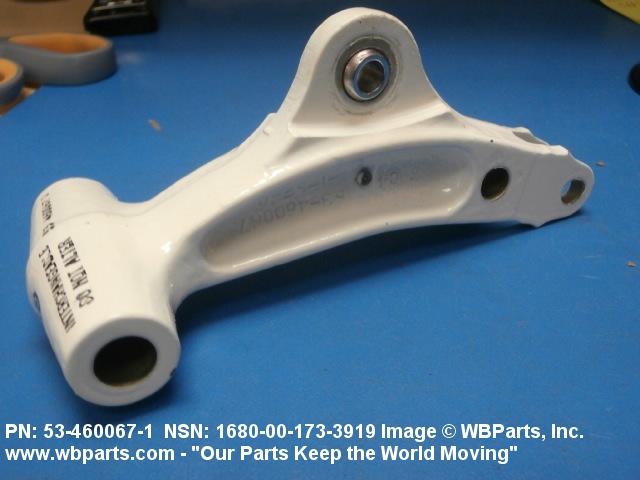

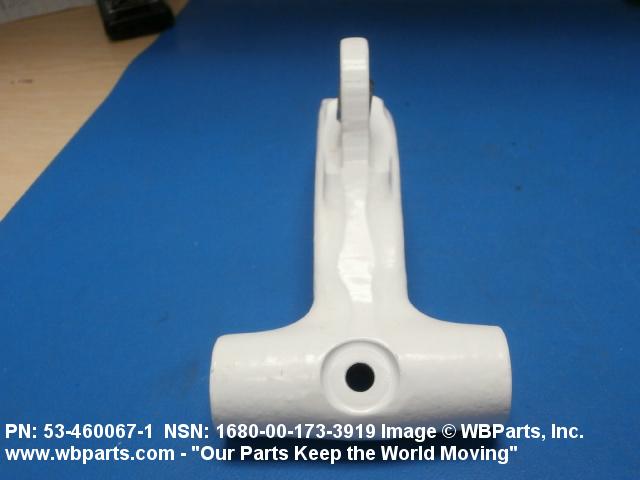

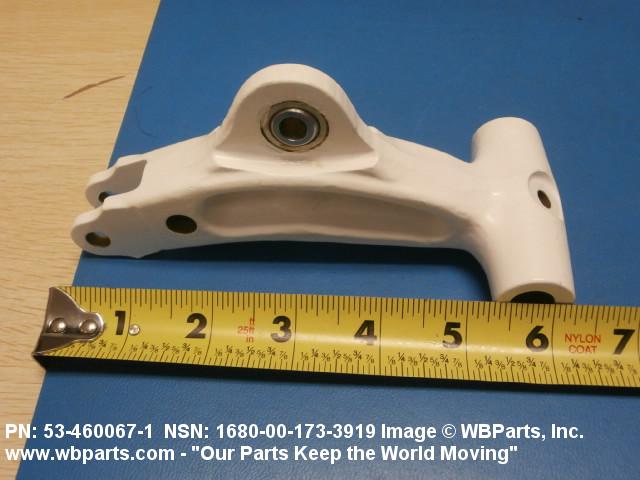

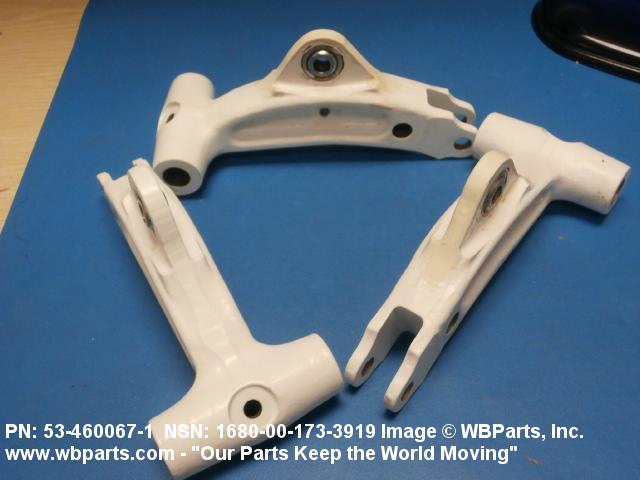

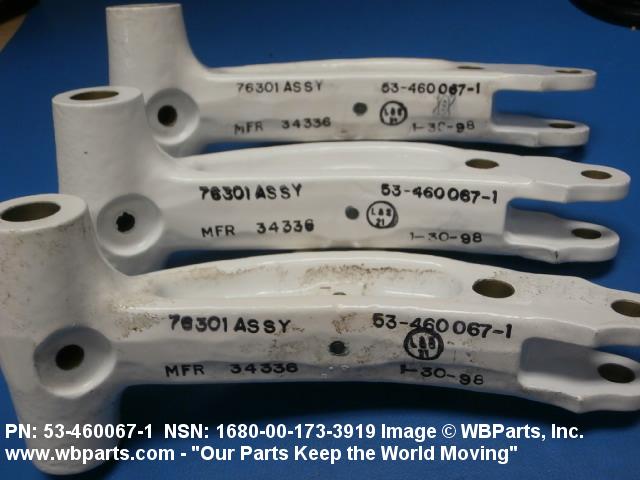

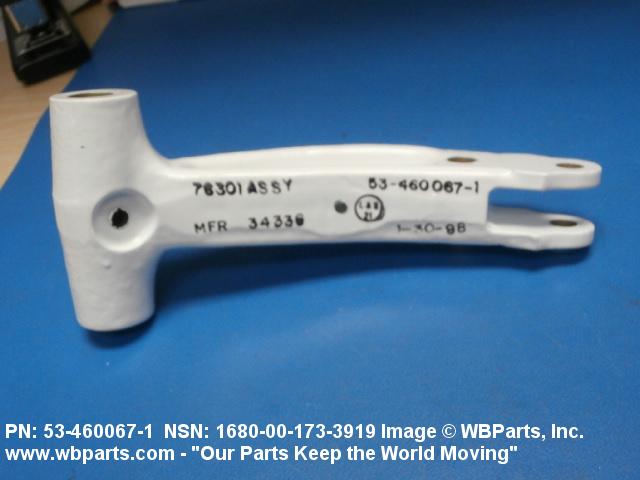

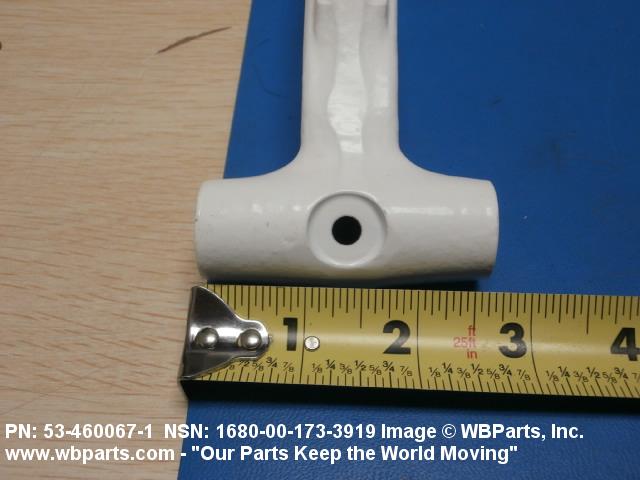

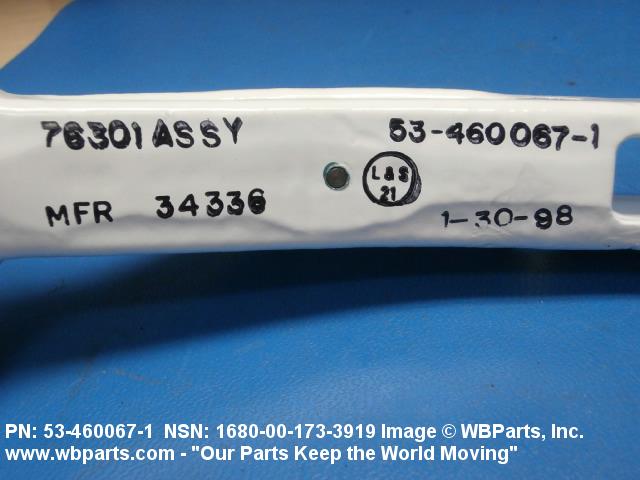

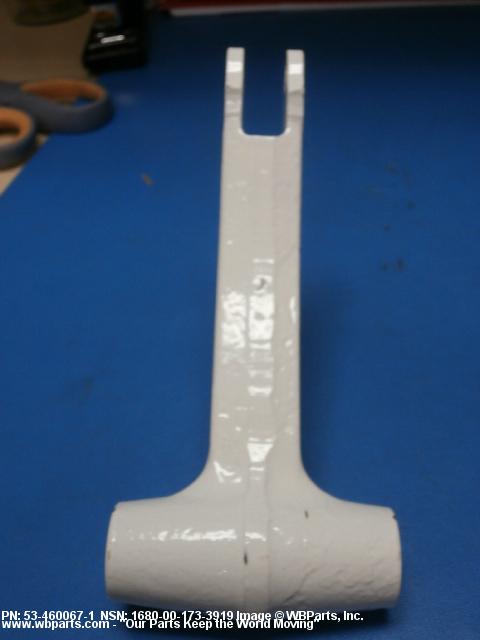

Drawings & Photos | NSN 1680-00-173-3919
Demand History | NSN 1680-00-173-3919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1680-00-173-3919 | 2019-10-23 | 9 | DIBBS |
| 1680-00-173-3919 | 2019-05-22 | 6 | DIBBS |
| 1680-00-173-3919 | 2017-05-09 | 9 | DIBBS |
| 1680-00-173-3919 | 2016-10-28 | 3 | United States |
| 1680-00-173-3919 | 2016-08-31 | 4 | DIBBS |
| 1680-00-173-3919 | 2016-07-07 | 8 | DIBBS |
| 1680-00-173-3919 | 2016-06-15 | 8 | DIBBS |
| 1680-00-173-3919 | 2015-09-17 | 20 | United States |
| 1680-00-173-3919 | 2015-09-03 | 7 | DIBBS |
| 1680-00-173-3919 | 2015-08-23 | 7 | DIBBS |
| 1680-00-173-3919 | 2015-06-15 | 20 | DIBBS |
| 1680-00-173-3919 | 2015-06-04 | 20 | DIBBS |
| 1680-00-173-3919 | 2015-02-20 | 11 | DIBBS |
| 1680-00-173-3919 | 2015-02-09 | 11 | DIBBS |
| 1680-00-173-3919 | 2014-12-21 | 16 | DIBBS |
| 1680-00-173-3919 | 2014-12-14 | 8 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 1680-00-173-3919
Related Products | NSN 1680-00-173-3919
1680-00-173-4586, 1680-00-173-7405, 1680-00-173-7406, 1680-00-174-2782, 1680-00-174-5809
Technical Data | NSN 1680-00-173-3919
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| STYLE DESIGNATOR | A34 CLEVIS, TONGUE |
| CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL | 2.758 INCHES NOMINAL 1ST END 3.160 INCHES NOMINAL 2ND END |
| END HOLE/BALL DIAMETER | 0.312 INCHES MINIMUM AND 0.313 INCHES MAXIMUM 1ST END 0.500 INCHES MINIMUM AND 0.501 INCHES MAXIMUM 2ND END |
| BORE LENGTH | 0.375 INCHES NOMINAL |
| BORE DIAMETER | 0.313 INCHES NOMINAL |
| SPECIAL FEATURES | BB END THICKNESS 3.060 IN |
| FSC APPLICATION DATA | AIRCRAFT MODEL F4 |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 53-460067-1 |
