NSN 1680-00-700-3114 S614061103000, S6140-61103-000, 00-700-3114

Product Details | AIRCRAFT CONTROL STICK


1680-00-700-3114 A lever used for maintaining control of an aircraft about its pitch and roll axis. Excludes operation of trim tabs or the like. It is distinguished from a CONTROL COLUMN in that its side to side movement controls the aircraft about its roll axis.

Part Alternates: S614061103000, S6140-61103-000, 1680-00-700-3114, 00-700-3114, 1680007003114, 007003114

Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components

Supply Group (FSG) NSN Assign. NIIN
16 01 JAN 1963 00-700-3114

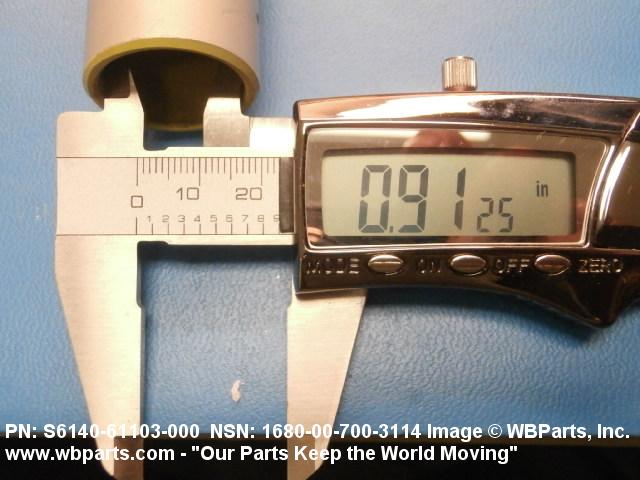

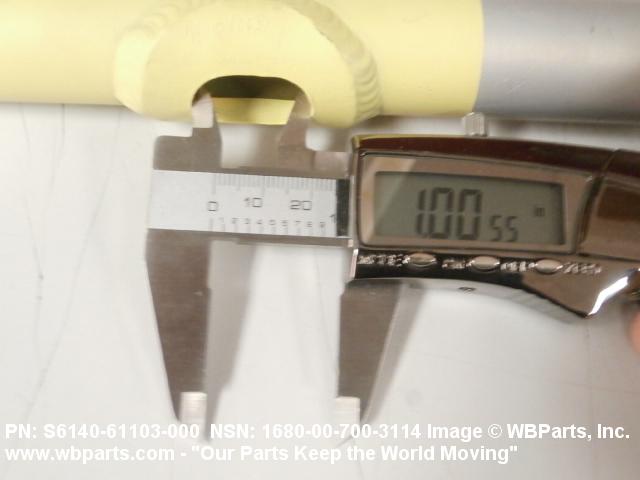

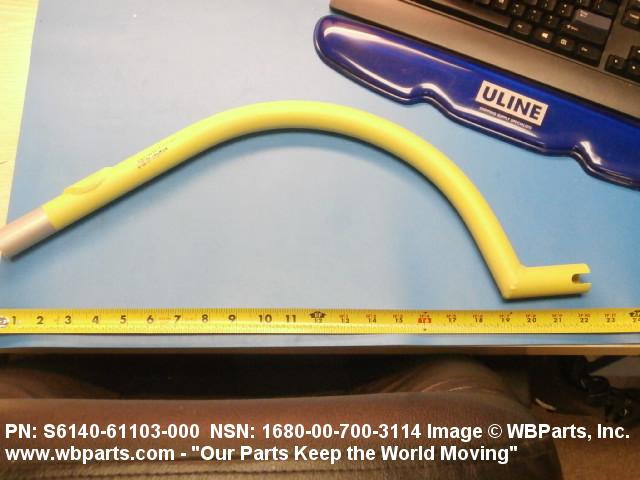

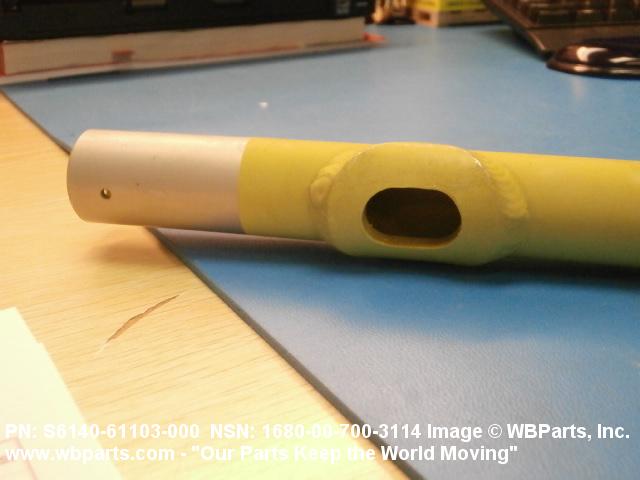

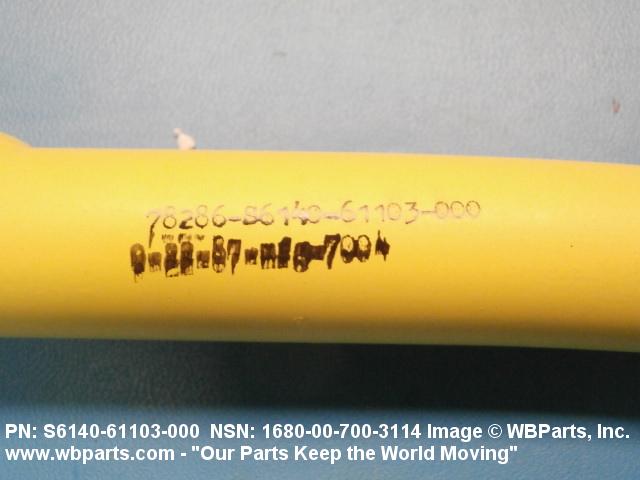

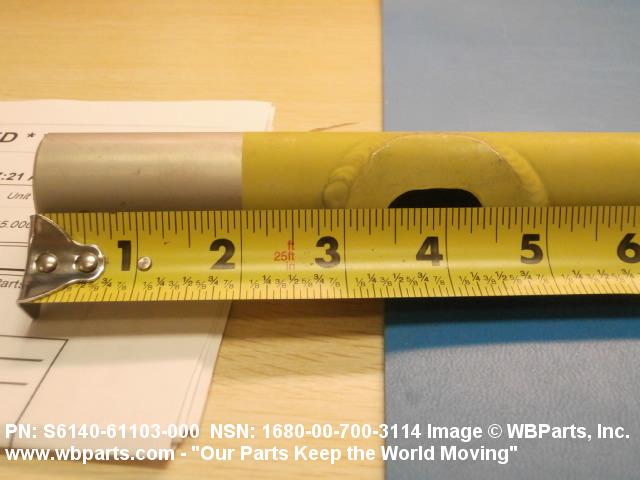

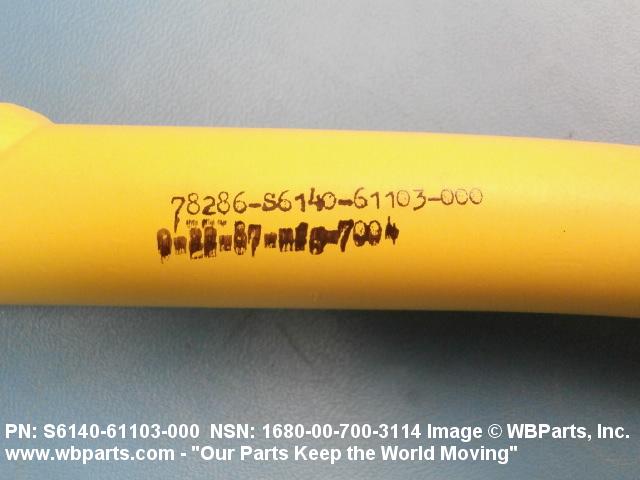

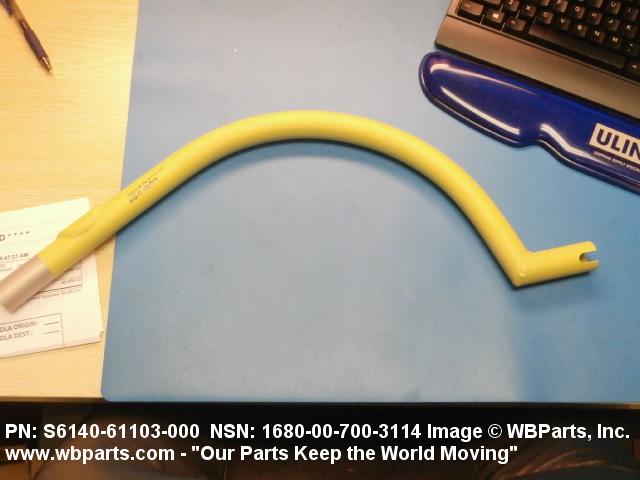

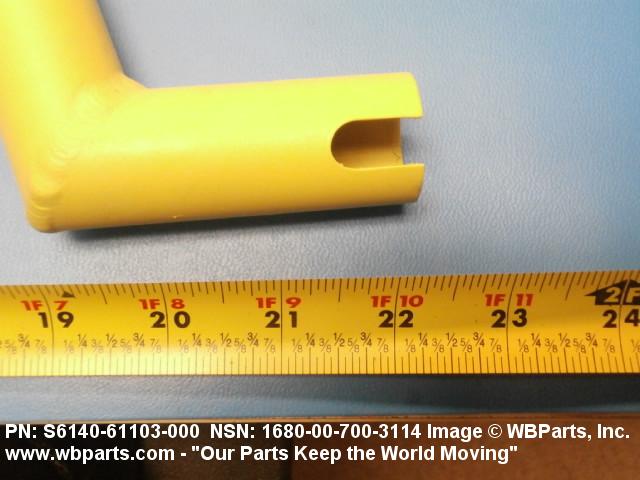

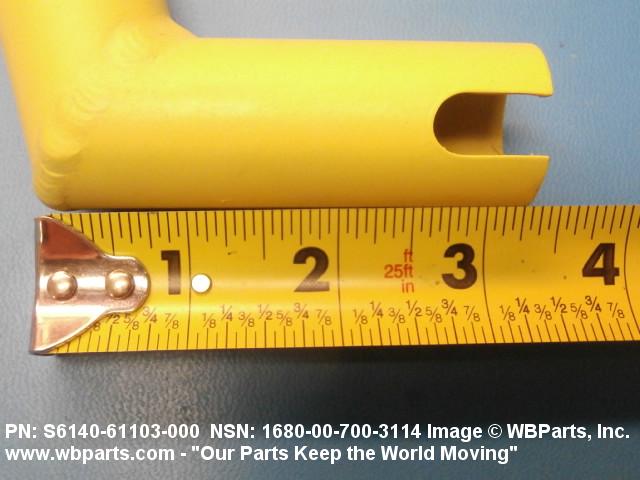

Drawings & Photos | NSN 1680-00-700-3114



Demand History | NSN 1680-00-700-3114


Part Number Request Date QTY Origin
S6140-61103-000 2016-02-26 1
1680-00-700-3114 2016-02-25 1 NECO
S6140-61103-000 2016-01-07 1
1680-00-700-3114 2016-01-06 1 NECO
1680-00-700-3114 2015-03-03 1 US
1680-00-700-3114 2015-02-24 10 Canada
1680-00-700-3114 2015-02-23 10 Canada
S614061103000 2012-08-15 1 Malaysia

Cross Reference | NSN 1680-00-700-3114


Part Number Cage Code Manufacturer
S6140-61103-000 78286 SIKORSKY AIRCRAFT CORPORATION

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 1680-00-700-3114


Technical Data | NSN 1680-00-700-3114


Characteristic Specifications
END ITEM IDENTIFICATION AIRCRAFT MODEL TA-4J
MANUFACTURERS CODE 78286
DESIGN CONTROL REFERENCE S6140-61103-000

Restrictions/Controls & Freight Information | NSN 1680-00-700-3114


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:FThe item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 019670 AUTO STEERING GEAR ASSY W/O WHEELS
Less than car load rating M 85
Less than truck load rating M 85.0
Water commodity Code 581 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 1680-00-700-3114


Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeGKSX:FSC 1560 ITEMS NOT ELSEWHERE MMAC CODED
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes1RAeronautical, photographic, and meteorological material (consumable or expense type material)
Naval Inventory Control Point, Philadelphia
Special Material IDDHHELICOPTERS(H3)
Special Material Content9 Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of SupplyNRPNAVICP-ERP
700 Robbins Avenue
Philadelphia, PA 19111-5098
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
ReparabilityMMedium Demand Velocity Items (consumables)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
