NSN 1680-00-914-2653 A21896118000, A218-961180-00, 2040010681
Product Details | AIRCRAFT CONTROLLER GRIP ASSEMBLY
1680-00-914-2653 A hand grip, usually of pistol grip design, made of rubber, plastic or other material and designed to be mounted on an aircraft control stick to provide a formed gripping surface. It incorporates electrical controls, such as resistor(s) and/or switches for remotely actuating associated equipment, such as servos, armament, trim tabs, and the like. Excludes SWITCH, TRIGGER and other multiapplication switches.
Part Alternates: A21896118000, A218-961180-00, 2040010681, 204-001-068-1, 21718, 280009, 28000-9, 601145, 631132, 6311-32, 7025100, 702-5100, 1680-00-914-2653, 00-914-2653, 1680009142653, 009142653
Aircraft Components and Accessories | Miscellaneous Aircraft Accessories and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 01 JAN 1960 | 00-914-2653 | 19339 ( GRIP ASSEMBLY, CONTROLLER, AIRCRAFT ) |

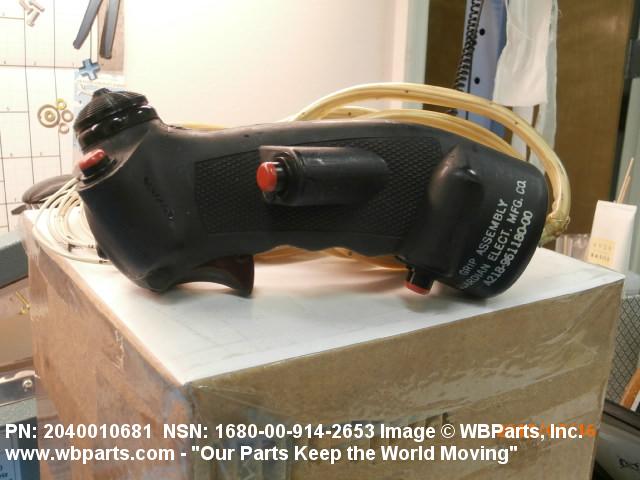

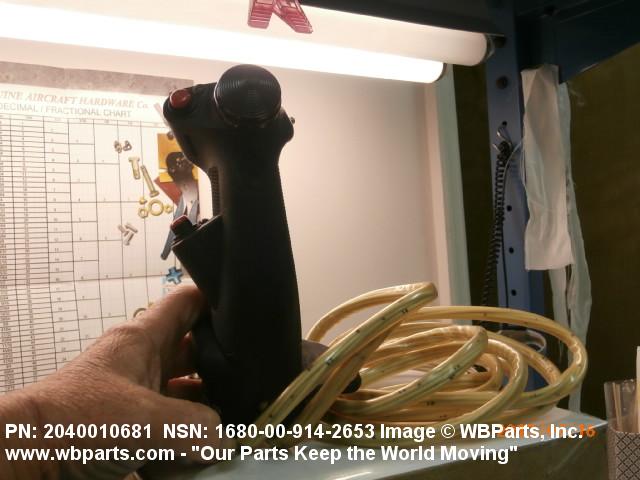

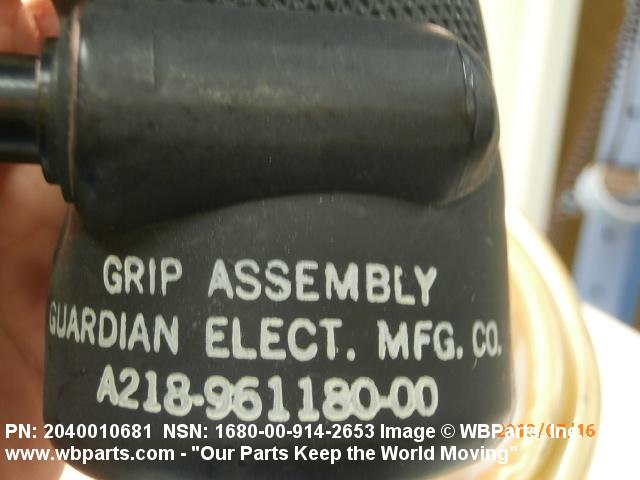

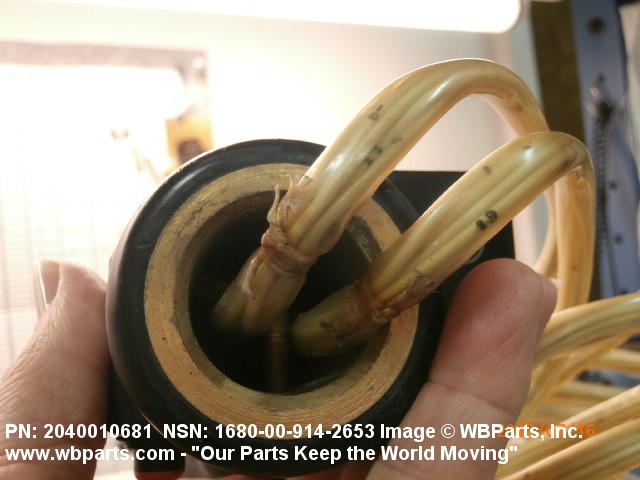

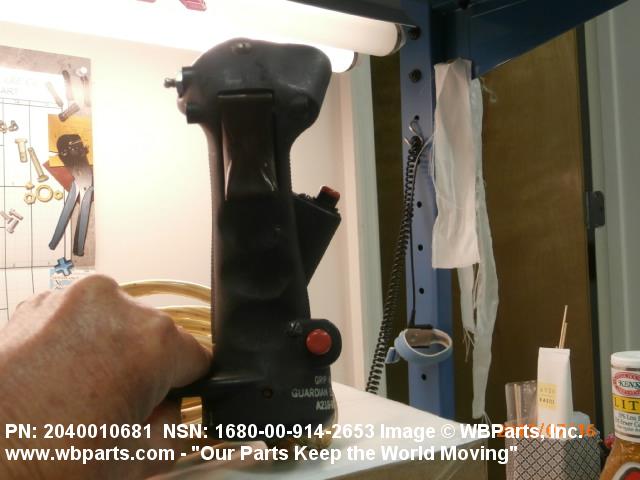

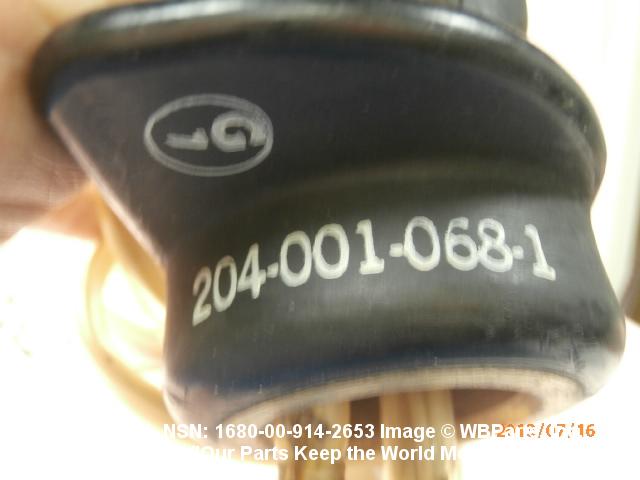

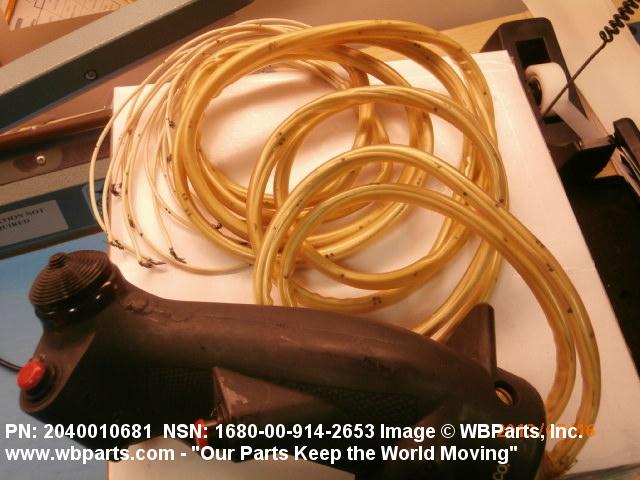

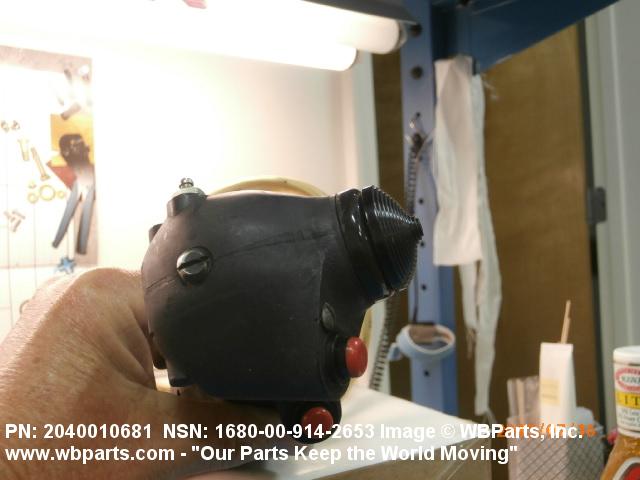

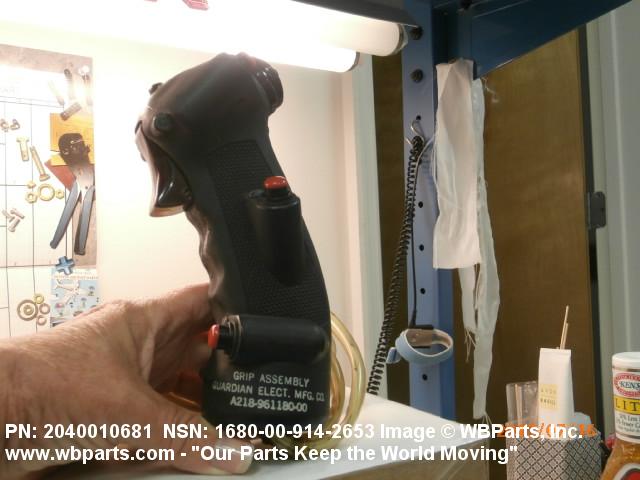

Drawings & Photos | NSN 1680-00-914-2653
Demand History | NSN 1680-00-914-2653
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 601145 | 2018-07-211 | 18 | IN |
| 1680-00-914-2653 | 2013-06-179 | 2 | United States |
| 1680-00-914-2653 | 2013-06-178 | 2 | United States |
| 2040010681 | 2013-04-98 | 2 | United States |
| 2040010681 | 2013-04-92 | 2 | US |
Cross Reference | NSN 1680-00-914-2653
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-001-068-1 | 80070 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 204-001-068-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 21718 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 21718 | 81579 | MASON ELECTRIC COMPANY |
| 28000-9 | 83533 | ESSEX INDUSTRIES, INC. DIV MANUFACTURING DIVISION |
| 601145 | 17480 | GUIDE MICROWAVE INC |
| 6311-32 | 81579 | MASON ELECTRIC COMPANY |
| 702-5100 | 81579 | MASON ELECTRIC COMPANY |
| A218-961180-00 | 73949 | GUARDIAN ELECTRIC MANUFACTURING CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 1680-00-914-2653
Technical Data | NSN 1680-00-914-2653
| Characteristic | Specifications |
|---|---|
| GRIP MATERIAL | PLASTIC |
| DESIGN TYPE | PISTOL |
| GRIPPING ACCOMMODATION TYPE | FINGER NOTCHED |
| MOUNTING END TYPE | INTERNAL |
| MOUNTING END DIAMETER | 1.155 INCHES MINIMUM AND 1.157 INCHES MAXIMUM |
| MOUNTING END LENGTH | 1.160 INCHES NOMINAL |
| MOUNTING END BOLT HOLE | INCLUDED |
| GRIP LENGTH | 7.313 INCHES NOMINAL |
| SWITCH TYPE | PUSH BUTTON TOGGLE TRIGGER |
| SWITCH QUANTITY | 3 1 1 |
| SWITCH LOCATION | TOP LH SIDE,MIDDLE LH SIDE AND BOTTOM LH SIDE TOP AFT UPPER FRONT |
| VARIABLE RESISTOR | NOT INCLUDED |
| ELECTRICAL CABLE | INCLUDED |
| CABLE LENGTH | 60.000 INCHES NOMINAL |
| MANUFACTURERS CODE | 97499 |
| MFR SOURCE CONTROLLING REFERENCE | 204-001-068-1 |
Restrictions/Controls & Freight Information | NSN 1680-00-914-2653
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1680-00-914-2653
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9W | Navy-owned stocks of material managed by the Army within the Army Troop Support and Aviation Materiel Readiness Command Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
