NSN 1730-00-944-0049 000993-937, 65C354071, 65C35407-1
Product Details | PULLEY EXTENSION HANDLE
1730-00-944-0049
Part Alternates: 000993-937, 65C354071, 65C35407-1, 1730-00-944-0049, 00-944-0049, 1730009440049, 009440049, 000993937
2540 | Aircraft Ground Servicing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 04 FEB 1966 | 00-944-0049 | 77777 ( ) |

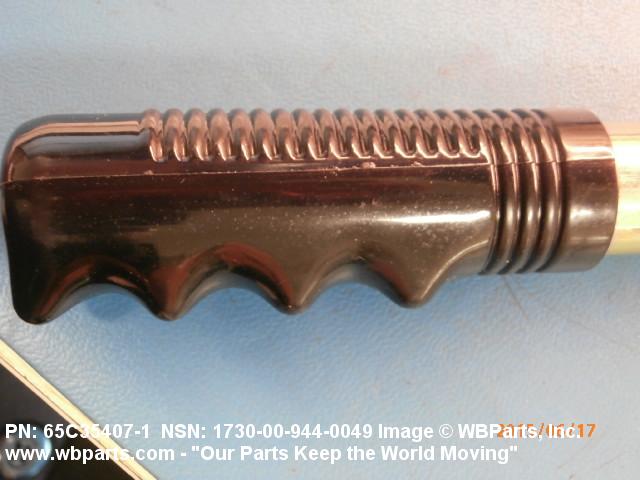

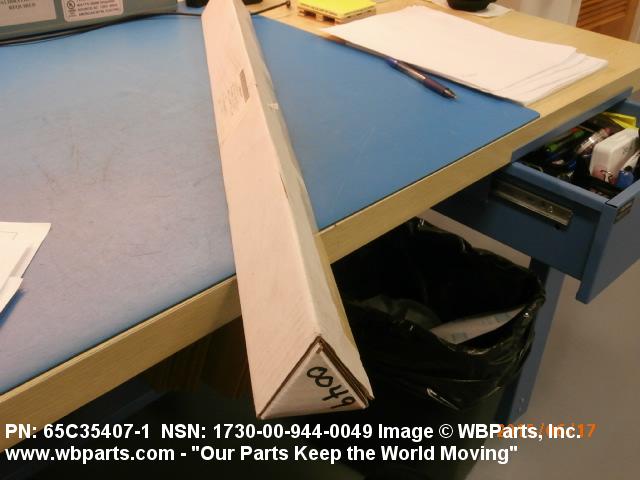

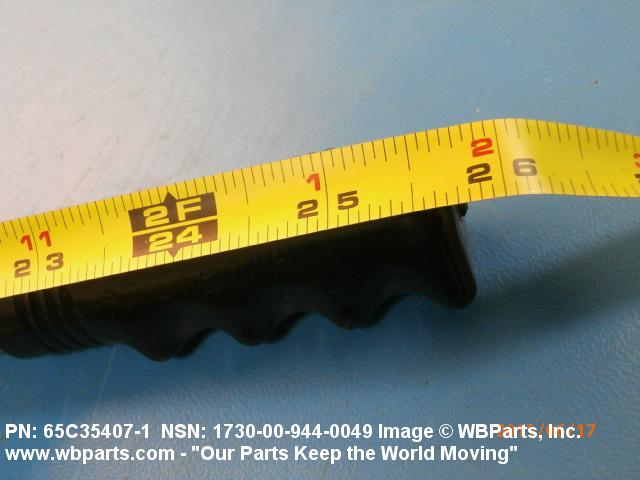

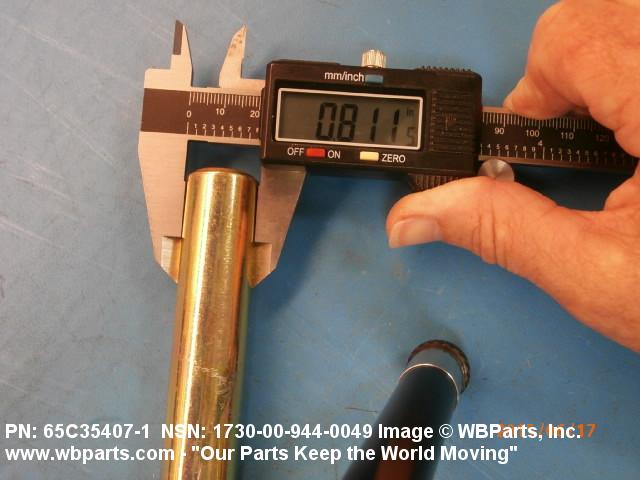

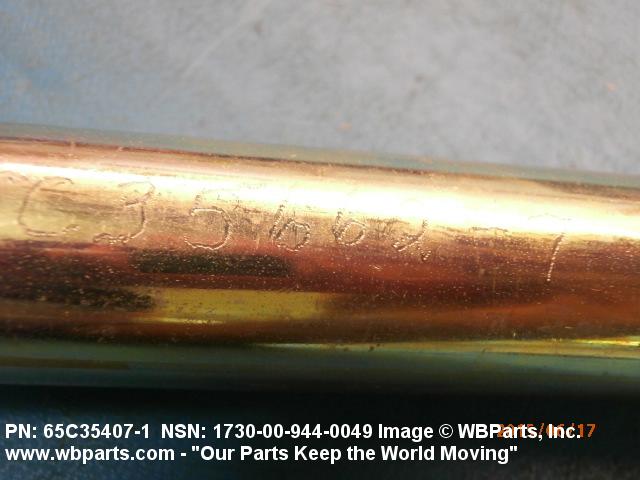

Drawings & Photos | NSN 1730-00-944-0049
Demand History | NSN 1730-00-944-0049
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1730-00-944-0049 | 2025-04-92 | 218 | DIBBS |
| 1730-00-944-0049 | 2021-03-75 | 258 | DIBBS |
| 1730-00-944-0049 | 2020-08-239 | 4 | US |
| 1730-00-944-0049 | 2018-02-50 | 235 | DIBBS |
| 1730-00-944-0049 | 2016-08-214 | 110 | DIBBS |
| 65C354071 | 2015-05-146 | 10 | Singapore |
| 1730-00-944-0049 | 2010-02-50 | 173 | DIBBS |
| 1730-00-944-0049 | 2009-12-349 | 90 | DIBBS |
| 1730-00-944-0049 | 2009-08-233 | 97 | DIBBS |
| 1730-00-944-0049 | 2008-01-08 | 180 | DIBBS |
| 1730-00-944-0049 | 2007-07-205 | 93 | DIBBS |
| 1730-00-944-0049 | 2007-07-187 | 69 | DIBBS |
| 1730-00-944-0049 | 2006-07-188 | 12 | DIBBS |
Cross Reference | NSN 1730-00-944-0049
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000993-937 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
| 65C35407-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 65C35407-1 | 18894 | AIR ARMAMENT CENTER/ EN |
| 65C35407-1 | 26739 | STINSON MFG CO |
| 65C35407-1 | 33924 | KLIEGL BROS UNIVERSAL ELECTRIC STAGE LIGHTING CO INC |
| 65C35407-1 | 34336 | TECT AEROSPACE INC. DBA TECT AEROSPACE SOUTHWEST |
| 65C35407-1 | 80049 | DEPARTMENT OF THE AIR FORCE |
| 65C35407-1 | 98296 | STANDARD MFG CO INC |
| 65C35407-1 | 98750 | SAN ANTONIO AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 1730-00-944-0049
Related Products | NSN 1730-00-944-0049
Technical Data | NSN 1730-00-944-0049
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | STEEL BAR,AISI,C1018,CR,PER QQ-S-630; CADMIUM PLATED PER SPEC QQ-P-416,TYPE 2,CLASS 1; 25.500 IN. NOMINAL LENGTH; 0.813 IN. DIA. |
| III END ITEM IDENTIFICATION | TRUCK,LIFT,MUNITIONS HANDLING/LOADING TYPE MHU-83/E |
Restrictions/Controls & Freight Information | NSN 1730-00-944-0049
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 1730-00-944-0049
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
