Product Details | MARINE PROPELLER
2010-00-001-3598 A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design.
Part Alternates: SSN6852034390885PC1, SSN685-203-4390885PC1, 2010-00-001-3598, 00-001-3598, 2010000013598, 000013598
Ship and Marine Equipment | Ship and Boat Propulsion Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 27 SEP 1972 | 00-001-3598 | 30771 ( PROPELLER, MARINE ) |
Drawings & Photos | NSN 2010-00-001-3598
Cross Reference | NSN 2010-00-001-3598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SSN685-203-4390885PC1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2010-00-001-3598
Related Products | NSN 2010-00-001-3598
Technical Data | NSN 2010-00-001-3598
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 14.000 FEET |
| BLADE QUANTITY | 7 |
| DESIGN PITCH | 11.730 FEET |
| BLADE PITCH TYPE | VARIABLE |
| SECTIONAL RADIUS STATION | 0.7 |
| MATERIAL AND LOCATION | BRONZE MANGANESE, MIL-B-21230, ALLOY 1 OVERALL |
| SURFACE FINISH AND LOCATION | 63.0 MICROINCHES OVERALL |

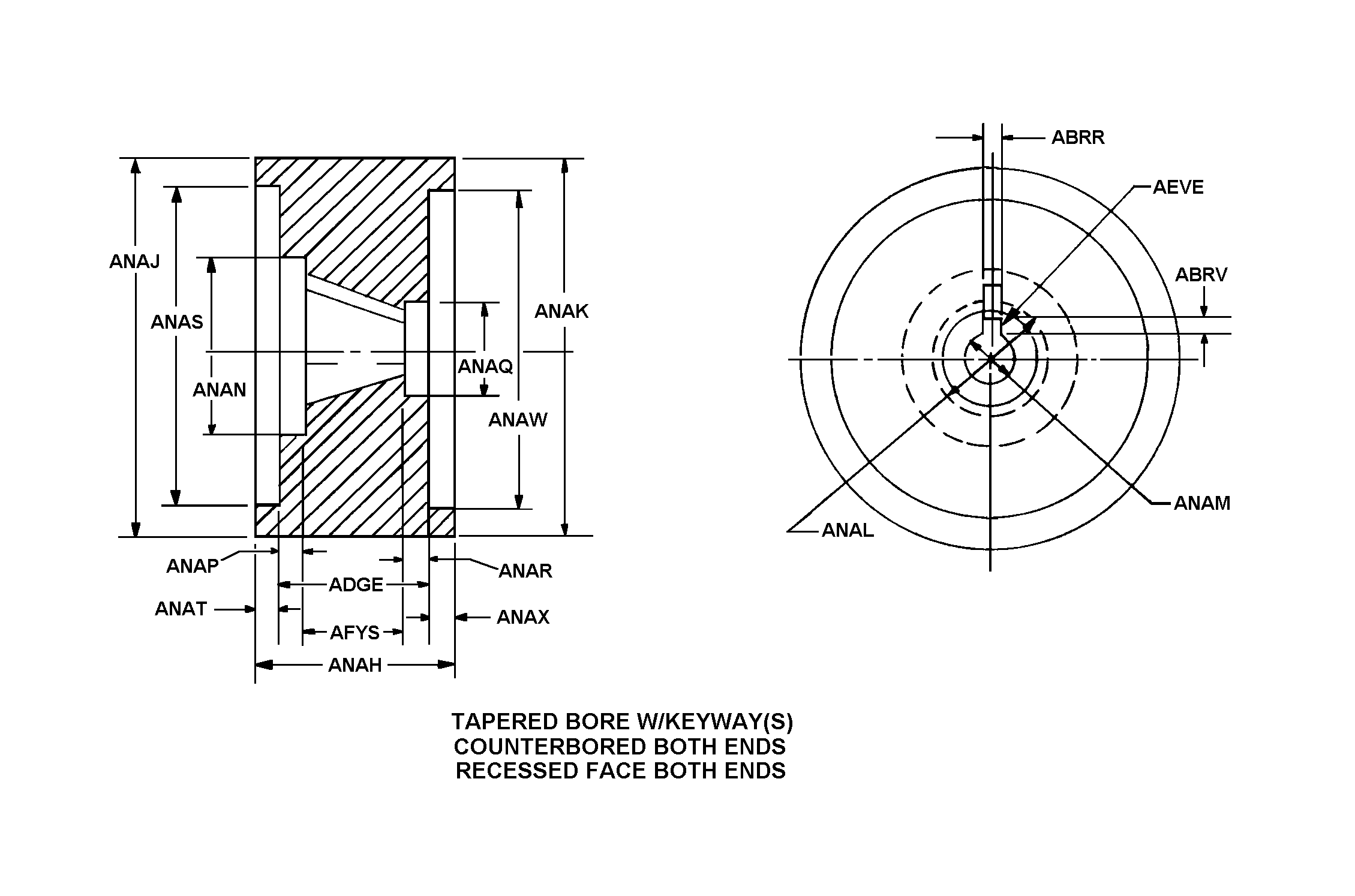

| HUB SHAFT ACCOMMODATION STYLE | 11 TAPERED BORE W/KEYWAY COUNTERBORED BOTH ENDS RECESSED FACE BOTH ENDS |
| KEYWAY WIDTH | 2.815 INCHES MINIMUM AND 2.820 INCHES MAXIMUM AND 2.753 INCHES MINIMUM AND 2.758 INCHES MAXIMUM |
| KEYWAY DEPTH | 1.505 INCHES MINIMUM AND 1.525 INCHES MAXIMUM AND 1.505 INCHES MINIMUM AND 1.525 INCHES MAXIMUM |
| BORE LENGTH | 37.245 INCHES NOMINAL |
| KEYWAY LENGTH | 35.745 INCHES NOMINAL |
| HUB OVERALL LENGTH | 38.120 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 49.320 INCHES NOMINAL |
| HUB AFT FACE DIAMETER | 28.220 INCHES NOMINAL |
| FORWARD COUNTERBORE DIAMETER | 17.405 INCHES MINIMUM AND 17.410 INCHES MAXIMUM |
| FORWARD COUNTERBORE DEPTH | 0.500 INCHES NOMINAL |
| AFT COUNTERBORE DIAMETER | 13.250 INCHES NOMINAL |
| AFT COUNTERBORE DEPTH | 1.000 INCHES NOMINAL |
| FORWARD RECESSED FACE DIAMETER | 18.375 INCHES NOMINAL |
| FORWARD RECESSED FACE DEPTH | 0.625 INCHES NOMINAL |
| AFT RECESSED FACE DIAMETER | 19.770 INCHES NOMINAL |
| AFT RECESSED FACE DEPTH | 0.250 INCHES NOMINAL |
| KEYWAY QUANTITY | 2 |
| STREAMLINING DEVICE TYPE | FAIRWATER CAP |
| SPECIAL FEATURES | HUB BORE HAS 19.620 IN. DIA BY 1.000 IN. W UNDERCUT 1.125 IN.FROM FORWARD FACE |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | SSN685-203-4390885PC1 |
