NSN 2010-00-068-7519 2186764, 00-068-7519, 000687519
Product Details | MARINE PROPELLER
2010-00-068-7519 A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design.
Part Alternates: 2186764, 2010-00-068-7519, 00-068-7519, 2010000687519, 000687519
Ship and Marine Equipment | Ship and Boat Propulsion Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 13 JUL 1967 | 00-068-7519 | 30771 ( PROPELLER, MARINE ) |
Drawings & Photos | NSN 2010-00-068-7519
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2010-00-068-7519
Related Products | NSN 2010-00-068-7519
Technical Data | NSN 2010-00-068-7519
| Characteristic | Specifications |
|---|---|
| PROPELLER TYPE | FIXED PITCH |
| ROTATION DIRECTION | RIGHT-HAND |
| SPAN MAXIMUM DIAMETER | 10.000 FEET |
| BLADE QUANTITY | 5 |
| DESIGN PITCH | 9.400 FEET |
| BLADE PITCH TYPE | CONSTANT |
| MATERIAL AND LOCATION | NICKEL-ALUMINUM-BRONZE OVERALL |

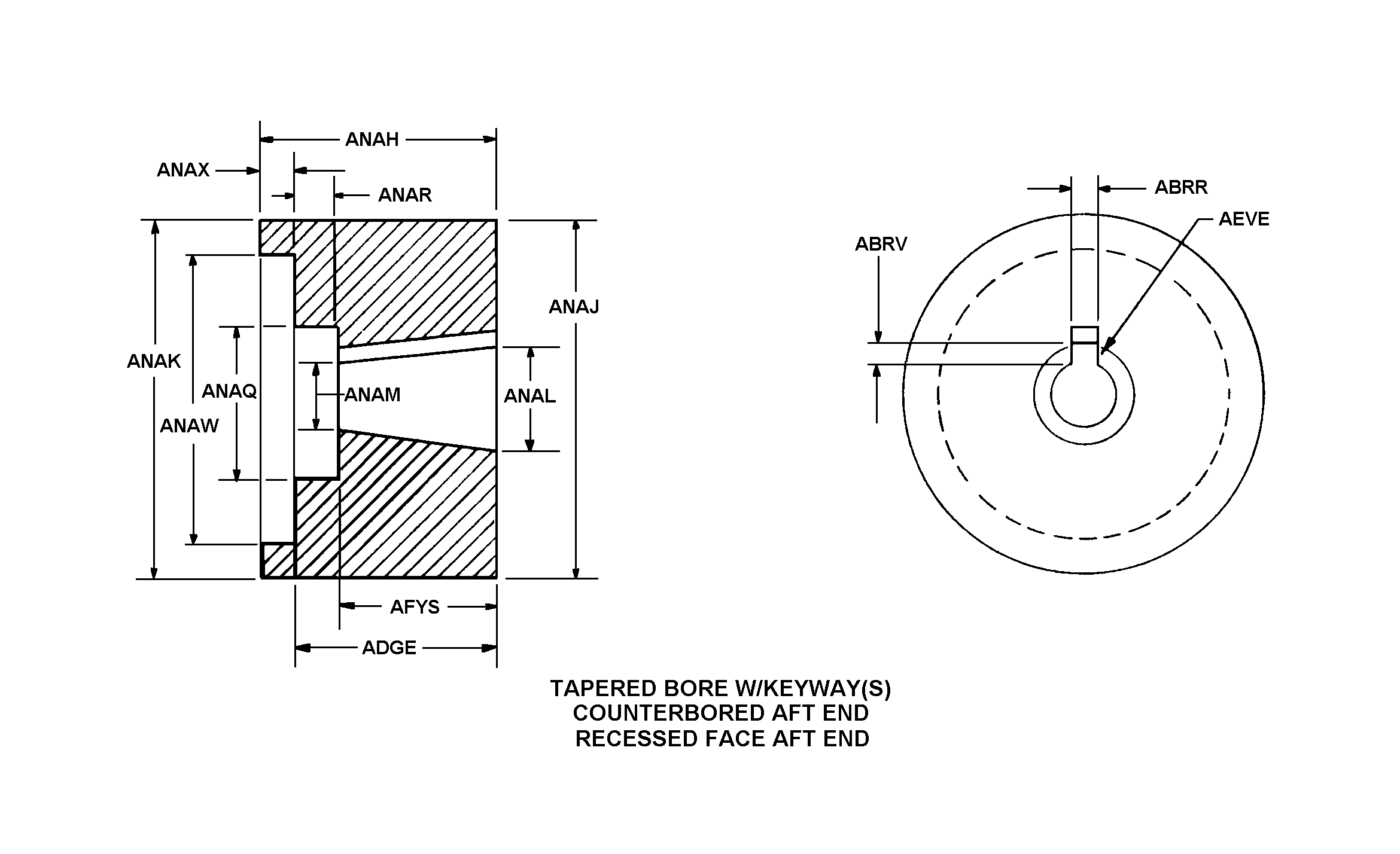

| HUB SHAFT ACCOMMODATION STYLE | 10 TAPERED BORE W/KEYWAY COUNTERBORED AFT END RECESSED FACE AFT END |
| KEYWAY WIDTH | 2.500 INCHES NOMINAL |
| KEYWAY DEPTH | 0.750 INCHES NOMINAL |
| BORE LENGTH | 25.875 INCHES NOMINAL |
| KEYWAY LENGTH | 20.000 INCHES NOMINAL |
| HUB OVERALL LENGTH | 26.500 INCHES NOMINAL |
| HUB FORWARD FACE DIAMETER | 25.000 INCHES NOMINAL |
| HUB AFT FACE DIAMETER | 23.000 INCHES NOMINAL |
| TAPER BORE MAJOR DIAMETER | 11.562 INCHES NOMINAL |
| TAPER BORE MINOR DIAMETER | 9.896 INCHES NOMINAL |
| AFT COUNTERBORE DIAMETER | 13.093 INCHES NOMINAL |
| AFT COUNTERBORE DEPTH | 2.875 INCHES NOMINAL |
| AFT RECESSED FACE DIAMETER | 14.031 INCHES NOMINAL |
| AFT RECESSED FACE DEPTH | 0.625 INCHES NOMINAL |
| KEYWAY QUANTITY | 1 |
| STREAMLINING DEVICE TYPE | FAIRWATER CAP |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 2186764 |
Restrictions/Controls & Freight Information | NSN 2010-00-068-7519
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127260 | PROPELLERS OR PROPELLER WHEELS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | HW | Military Sealift Command Washington, DC 20398-5100 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2010-00-068-7519
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | M2 | Military Sealift Common Items Requiring American Bureau of Shipbuilding (ABS) and/or United States Coast Guard (USCG) inspection and certification |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
