NSN 2040-00-272-2242 MILA22575, 492176, 620603AND620656
Product Details | FLUKED MARINE ANCHOR
2040-00-272-2242 An assembly with one or two fixed or pivoted hooks or flukes at its lower end that is attached to a ship or other floating vessel by a cable or a chain, and that, being cast overboard, lays hold of the bottom material and thus holds the ship or other floating vessel in a particular location.
Part Alternates: MILA22575, 492176, 620603AND620656, 164615, 2040-00-272-2242, 00-272-2242, 2040002722242, 002722242
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1963 | 00-272-2242 | 04944 ( ANCHOR, MARINE, FLUKED ) |

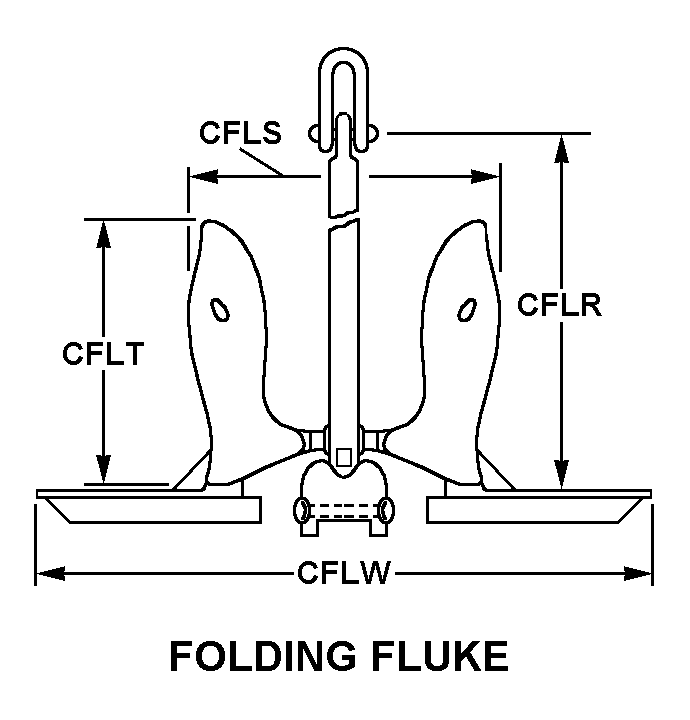

Drawings & Photos | NSN 2040-00-272-2242
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-00-272-2242
Technical Data | NSN 2040-00-272-2242
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| WEIGHT | 25000.000 POUNDS NOMINAL |
| FLUKE DESIGN | SWINGING |
| CONSTRUCTION METHOD AND LOCATION | FORGED SHANK OR CAST SHANK CAST CROWN CAST FLUKES |
| SHACKLE | INCLUDED |
| FLUKE HOLE | INCLUDED |
| BALANCING BAND | NOT INCLUDED |
| STYLE DESIGNATOR | 4 FOLDING FLUKE |
| SHANK LENGTH FROM CROWN FLAT BASE TO SHACKLE PIN HOLE CENTERLINE | 131.563 INCHES NOMINAL |
| OVERALL WIDTH ACROSS FLUKES | 109.250 INCHES NOMINAL |
| FLUKE LENGTH FROM CROWN FLAT BASE TO TIP | 95.375 INCHES NOMINAL |
| OVERALL WIDTH ACROSS STABILIZER | 192.688 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 2 TYPE AND 25 M WEIGHT |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY WEIGHT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILA22575 |
| MANUFACTURERS CODE | 80091 |
| DESIGN CONTROL REFERENCE | 620603AND620656 |
Restrictions/Controls & Freight Information | NSN 2040-00-272-2242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024510 | BOAT ANCHOR I/S |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 793 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-00-272-2242
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
