NSN 2040-00-287-5496 FIGN286, 00-287-5496, 002875496
Product Details | OPEN ROPE CHOCK
2040-00-287-5496 00001012040000000
Part Alternates: FIGN286, 2040-00-287-5496, 00-287-5496, 2040002875496, 002875496
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1963 | 00-287-5496 | 08259 ( CHOCK, ROPE, OPEN0 ) |

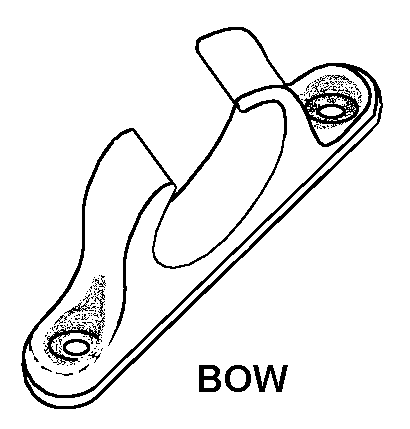

Drawings & Photos | NSN 2040-00-287-5496
Cross Reference | NSN 2040-00-287-5496
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FIGN286 | 76155 | MANHATTAN MARINE AND ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2040-00-287-5496
Related Products | NSN 2040-00-287-5496
Technical Data | NSN 2040-00-287-5496
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C7A BOW |
| MATERIAL | IRON |
| SURFACE TREATMENT | GALVANIZED |
| FABRICATION METHOD | CAST |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 3.000 INCHES NOMINAL |
| MAXIMUM ROPE DIAMETER ACCOMMODATED | 1.250 INCHES |
| OPENING HEIGHT | 1.375 INCHES NOMINAL |
| OPENING LENGTH | 2.625 INCHES NOMINAL |
| MOUNTING HOLE | PROVIDED |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.344 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2040-00-287-5496
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024580 | BOAT BIT/CHOCK MOORING/TOWING |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
