NSN 2040-00-526-7493 804-860481-8.000, 00-526-7493, 8048604818000
Product Details | VENTILATION DUCT TERMINAL
2040-00-526-7493 A fabricated device, generally constructed with a flared end and a straight or elbow type body. It may contain a damper and is designed to be used at the end of a ventilating duct to control the quantity and/or the direction of air flow.205156000001680000020400030Marine Hardware and Hull Items45200033Space and Water Heating Equipment56700034Building Components, Prefabricated
Part Alternates: 804-860481-8.000, 2040-00-526-7493, 00-526-7493, 2040005267493, 8048604818000, 005267493
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 01 JAN 1963 | 00-526-7493 | 15042 ( TERMINAL, VENTILATION DUCT ) |
Drawings & Photos | NSN 2040-00-526-7493
Demand History | NSN 2040-00-526-7493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2040-00-526-7493 | 2024-11-330 | 1 | US |
| 2040-00-526-7493 | 2020-01-20 | 10 | US |
Cross Reference | NSN 2040-00-526-7493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 804-860481-8.000 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2040-00-526-7493
Technical Data | NSN 2040-00-526-7493
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |

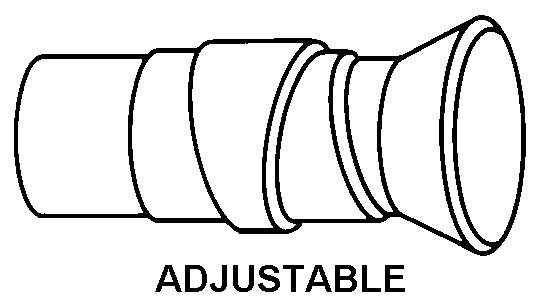

| STYLE DESIGNATOR | B1 ADJUSTABLE |
| END ATTACHMENT DIAMETER | 8.000 INCHES NOMINAL |
| DAMPER | NOT INCLUDED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY END ATTACHMENT DIAMETER |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 804-860481-8.000 |
Restrictions/Controls & Freight Information | NSN 2040-00-526-7493
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-00-526-7493
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
