NSN 2040-01-327-1343 MS168223, MS16822-3, P0052 UB
Product Details | CLOSED ROPE CHOCK
2040-01-327-1343 00001012040000000
Part Alternates: MS168223, MS16822-3, P0052 UB, P0052UB, 33UBMK41015104628, 33UB-MK4-101-5104628, 2040-01-327-1343, 01-327-1343, 2040013271343, 013271343
Ship and Marine Equipment | Marine Hardware and Hull Items
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | 07 OCT 1990 | 01-327-1343 | 08258 ( CHOCK, ROPE, CLOSED0 ) |
Drawings & Photos | NSN 2040-01-327-1343
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2040-01-327-1343
Related Products | NSN 2040-01-327-1343
Technical Data | NSN 2040-01-327-1343
| Characteristic | Specifications |
|---|---|

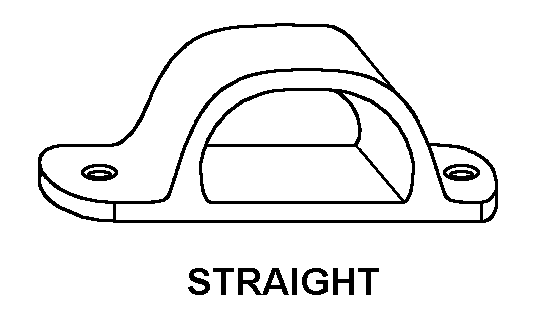

| STYLE DESIGNATOR | C12 STRAIGHT |
| MATERIAL | BRONZE |
| FABRICATION METHOD | CAST |
| OVERALL LENGTH | 12.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| MAXIMUM ROPE DIAMETER ACCOMMODATED | 1.750 INCHES |
| OPENING HEIGHT | 1.875 INCHES NOMINAL |
| OPENING LENGTH | 6.500 INCHES NOMINAL |
| MOUNTING HOLE | PROVIDED |
| MOUNTING HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | NAVY MK4 UTILITY BOAT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16822-3 |
Restrictions/Controls & Freight Information | NSN 2040-01-327-1343
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 024580 | BOAT BIT/CHOCK MOORING/TOWING |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 810 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | N | Ship's parts. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2040-01-327-1343
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
