NSN 2330-00-921-6381 009216381
Product Details | BOMB TRAILER
2330-00-921-6381 A trailer equipped with racks specifically designed to transport aerial bombs. Excludes TRAILER, LIFT, BOMB.
Part Alternates: 009216381
and 2590." | Airfield Specialized Trucks and Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-921-6381 | 16821 ( TRAILER, BOMB ) |
Drawings & Photos | NSN 1740-00-921-6381
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2330-00-921-6381
Related Products | NSN 2330-00-921-6381
Technical Data | NSN 2330-00-921-6381
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 13.00 TONS |
| PLATFORM LOADING HEIGHT ADJUSTABILITY | NONADJUSTABLE |
| OVERALL LENGTH | 220.000 INCHES NOMINAL |
| OVERALL WIDTH | 70.500 INCHES NOMINAL |
| DISTANCE FROM BODY FRONT TO DRAWBAR COUPLER CENTER | 66.000 INCHES NOMINAL |
| SUSPENSION TYPE | INDIVIDUAL LEAF SPRING AND ROCKER ARM W/STUD SPINDLE AXLE |

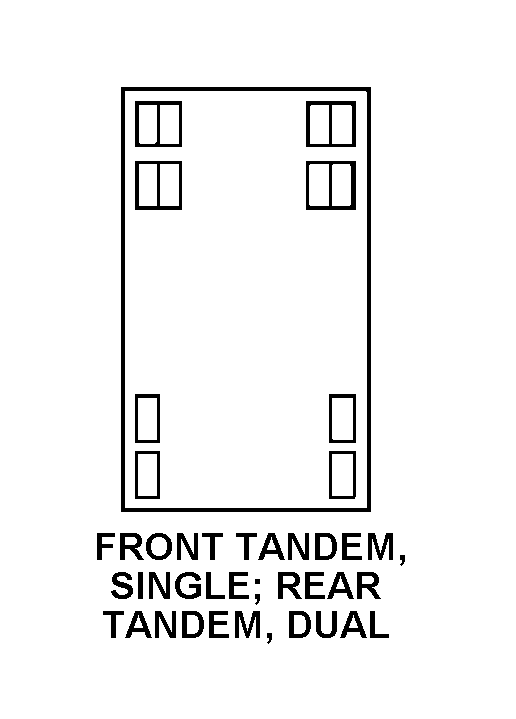

| WHEEL ARRANGEMENT STYLE | 30 FRONT TANDEM, SINGLE, REAR TANDEM, DUAL |
| SERVICE BRAKE TYPE | AIR-HYDRAULIC |
| PARKING BRAKES | INCLUDED |
| DRAWBAR TYPE | HINGED TONGUE |
| DRAWBAR CHARACTERISTIC | FIXED |
| DRAWBAR COUPLER TYPE | LUNETTE |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| TOWING PINTLE HOOK | NOT INCLUDED |
| SPECIAL FEATURES | USED FOR CONVEYING ASSEMBLIES BETWEEN THE PRELOADING SUPPORT RACK AND THE AREA FOR REMOVING ASSEMBLIES TO BE LOADED ONTO AIRCRAFT |
| III SUPPLEMENTARY FEATURES | 12/24 VDC |
| III REFERENCE DATA AND LITERATURE | 35D3-2-20-1 |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | F310772-500 |
Restrictions/Controls & Freight Information | NSN 2330-00-921-6381
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
