NSN 2330-01-024-7180 SF2240DSACHALLE10, SF2240DSA-CHALLE-10, 01-024-7180
Product Details | VAN SEMITRAILER
2330-01-024-7180 A semitrailer with an inclosed body which may be insulated, designed to protect cargo and equipment from the elements and pilferage and/or to provide working and/or living quarters for personnel. Excludes van type semitrailers equipped for specific functions.
Part Alternates: SF2240DSACHALLE10, SF2240DSA-CHALLE-10, 2330-01-024-7180, 01-024-7180, 2330010247180, 010247180
Ground Effect Vehicles, Motor Vehicles, Trailers, and Cycles | Trailers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 23 | 19 JUL 1976 | 01-024-7180 | 12977 ( SEMITRAILER, VAN ) |
Drawings & Photos | NSN 2330-01-024-7180
Cross Reference | NSN 2330-01-024-7180
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SF2240DSA-CHALLE-10 | 40670 | MILLER TRAILERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2330-01-024-7180
Technical Data | NSN 2330-01-024-7180
| Characteristic | Specifications |
|---|---|
| CAPACITY RATING | 27.50 TONS |
| BODY MATERIAL | ALUMINUM AND STEEL AND WOOD |
| INSULATED FEATURE | NOT INCLUDED |
| INSIDE LENGTH | 465.200 INCHES NOMINAL |
| INSIDE WIDTH | 92.000 INCHES NOMINAL |
| INSIDE HEIGHT | 96.125 INCHES NOMINAL |
| DOOR LOCATION AND QUANTITY | 2 REAR END AND 1 RIGHT-HAND SIDE DOOR |
| TAILGATE | NOT INCLUDED |
| FLOOR LEVEL DESIGN | FLAT |
| LOADING RAMP | NOT INCLUDED |
| BODY FRONT SHAPE | STRAIGHT |
| INTERIOR ELECTRIC OUTLET | NOT INCLUDED |
| VENTILATION FEATURE | NOT INCLUDED |
| OVERALL LENGTH | 480.000 INCHES NOMINAL |
| OVERALL WIDTH | 96.000 INCHES NOMINAL |
| OVERALL HEIGHT | 150.000 INCHES NOMINAL |
| COUPLING TYPE | FIFTH WHEEL UPPER PLATE W/KINGPIN |
| DISTANCE FROM KINGPIN CENTER TO FRONT END | 36.000 INCHES |
| SUSPENSION TYPE | THROUGH SHAFT AXLE |
| CONVERTER DOLLY | NOT INCLUDED |

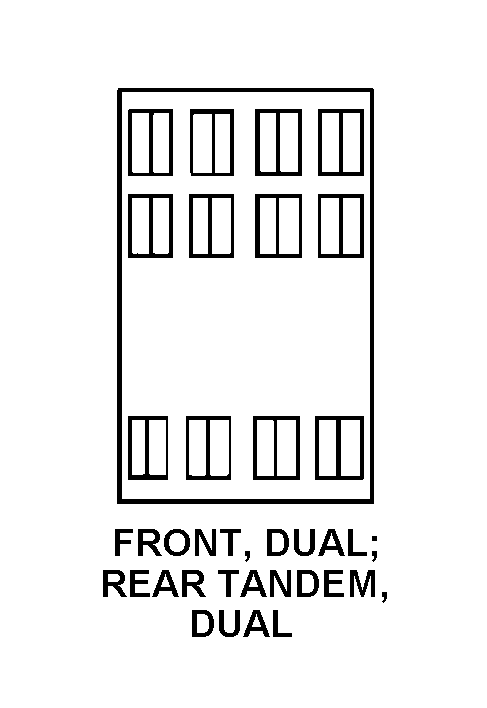

| WHEEL ARRANGEMENT STYLE | 23 FRONT, DUAL, REAR TANDEM, DUAL |
| SERVICE BRAKE TYPE | AIR-HYDRAULIC |
| PARKING BRAKES | INCLUDED |
| RETRACTABLE SUPPORT FEATURE | INCLUDED |
| OPERATION METHOD | MANUAL |
| AUXILIARY SUPPORT TYPE | JACK |
| TOWING PINTLE HOOK | NOT INCLUDED |
| SPECIAL FEATURES | 2433 CU FT,MOBILE LAB UNIT |
Restrictions/Controls & Freight Information | NSN 2330-01-024-7180
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
