NSN 2510-00-370-8097 28906911, 2890691-1, 00-370-8097
Product Details | DIRECT ACTION SHOCK ABSORBER
2510-00-370-8097 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Part Alternates: 28906911, 2890691-1, 2510-00-370-8097, 00-370-8097, 2510003708097, 003708097
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 08 MAR 1974 | 00-370-8097 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |

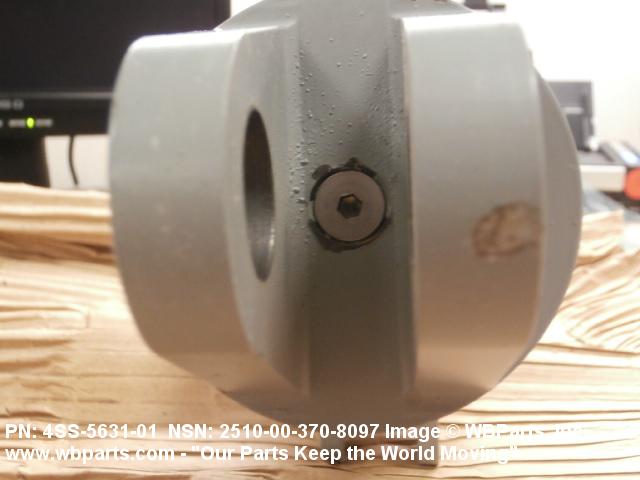

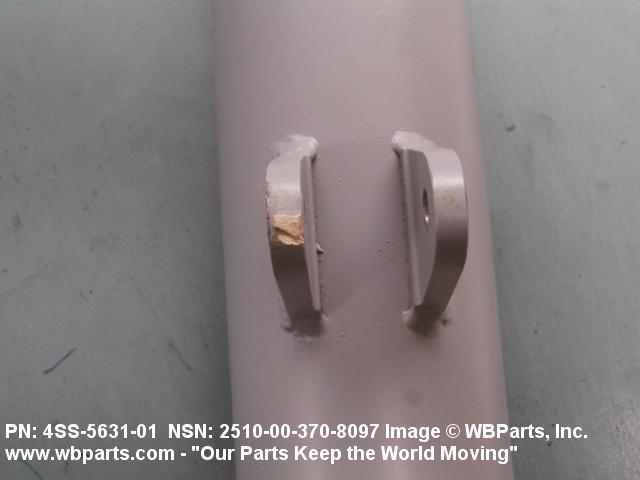

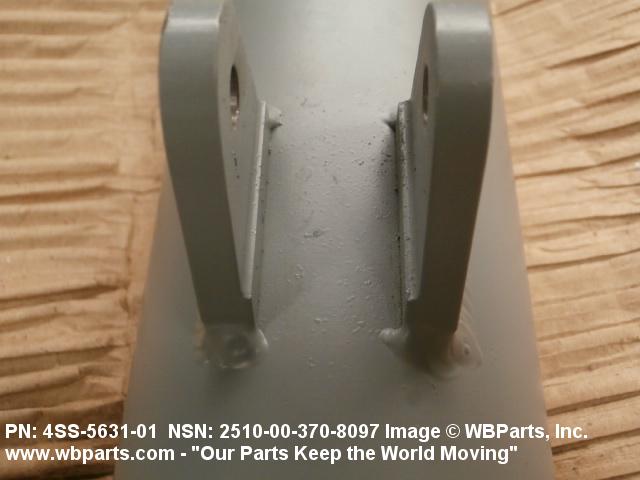

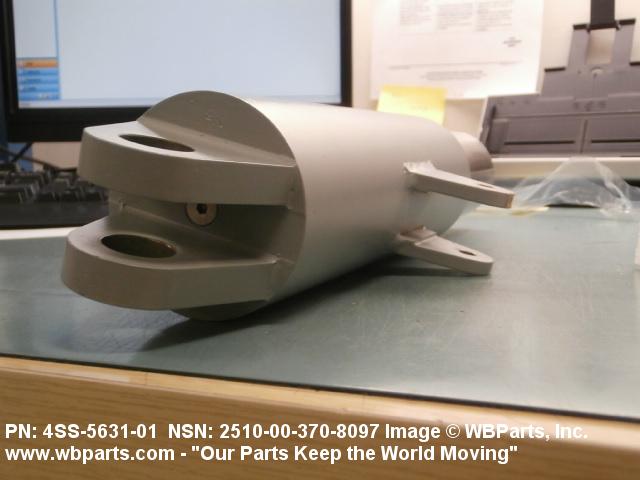

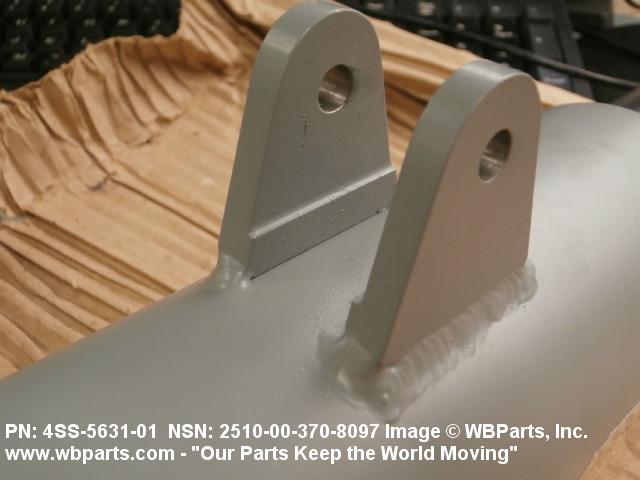

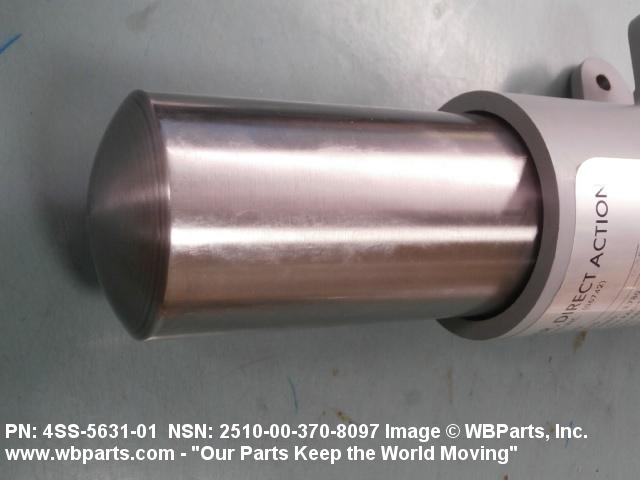

Drawings & Photos | NSN 2510-00-370-8097
Demand History | NSN 2510-00-370-8097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2510-00-370-8097 | 2021-10-280 | 2 | DIBBS |
| 2510-00-370-8097 | 2017-05-134 | 5 | DIBBS |
| 2510-00-370-8097 | 2014-10-303 | 3 | DIBBS |
| 2510-00-370-8097 | 2014-09-272 | 2 | DIBBS |
| 2510-00-370-8097 | 2014-09-267 | 2 | United States |
| 2510-00-370-8097 | 2014-04-104 | 2 | DIBBS |
| 2510-00-370-8097 | 2014-01-21 | 1 | DIBBS |
| 2510-00-370-8097 | 2013-12-336 | 1 | DIBBS |
| 2510-00-370-8097 | 2013-07-210 | 1 | DIBBS |
| 2510-00-370-8097 | 2012-07-206 | 5 | DIBBS |
| 2510-00-370-8097 | 2010-09-260 | 5 | DIBBS |
| 2510-00-370-8097 | 2010-04-92 | 3 | DIBBS |
| 2510-00-370-8097 | 2010-02-32 | 13 | DIBBS |
Cross Reference | NSN 2510-00-370-8097
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2890691-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-00-370-8097
Related Products | NSN 2510-00-370-8097
Technical Data | NSN 2510-00-370-8097
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| CYLINDER END CONNECTION STYLE | 16 FORK |
| CYLINDER END NOMINAL INSIDE DIAMETER | 0.880 INCHES |
| CYLINDER END NOMINAL LARGEST INSIDE DIAMETER | 0.880 INCHES |
| CYLINDER END NOMINAL FORK ARM THICKNESS | 0.500 INCHES |
| CYLINDER END NOMINAL RIGHT FORK ARM THICKNESS | 0.500 INCHES |
| CYLINDER END NOMINAL FORK SPAN WIDTH | 0.770 INCHES |
| NOMINAL EXTENDED LENGTH | 15.000 INCHES |
| NOMINAL COMPRESSED LENGTH | 10.500 INCHES |
Restrictions/Controls & Freight Information | NSN 2510-00-370-8097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019500 | AUTO SHOCK ABSORBERS R PARTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-00-370-8097
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
