NSN 2510-00-447-5903 98116HX, 00-447-5903, 004475903
Product Details | LEAF SPRING ASSEMBLY SHACKLE
2510-00-447-5903 An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END.
Part Alternates: 98116HX, 2510-00-447-5903, 00-447-5903, 2510004475903, 004475903
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-447-5903 | 22100 ( SHACKLE, LEAF SPRING ASSEMBLY ) |

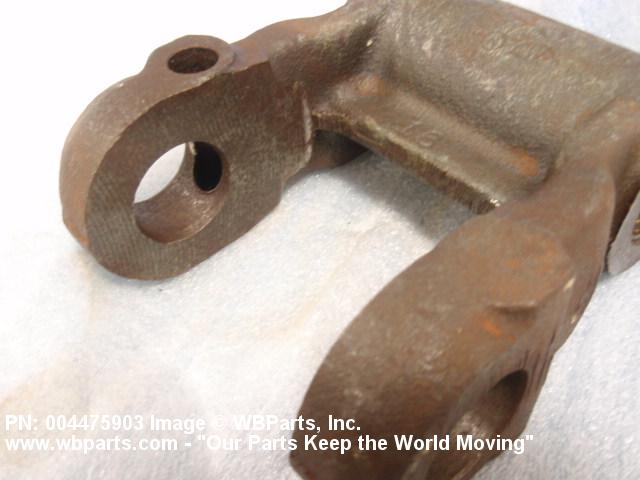

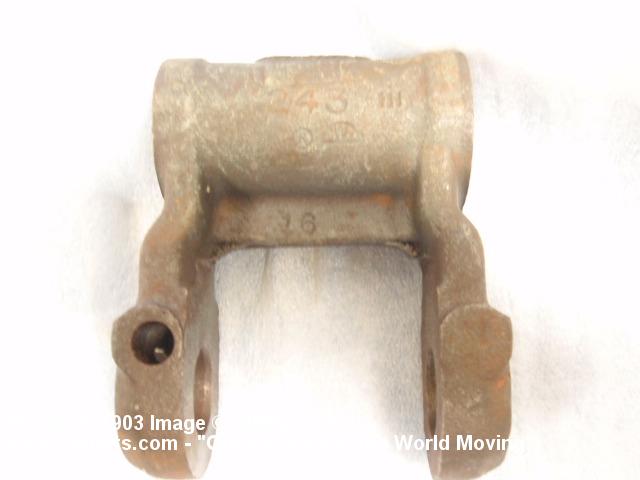

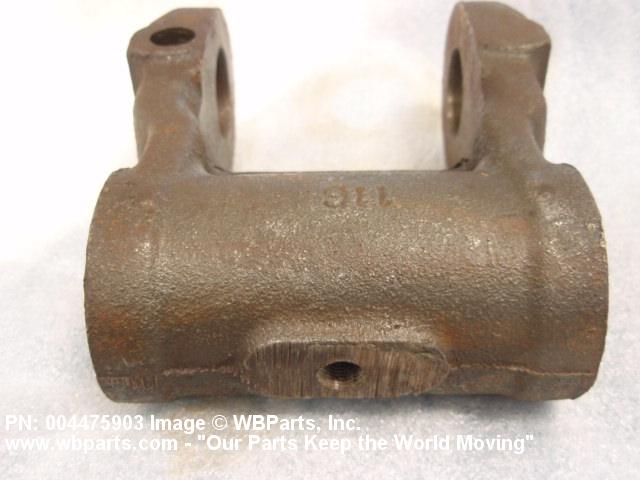

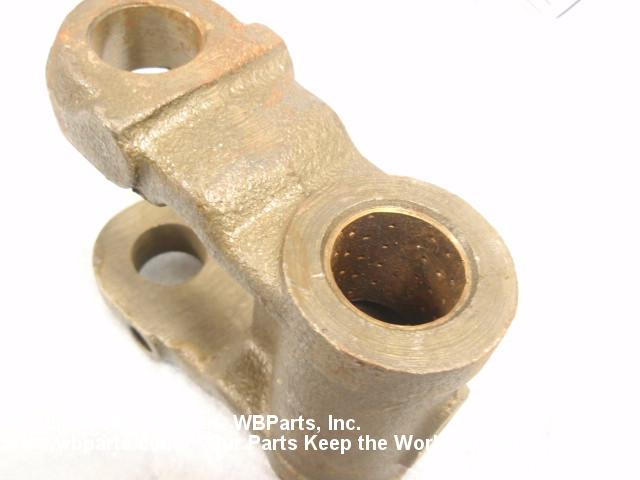

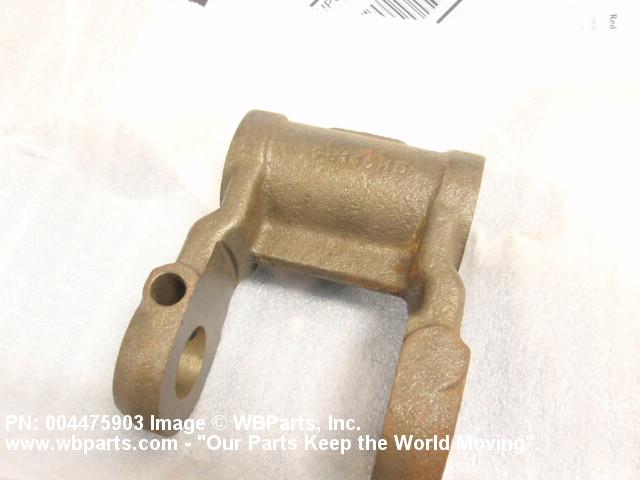

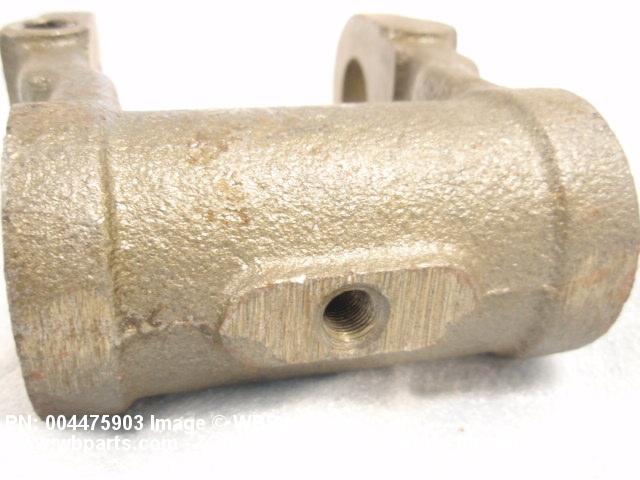

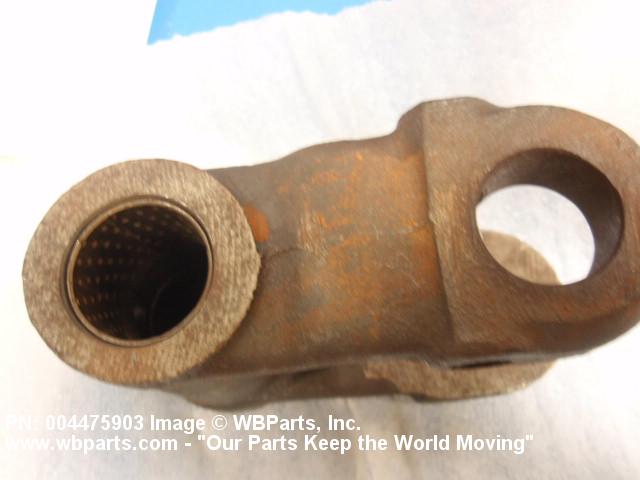

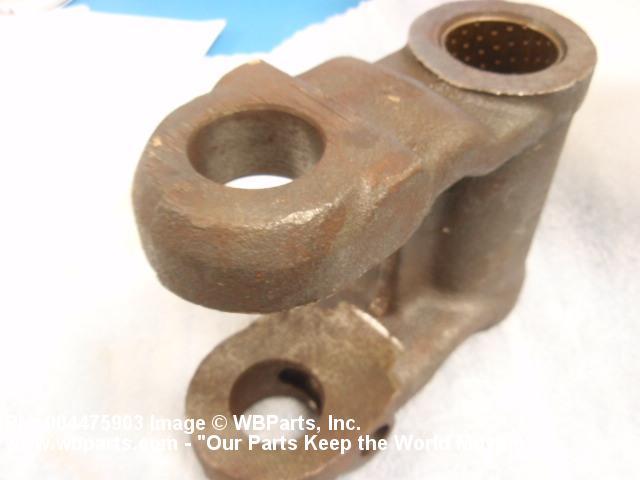

Drawings & Photos | NSN 2510-00-447-5903
Demand History | NSN 2510-00-447-5903
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 98116HX | 2010-06-176 | 2 | United States |
| 98116HX | 2010-06-169 | 2 | US |
Cross Reference | NSN 2510-00-447-5903
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98116HX | 89346 | NAVISTAR INTL CORP TRUCK BR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2510-00-447-5903
Technical Data | NSN 2510-00-447-5903
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | N4 NON SEPARABLE NON PIN LOCKING |
| OVERALL WIDTH | 4.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 3.500 INCHES NOMINAL |
| WIDTH BETWEEN LEGS | 3.000 INCHES NOMINAL |
| LEG HOLE DIAMETER | 1.110 INCHES NOMINAL |
| ATTACHING END WIDTH | 4.000 INCHES NOMINAL |
| ATTACHING END HOLE DIAMETER | 1.245 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
Restrictions/Controls & Freight Information | NSN 2510-00-447-5903
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 019470 | AUTO SHACKLES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-00-447-5903
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
