NSN 2510-01-119-4952 KPT847B, KP-T-847-B, T847B
Product Details | FIFTH WHEEL KINGPIN
2510-01-119-4952 A metal item designed for mounting to a fifth wheel coupler or fifth wheel upper plate to provide a towing and pivot connection between a truck-tractor or dolly and the semitrailer.
Part Alternates: KPT847B, KP-T-847-B, T847B, T-847-B, 2510-01-119-4952, 01-119-4952, 2510011194952, 011194952
Vehicular Equipment Components | Vehicular Cab, Body, and Frame Structural Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 25 SEP 1981 | 01-119-4952 | 11407 ( KINGPIN, FIFTH WHEEL ) |

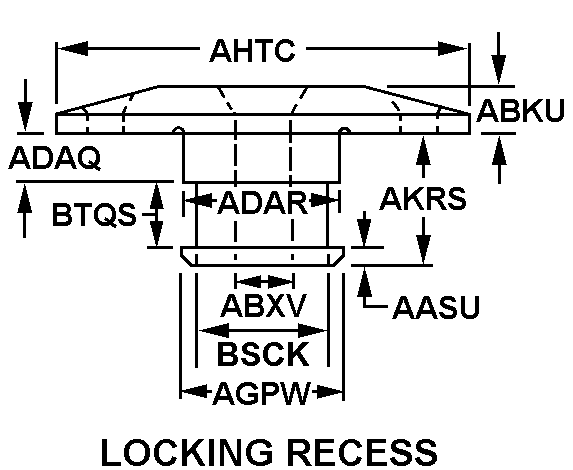

Drawings & Photos | NSN 2510-01-119-4952
Demand History | NSN 2510-01-119-4952
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KPT847B | 2009-07-210 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2510-01-119-4952
Related Products | NSN 2510-01-119-4952
Technical Data | NSN 2510-01-119-4952
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | 3 LOCKING RECESS |
| HEAD HEIGHT | 0.562 INCHES NOMINAL |
| FLANGE THICKNESS | 1.188 INCHES NOMINAL |
| BODY LENGTH | 1.312 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.479 INCHES MINIMUM AND 4.489 INCHES MAXIMUM |
| HEAD OUTSIDE DIAMETER | 4.360 INCHES MINIMUM AND 4.390 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 12.000 INCHES NOMINAL |
| PIN LENGTH | 3.375 INCHES NOMINAL |
| LOCKING RECESS OUTSIDE DIAMETER | 3.495 INCHES MINIMUM AND 3.505 INCHES MAXIMUM |
| LOCKING RECESS LENGTH | 1.500 INCHES NOMINAL |
| MOUNTING END TYPE | FLANGE |
| FLANGE SHAPE | ROUND |
| MOUNTING FLANGE BOLT HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 1.250 INCHES NOMINAL |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON 8.500 IN. BOLT CIRCLE |
Restrictions/Controls & Freight Information | NSN 2510-01-119-4952
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018920 | AUTO KINGBOLTS/KINGPINS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2510-01-119-4952
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
