NSN 2520-00-653-9217 7699942, 00-653-9217, 006539217
Product Details | POSITIVE CLUTCH HALF
2520-00-653-9217 That portion of a CLUTCH,POSITIVE which transmits or receives motion or power by engagement with the mating member.
Part Alternates: 7699942, 2520-00-653-9217, 00-653-9217, 2520006539217, 006539217
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-653-9217 | 52084 ( CLUTCH HALF, POSITIVE, VEHICULAR ) |
Drawings & Photos | NSN 2520-00-653-9217
Cross Reference | NSN 2520-00-653-9217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7699942 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2520-00-653-9217
Technical Data | NSN 2520-00-653-9217
| Characteristic | Specifications |
|---|---|

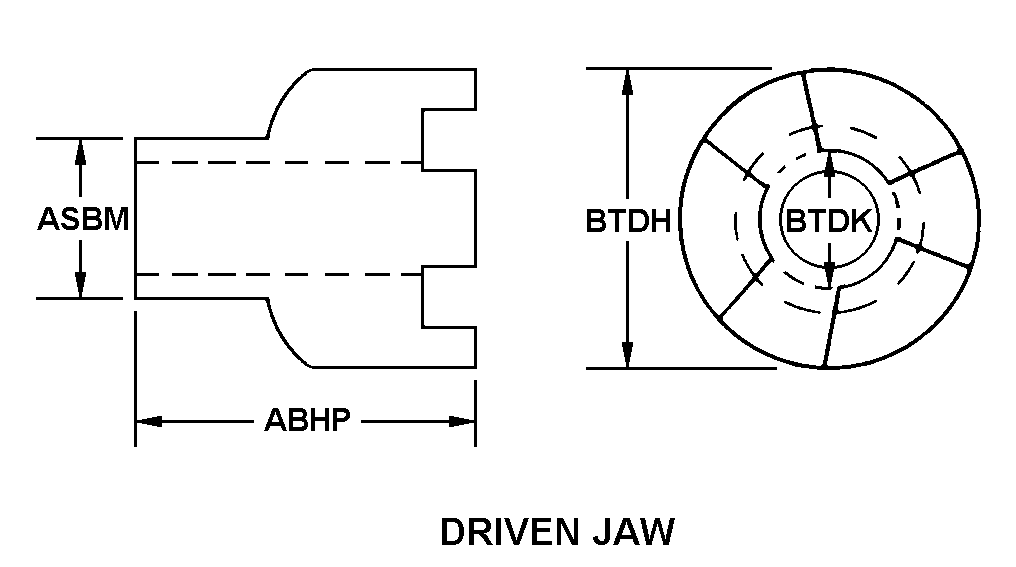

| STYLE DESIGNATOR | A8 DRIVEN JAW |
| OVERALL LENGTH | 4.219 INCHES NOMINAL |
| JAW CIRCLE OUTSIDE DIAMETER | 4.000 INCHES NOMINAL |
| JAW CIRCLE INSIDE DIAMETER | 3.515 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT SPLINE |
| SPLINE QUANTITY | 6 |
| SPLINE MAJOR DIAMETER | 1.376 INCHES NOMINAL |
| (NON-CORE DATA) MATERIAL HARDNESS RATING | 58.0 ROCKWELL C MINIMUM AND 62.0 ROCKWELL C MAXIMUM |
| (NON-CORE DATA) JAW QUANTITY | 3 |
| (NON-CORE DATA) JAW PROJECTION LENGTH | 1.562 INCHES NOMINAL |
| (NON-CORE DATA) JAW ARC LENGTH IN DEG | 120.0 |
| (NON-CORE DATA) MATERIAL | STEEL,MIL-S-13048,FS-8617,FS-8620 |
| (NON-CORE DATA) FSC APPLICATION DATA | POWER TAKEOFF,VEHICULAR |
| (NON-CORE DATA) SPLINE MINOR DIAMETER | 1.168 INCHES NOMINAL |
| (NON-CORE DATA) SPLINE LENGTH | 1.562 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7699942 |
