Product Details | ACCESS COVER
2520-00-741-1975 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 007411975
Vehicular Equipment Components | Vehicular Power Transmission Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 00-741-1975 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 2520-00-741-1975
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 2520-00-741-1975
2520-00-741-2044, 2520-00-741-2223, 2520-00-741-2265, 2520-00-741-2404, 2520-00-741-2407
Technical Data | NSN 2520-00-741-1975
| Characteristic | Specifications |
|---|---|

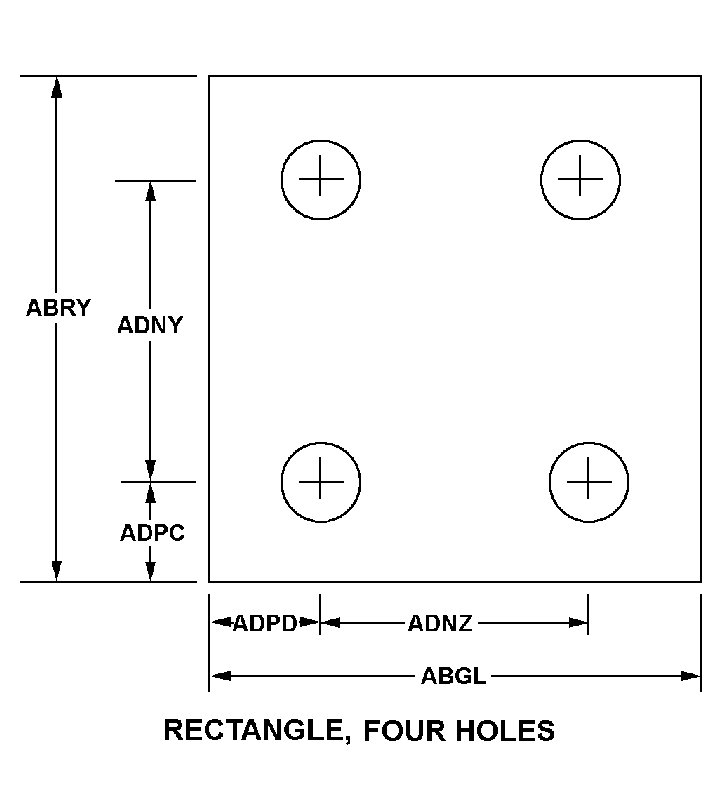

| PERIPHERAL SHAPE STYLE | 13 RECTANGLE, FOUR HOLES |
| WIDTH | 1.810 INCHES NOMINAL |
| LENGTH | 1.310 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG LENGTH | 0.250 INCHES NOMINAL |
| DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG WIDTH | 0.250 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG LENGTH | 0.813 INCHES NOMINAL |
| DISTANCE BETWEEN HOLES ALONG WIDTH | 1.313 INCHES NOMINAL |
| CORNER RADIUS | 0.250 INCHES NOMINAL |

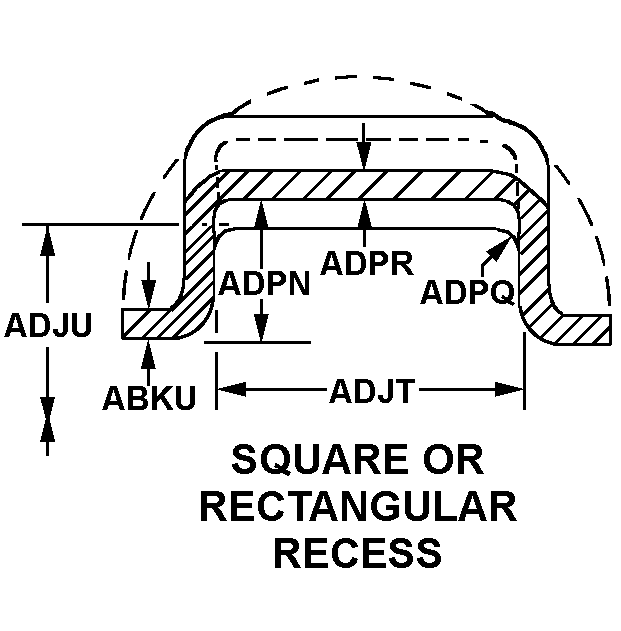

| CROSS-SECTIONAL SHAPE STYLE | 6 SQUARE OR RECTANGULAR RECESS |
| INSIDE WIDTH | 1.000 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.190 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.050 INCHES NOMINAL |
| BODY THICKNESS | 0.060 INCHES NOMINAL |
| MATERIAL | STEEL |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.220 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 2520-00-741-1975
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
