NSN 2520-00-991-2990 106545, 00-991-2990, 009912990

Product Details | DIRT AND LIQUID DEFLECTOR


2520-00-991-2990 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial

Part Alternates: 106545, 2520-00-991-2990, 00-991-2990, 2520009912990, 009912990

Vehicular Equipment Components | Vehicular Power Transmission Components

Supply Group (FSG) NSN Assign. NIIN
25 01 JAN 1962 00-991-2990

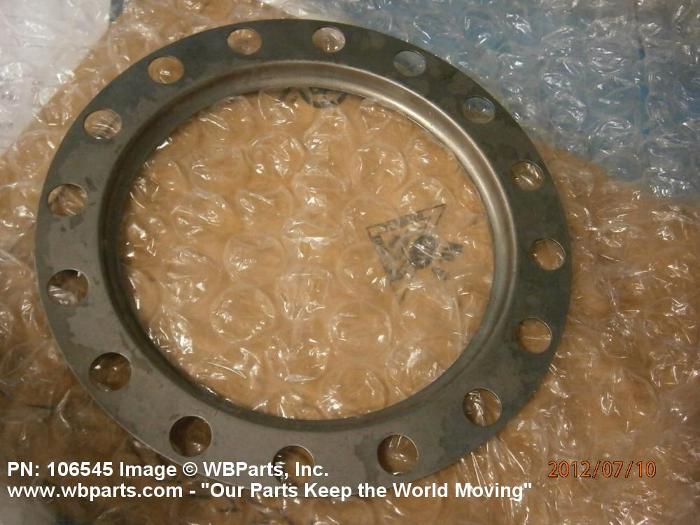

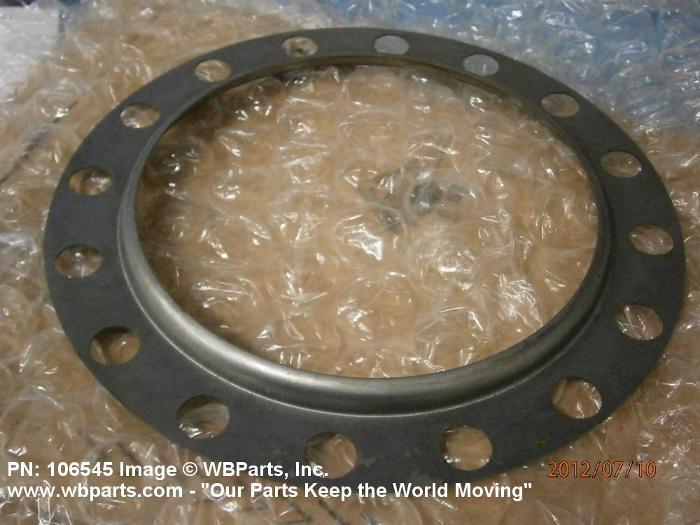

Drawings & Photos | NSN 2520-00-991-2990



Demand History | NSN 2520-00-991-2990


Part Number Request Date QTY Origin
2520-00-991-2990 2012-06-26 4 United States

Cross Reference | NSN 2520-00-991-2990


Part Number Cage Code Manufacturer
106545 12603 CLARK EQUIPMENT CO
106545 40152 VME AMERICAS INC SUB OF VME GROUP N V
106545 77237 DANA OFF HIGHWAY PRODUCTS, LLC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 2520-00-991-2990


Technical Data | NSN 2520-00-991-2990


Characteristic Specifications

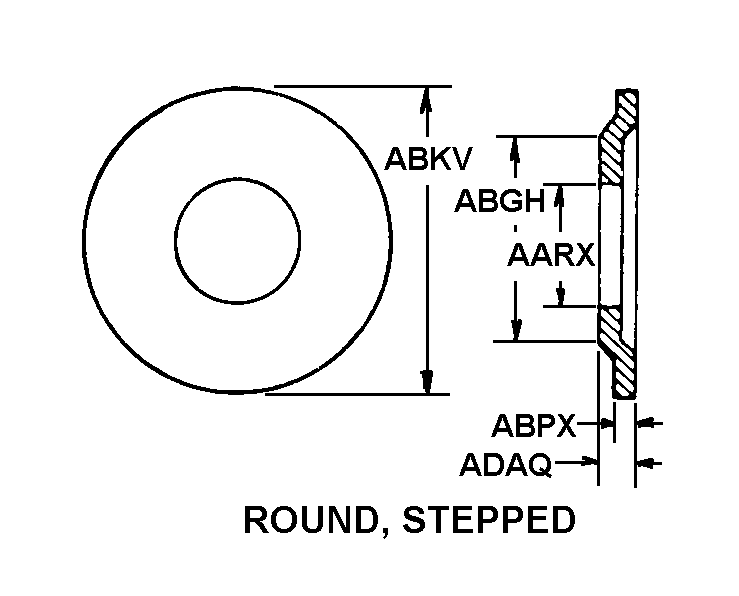

STYLE DESIGNATOR 10 ROUND, STEPPED
INSIDE DIAMETER 6.125 INCHES NOMINAL
STEP DIAMETER ANY ACCEPTABLE
OUTSIDE DIAMETER 8.750 INCHES NOMINAL
MATERIAL THICKNESS 0.031 INCHES NOMINAL
BODY LENGTH 0.406 INCHES NOMINAL
MATERIAL STEEL
MOUNTING HOLE TYPE PLAIN
MOUNTING HOLE QUANTITY 16
MOUNTING HOLE DIAMETER 0.625 INCHES NOMINAL
BOLT CIRCLE DIAMETER 8.000 INCHES NOMINAL
ANGLE BETWEEN CENTERLINES OF MOUNTING HOLES IN DEG 22.5
III END ITEM IDENTIFICATION TRUCK,FORKLIFT,ANTHONY MODEL MLT6-2,NSN 3930003271575,DIESEL ENGINE DRIVEN

Restrictions/Controls & Freight Information | NSN 2520-00-991-2990


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 019490 AUTO PARTS: SHIELDS,BRAKE DUST
Less than car load rating
Less than truck load rating B 300.0
Water commodity Code 585 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2520-00-991-2990


Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
Z
EA : Each
