NSN 2530-00-359-0816 F11067, FC11067, 561955R1
Product Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD
2530-00-359-0816 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: F11067, FC11067, 561955R1, 561955R91, 647282, 7697473, 98MJB1, 2530-00-359-0816, 00-359-0816, 2530003590816, 003590816
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-359-0816 | 18736 ( PUSH ROD, HYDRAULIC BRAKE MASTER CYLINDER ) |
Drawings & Photos | NSN 2530-00-359-0816
Cross Reference | NSN 2530-00-359-0816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 561955R1 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 561955R91 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 561955R91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 647282 | 34623 | AM GENERAL, LLC |
| 7697473 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 98MJB1 | 05415 | LINDE LIFT TRUCK CORP. |
| 98MJB1 | 556A6 | LINDE MATERIAL HANDLING NORTH AMERICA CORP |
| F11067 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FC11067 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-359-0816
Technical Data | NSN 2530-00-359-0816
| Characteristic | Specifications |
|---|---|
| MATERIAL | ANY ACCEPTABLE |
| LINK ROD CONNECTING END STYLE | B1 THREADED INTERNAL, HEXAGON |

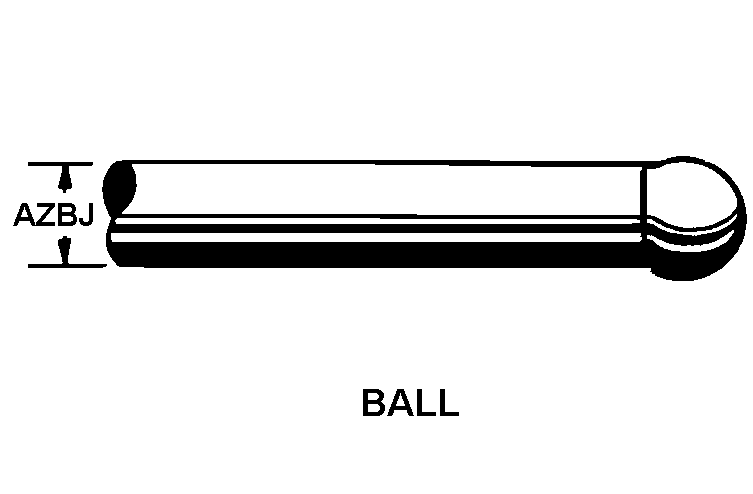

| PISTON SOCKET END STYLE | C1 BALL |
| ROD DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 3.527 INCHES MINIMUM AND 3.567 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2530-00-359-0816
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 128400 | RODS CONTROL W/W/O HOUSINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
