NSN 2530-00-374-1694 279R5DEG1, 00-374-1694, 003741694
Product Details | PNEUMATIC TIRE WHEEL RIM
2530-00-374-1694 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: 279R5DEG1, 2530-00-374-1694, 00-374-1694, 2530003741694, 003741694
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-374-1694 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-00-374-1694
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-374-1694
Technical Data | NSN 2530-00-374-1694
| Characteristic | Specifications |
|---|---|
| TIRE DIAMETER FOR WHICH DESIGNED | 15.000 INCHES |
| GROOVE DEPTH | 1.453 INCHES MINIMUM AND 1.547 INCHES MAXIMUM |
| OVERALL WIDTH | 8.789 INCHES MINIMUM AND 8.913 INCHES MAXIMUM |
| EFFECTIVE WIDTH | 7.604 INCHES MINIMUM AND 7.728 INCHES MAXIMUM |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
| TIRE RETAINING RING TYPE | SIDE-LOCK |

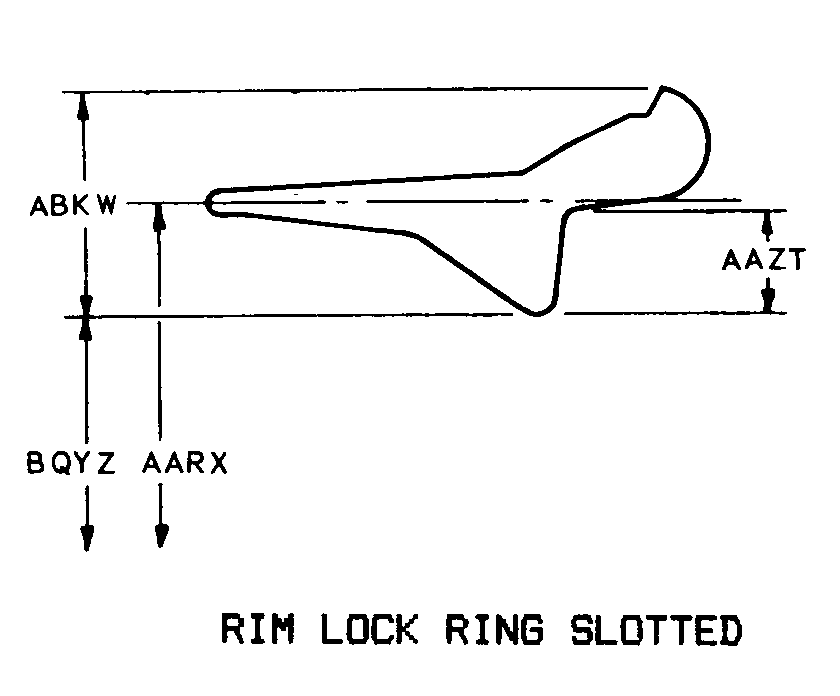

| RING STYLE | C5 RIM LOCK RING SLOTTED |
| VALVE HOLE SHAPE | SLOTTED |
| III FSC APPLICATION DATA | WHEEL ASSY,TRAILER |
| MANUFACTURERS CODE | 22332 |
| DESIGN CONTROL REFERENCE | 279R5DEG1 |
Restrictions/Controls & Freight Information | NSN 2530-00-374-1694
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
