Product Details | PISTON PIN
2530-00-399-6390 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 203553, 338708, 957M5, 2530-00-399-6390, 00-399-6390, 2530003996390, 003996390
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-399-6390 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2530-00-399-6390
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-399-6390
Technical Data | NSN 2530-00-399-6390
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL FED QQ-S-633 FS1016 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

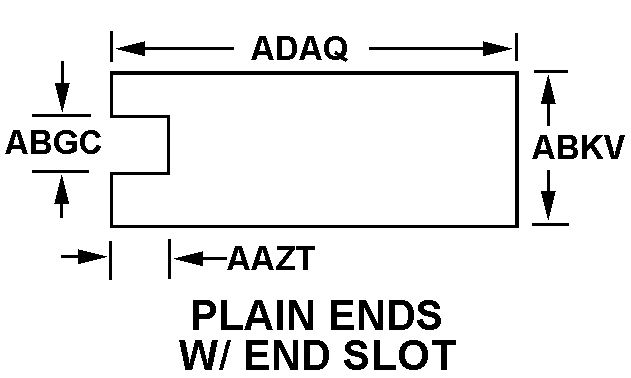

| BODY STYLE | 17C PLAIN ENDS W/END SLOT |
| SLOT DEPTH | 0.0937 INCHES NOMINAL |
| SLOT WIDTH | 0.0625 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.50000 INCHES MINIMUM AND 0.50020 INCHES MAXIMUM |
| BODY LENGTH | 2.0000 INCHES NOMINAL |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.3125 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 5 ONE HOLE IN SOLID PIN |
| HOLE DIAMETER | 0.0625 INCHES NOMINAL |
| HOLE DEPTH | 0.0937 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.0937 INCHES NOMINAL |
| III FSC APPLICATION DATA | AIR COMPRESSOR,BRAKE SYSTEM |
| MANUFACTURERS CODE | 06853 |
| DESIGN CONTROL REFERENCE | 203553 |
