NSN 2530-00-422-9354 F1701, F1701007, F1701-007
Product Details | MASTER HYDRAULIC BRAKE CYLINDER ASSEMBLY
2530-00-422-9354 A device consisting of a reservoir and/or CYLINDER, HYDRAULIC BRAKE, MASTER with other components necessary to displace fluid from a central source for actuating the slave or wheel cylinders of a hydraulic brake system.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: F1701, F1701007, F1701-007, FF1701, 169039, 169039H1, 57PC17, 6CFF1701, 2530-00-422-9354, 00-422-9354, 2530004229354, 004229354
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-422-9354 | 11007 ( CYLINDER ASSEMBLY, HYDRAULIC BRAKE, MASTER ) |

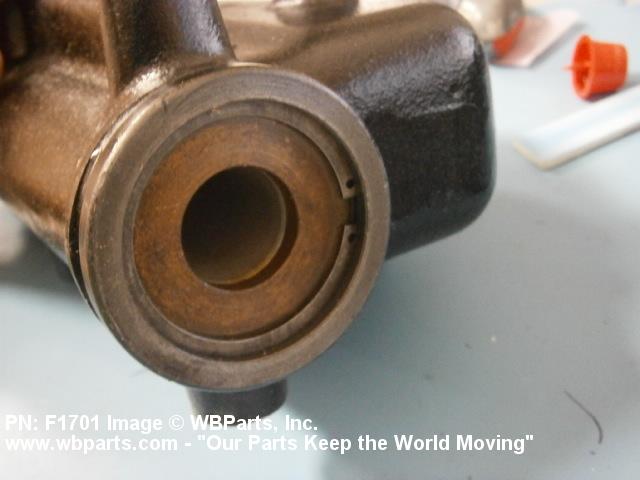

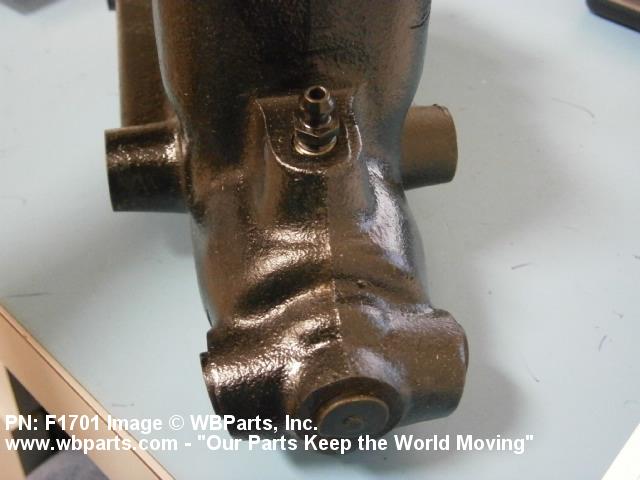

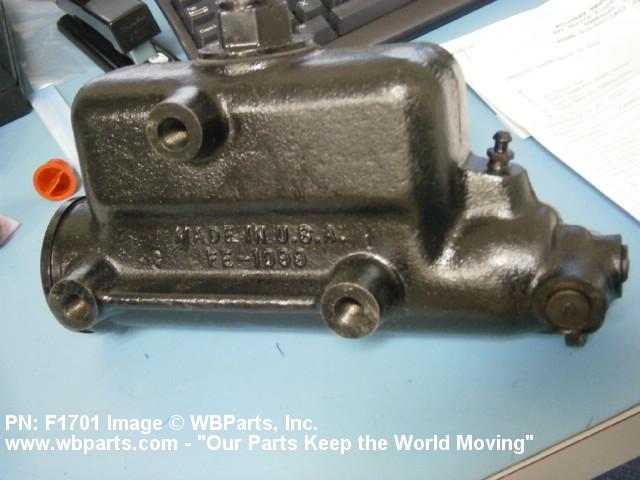

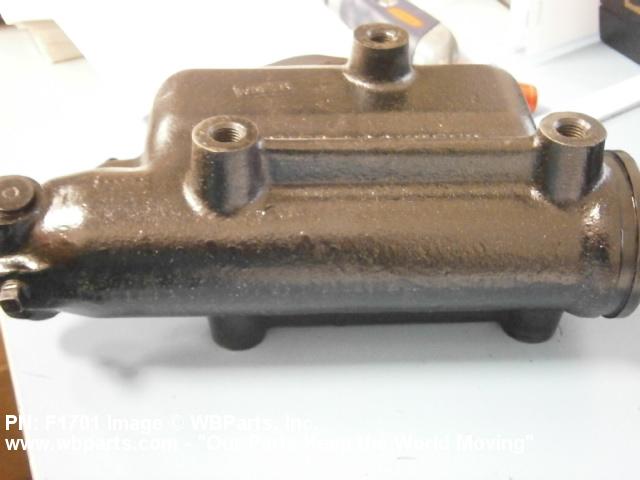

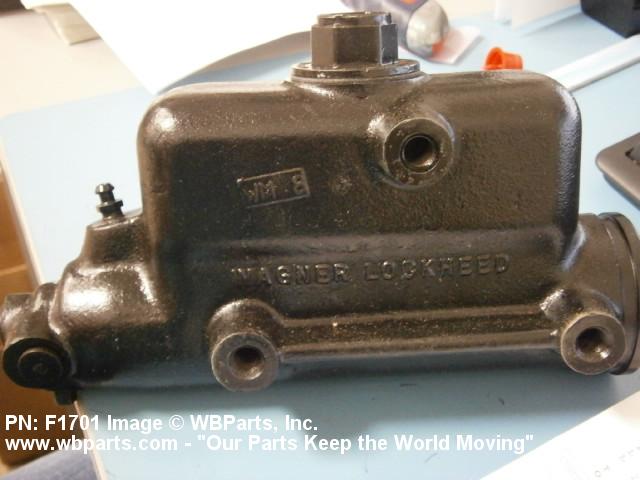

Drawings & Photos | NSN 2530-00-422-9354
Demand History | NSN 2530-00-422-9354
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-00-422-9354 | 2024-02-45 | 1 | CA |
| 2530-00-422-9354 | 2022-09-255 | 2 | CA |
| 2530-00-422-9354 | 2022-06-168 | 1 | MY |
| 2530-00-422-9354 | 2020-04-98 | 1 | US |
| 2530-00-422-9354 | 2012-12-348 | 2 | US |
| 169039H1 | 2012-07-202 | 2 | United States |
| 2530-00-422-9354 | 2012-03-73 | 2 | United States |
| 2530-00-422-9354 | 2010-08-231 | 1 | us |
Cross Reference | NSN 2530-00-422-9354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 169039 | 29510 | KOMATSU AMERICAN INTL CO |
| 169039H1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 169039H1 | 29510 | KOMATSU AMERICAN INTL CO |
| 57PC17 | 45152 | OSHKOSH CORPORATION |
| 57PC17 | 75Q65 | OSHKOSH DEFENSE, LLC |
| 6CFF1701 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| F1701 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| F1701-007 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
| FF1701 | 63477 | FEDERAL MOGUL CORP SUB WAGNER BRAKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2530-00-422-9354
Related Products | NSN 2530-00-422-9354
Technical Data | NSN 2530-00-422-9354
| Characteristic | Specifications |
|---|---|
| OVERALL WIDTH | 3.875 INCHES NOMINAL |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| EXTENDED LENGTH | 9.531 INCHES NOMINAL |
| COMPRESSED LENGTH | 9.531 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE DIAMETER | 1.750 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| (NON-CORE DATA) SECOND PISTON ROD END LUBRICATION FACILITY | NOT INCLUDED |
| MOUNTING TYPE AND LOCATION | FLANGE CENTER SECTION |
| MOUNTING PROVISION | THREADED MOUNTING HOLES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 13 THREE HOLE TRIANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 4.750 INCHES NOMINAL |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.375 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.750 INCHES NOMINAL |
| MOUNTING FACILITY THREAD SERIES DESIGNATOR | UNF |
| MOUNTING FACILITY THREAD DIAMETER | 0.438 INCHES NOMINAL |
| MOUNTING FACILITY THREAD QUANTITY PER INCH | 20 |
| MOUNTING FACILITY THREAD CLASS | 2B |
| MOUNTING FACILITY THREAD DIRECTION | RIGHT-HAND |
| MOUNTING FACILITY THREAD LENGTH | 0.625 INCHES NOMINAL |
| PORT LOCATION AND QUANTITY | 3 CYLINDER HEAD END |
| PORT STYLE | 5 GASKET SEAL |
| PORT THREAD SERIES DESIGNATOR | UNF |
| PORT THREAD DIAMETER | 0.500 INCHES NOMINAL |
| PORT THREAD QUANTITY PER INCH | 20 |
| PORT THREAD CLASS | 2B |
| SEAT ANGLE IN DEG | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| BLEEDING FEATURE QUANTITY | 1 |
| RESERVOIR TYPE | INTEGRAL |
| ACTUATION METHOD | DIRECT |
| STOPLIGHT SWITCH THREAD SERIES DESIGNATOR | NPT |
| STOPLIGHT SWITCH THREAD QUANTITY PER INCH | 27 |
| STOPLIGHT SWITCH NOMINAL PIPE THREAD SIZE | 0.125 INCHES |
| FEATURES PROVIDED | FILLER PLUG |
| SPECIAL FEATURES | INDENTICAL MOUNTING PROVISIONS ON BOTH LEFT AND RIGHTSIDE |
| III END ITEM IDENTIFICATION | 3805-00-075-3312 |
| MANUFACTURERS CODE | 63477 |
| DESIGN CONTROL REFERENCE | F1701 |
Restrictions/Controls & Freight Information | NSN 2530-00-422-9354
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018400 | AUTO BRAKES/SHOES R PADS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2530-00-422-9354
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
