NSN 2530-00-496-2631 44380, 443801, 44380-1
Product Details | PNEUMATIC TIRE WHEEL
2530-00-496-2631 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000
Part Alternates: 44380, 443801, 44380-1, 44380D1, P14, 2530-00-496-2631, 00-496-2631, 2530004962631, 004962631
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-496-2631 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-00-496-2631
Cross Reference | NSN 2530-00-496-2631
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-496-2631
Technical Data | NSN 2530-00-496-2631
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 16.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 4.750 INCHES MINIMUM AND 4.875 INCHES MAXIMUM |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 5 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| RIM | NOT INCLUDED |
| RIM STYLE | 32 |
| GROOVE DEPTH | 1.155 INCHES MINIMUM AND 1.218 INCHES MAXIMUM |
| OVERALL WIDTH | 6.641 INCHES NOMINAL |
| EFFECTIVE WIDTH | 5.500 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | NOT INCLUDED |

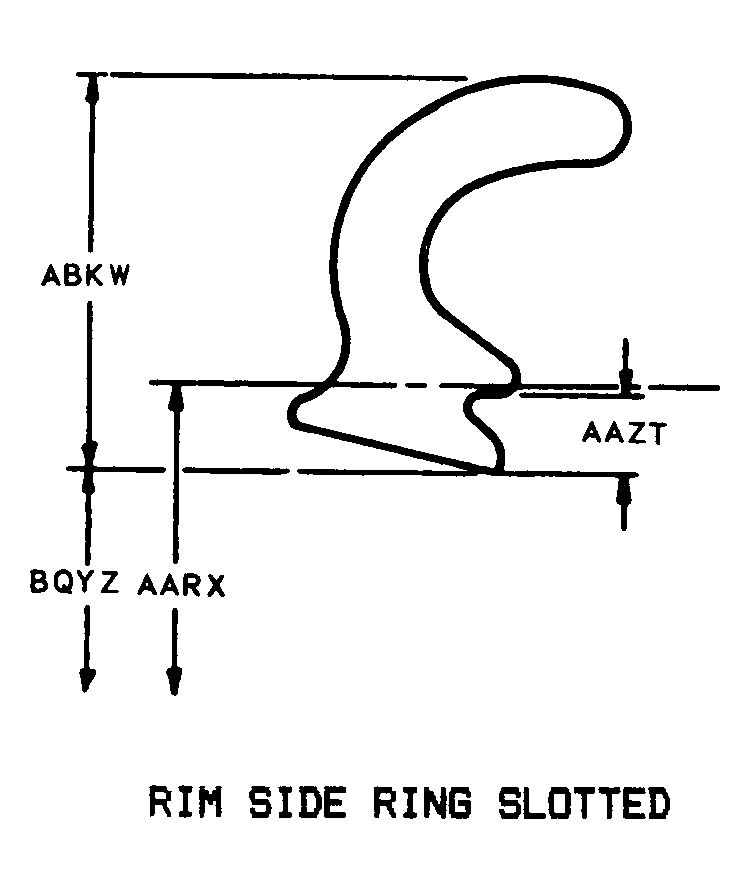

| RING STYLE | D4 RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | ROUND |
| HOLE LOCATION | LOCATED 4 IN. APPROX FROM OUTSIDE OF WHEEL MTG FACE |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 4.970 INCHES MINIMUM AND 4.980 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 5 |
| MOUNTING HOLE DIAMETER | 1.255 INCHES MINIMUM AND 1.285 INCHES MAXIMUM |
| MOUNTING BOLT CIRCLE DIAMETER | 6.871 INCHES MINIMUM AND 6.879 INCHES MAXIMUM |
| MANUFACTURERS CODE | 51665 |
| DESIGN CONTROL REFERENCE | P14 |
Restrictions/Controls & Freight Information | NSN 2530-00-496-2631
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197592 | WHEELS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
