Product Details | PNEUMATIC TIRE WHEEL
2530-00-603-5768 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000
Part Alternates: MS530446, MS53044-6, B65950D8, B65950DK, WH0246, 103513R91, 20465950D8, 204-65950D8, 2610, 2-6-10, 65950D1, 65950D8, 7388820, 2530-00-603-5768, 00-603-5768, 2530006035768 , 006035768
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1961 | 00-603-5768 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-00-603-5768
Demand History | NSN 2530-00-603-5768
Cross Reference | NSN 2530-00-603-5768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103513R91 | 31007 | NAVISTAR INTL CORP |
| 103513R91 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 2-6-10 | 78880 | FLXIBLE CO THE |
| 204-65950D8 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 2530006035768 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 65950D1 | 22852 | SPALLA INC |
| 65950D8 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 65950D8 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 7388820 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| B65950D8 | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| B65950D8 | 71282 | BUDD CO THE |
| B65950DK | 09386 | ALLIEDSIGNAL INC ALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| MS53044-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WH0246 | 62161 | HUTCHINSON INDUSTRIES, INC. DIV DEFENSE AND SECURITY DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 2530-00-603-5768
Related Products | NSN 2530-00-603-5768
2530-00-603-7224, 2530-00-603-7228, 2530-00-603-9515, 2530-00-604-1081, 2530-00-604-1661
Technical Data | NSN 2530-00-603-5768
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 20.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.813 INCHES NOMINAL |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 5 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| GROOVE DEPTH | 1.600 INCHES NOMINAL |
| OVERALL WIDTH | 8.926 INCHES NOMINAL |
| EFFECTIVE WIDTH | 7.562 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | INCLUDED |

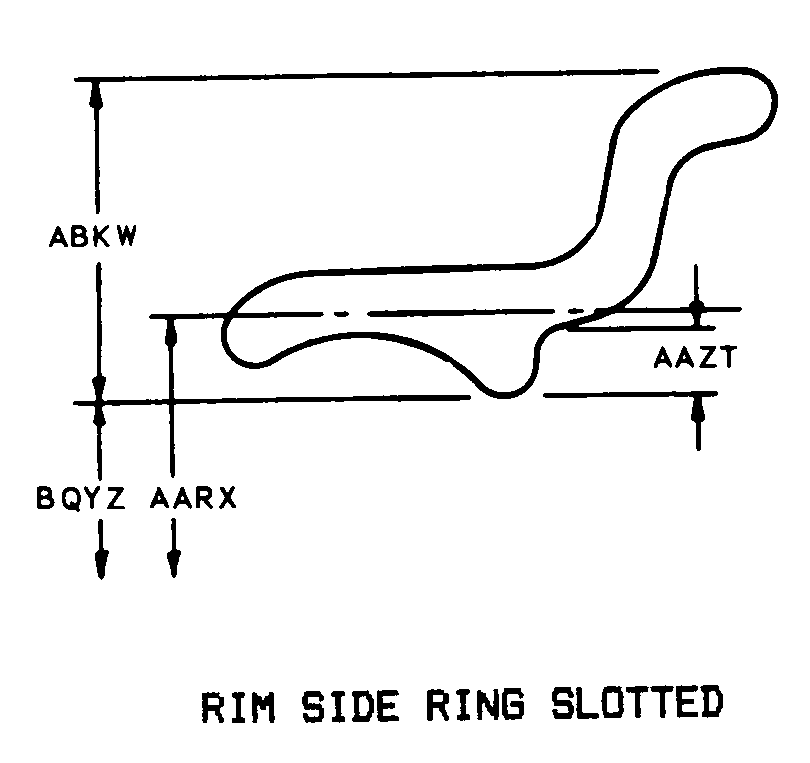

| RING STYLE | D6 RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| BEARINGS | NOT INCLUDED |
| PILOT HOLE DIAMETER | 8.725 INCHES MINIMUM AND 8.729 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 1.210 INCHES MINIMUM AND 1.220 INCHES MAXIMUM |
| MOUNTING BOLT CIRCLE DIAMETER | 11.243 INCHES MINIMUM AND 11.257 INCHES MAXIMUM |
| III FSC APPLICATION DATA | WHEELS,VEHICULAR |
