NSN 2530-00-752-9001 45441D10, 583W1, 7529001
Product Details | AUTOMOTIVE WHEEL SIDE RING
2530-00-752-9001 A one-piece metal device designed to fit the outer circumference of a wheel or wheel rim. It is held in position by a locking ring or has self-locking features for positioning and retaining a pneumatic tire. It may also be split and/or held by bolts and studs.
Part Alternates: 45441D10, 583W1, 7529001, 83771, 2530-00-752-9001, 00-752-9001, 2530007529001, 007529001
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-752-9001 | 10969 ( RING, SIDE, AUTOMOTIVE WHEEL ) |
Drawings & Photos | NSN 2530-00-752-9001
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-752-9001
Technical Data | NSN 2530-00-752-9001
| Characteristic | Specifications |
|---|---|

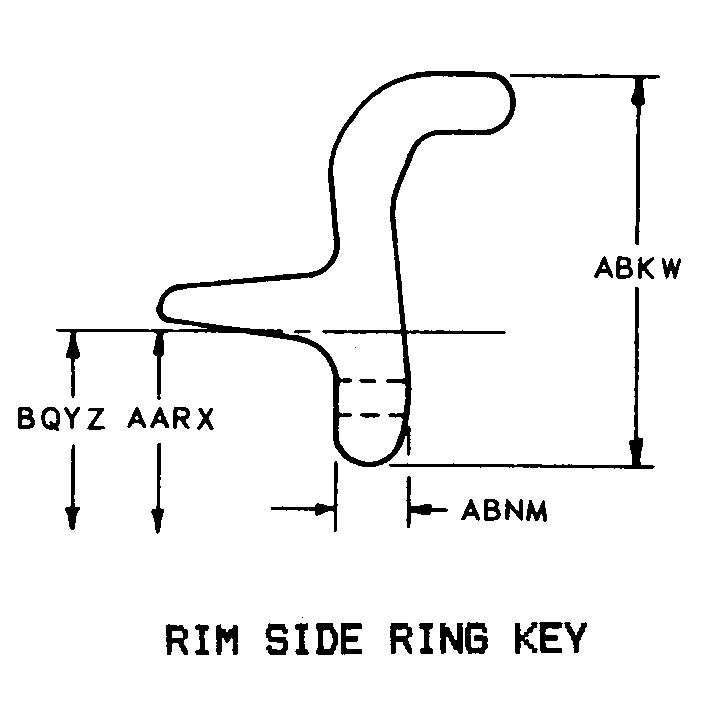

| CROSS-SECTIONAL SHAPE STYLE | D9 RIM SIDE RING KEY |
| INSIDE DIAMETER | 1.705 INCHES MINIMUM AND 1.735 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.230 INCHES NOMINAL |
| THICKNESS | 0.250 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 61.905 INCHES MINIMUM AND 61.999 INCHES MAXIMUM |
| DESIGN TYPE | ENDLESS BOLTED |
| HOLE QUANTITY | 16 |
| HOLE DIAMETER | ANY ACCEPTABLE |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON A 18.312 IN. BOLT CIRCLE |
| SIZE DESIGNATOR | 20X8 |
| MATERIAL | STEEL,FED,QQ-S-633,C 1010 |
| SURFACE TREATMENT | ZINC OR PHOSPHATE COATED |
| VALVE CLEARANCE NOTCH QUANTITY | 2 |
| LEVERAGE SLOT | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2530-00-752-9001
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 020020 | AUTO WHEEL PARTS ETC |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 581 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
