NSN 2530-00-849-3939 LTCT2427, 00-849-3939, 008493939
Product Details | BRAKE SHOE WEAR PLATE
2530-00-849-3939 A rigid replaceable metal item, designed to be mounted on the actuating or cam end of a brake shoe to receive the thrust of the operating cam.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: LTCT2427, 2530-00-849-3939, 00-849-3939, 2530008493939, 008493939
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 04 JAN 1967 | 00-849-3939 | 11388 ( PLATE, WEAR, BRAKE SHOE ) |
Drawings & Photos | NSN 2530-00-849-3939
Cross Reference | NSN 2530-00-849-3939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LTCT2427 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-849-3939
Technical Data | NSN 2530-00-849-3939
| Characteristic | Specifications |
|---|---|

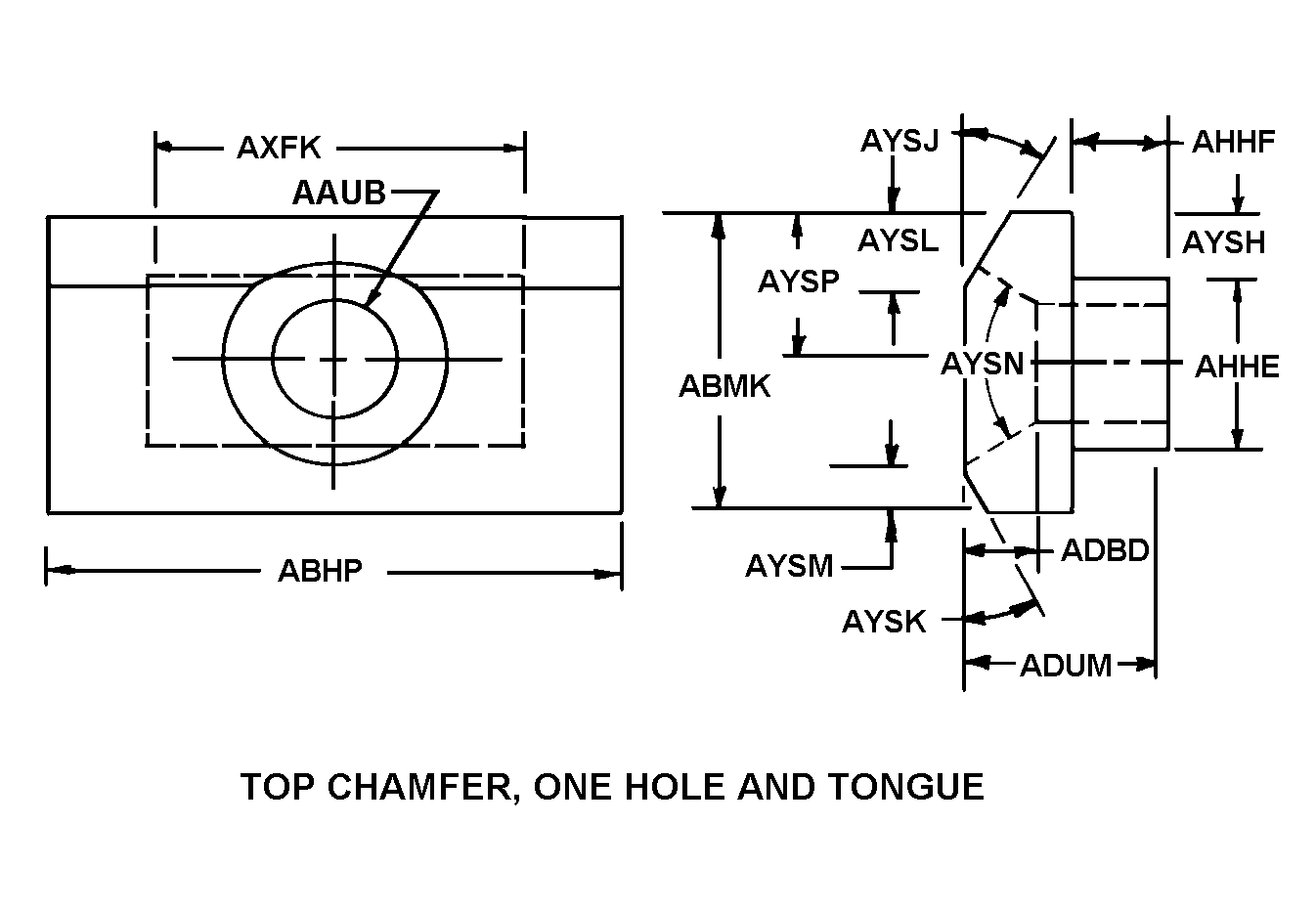

| STYLE DESIGNATOR | 3 TOP CHAMFER, ONE HOLE AND TONGUE |
| HOLE DIAMETER | 4.750 INCHES NOMINAL |
| OVERALL LENGTH | 7.490 INCHES MINIMUM AND 7.495 INCHES MAXIMUM |
| TONGUE LENGTH | 6.747 INCHES MINIMUM AND 6.749 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2530-00-849-3939
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
