NSN 2530-00-937-2541 10165545, 00-937-2541, 009372541
Product Details | PNEUMATIC TIRE WHEEL
2530-00-937-2541 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.202253000002610000000
Part Alternates: 10165545, 2530-00-937-2541, 00-937-2541, 2530009372541, 009372541
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 14 MAY 1972 | 00-937-2541 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
Drawings & Photos | NSN 2530-00-937-2541
Cross Reference | NSN 2530-00-937-2541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10165545 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2530-00-937-2541
Technical Data | NSN 2530-00-937-2541
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 20.000 INCHES |
| TIRE | INCLUDED |
| SIZE DESIGNATOR | 9.00 |
| PLY RATING | 8 |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONCAVE |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.188 INCHES NOMINAL |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 6 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| RIM | INCLUDED |
| RIM STYLE | 28 |
| GROOVE DEPTH | 1.600 INCHES NOMINAL |
| OVERALL WIDTH | 8.837 INCHES NOMINAL |
| EFFECTIVE WIDTH | 7.562 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | INCLUDED |

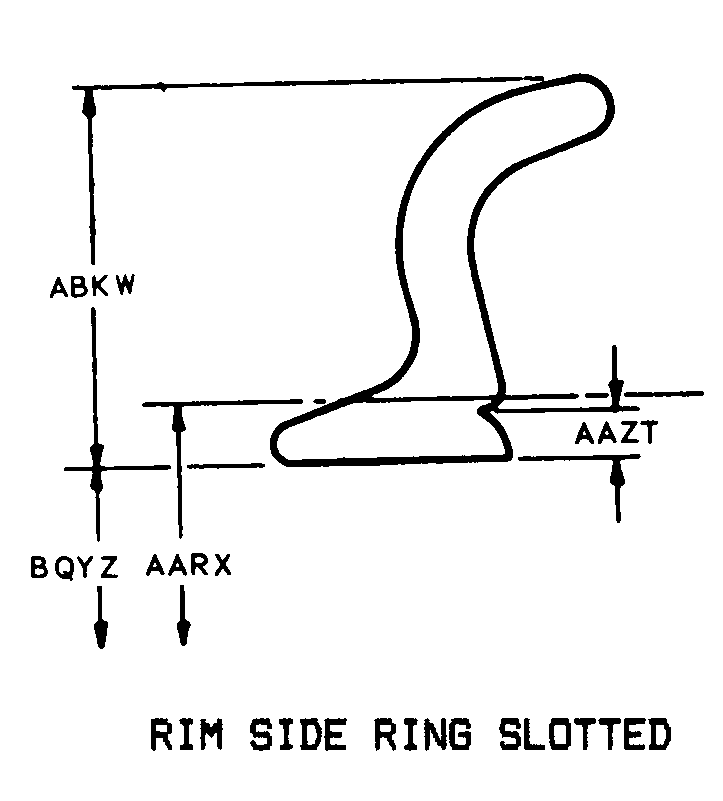

| RING STYLE | D5 RIM SIDE RING SLOTTED |
| INSIDE DIAMETER | 19.805 INCHES NOMINAL |
| SLOT DEPTH | 0.285 INCHES NOMINAL |
| OVERALL HEIGHT | 1.947 INCHES NOMINAL |
| INSIDE CIRCUMFERENCE | 62.220 INCHES NOMINAL |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 6.471 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 6 |
| MOUNTING HOLE DIAMETER | 1.215 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 8.750 INCHES NOMINAL |
| III FSC APPLICATION DATA | MOBILITY KIT,LAUNCHER,GUIDED MISSILE |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10165545 |
