NSN 2530-01-080-2376 FD6145, FD-6145, 8758254
Product Details | WHEEL HYDRAULIC BRAKE CYLINDER
2530-01-080-2376 A cylinder designed to house the piston and other necessary component parts of a CYLINDER ASSEMBLY, HYDRAULIC BRAKE, WHEEL.20216300032Aircraft Wheel and Brake Systems25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components
Part Alternates: FD6145, FD-6145, 8758254, 2530-01-080-2376, 01-080-2376, 2530010802376, 010802376
Vehicular Equipment Components | Vehicular Brake, Steering, Axle, Wheel, and Track Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 21 JUL 1979 | 01-080-2376 | 10861 ( CYLINDER, HYDRAULIC BRAKE, WHEEL ) |

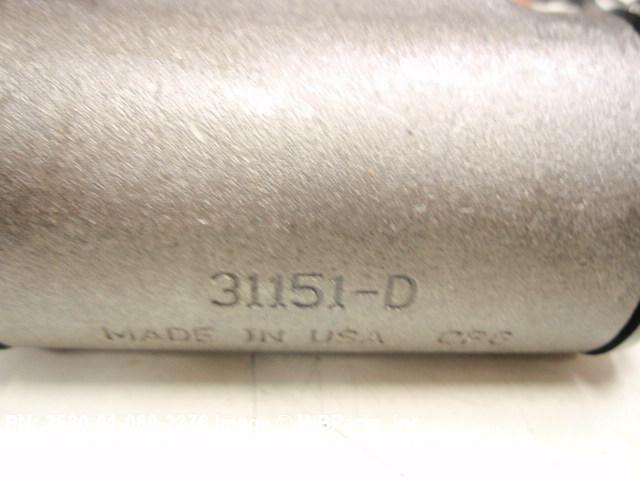

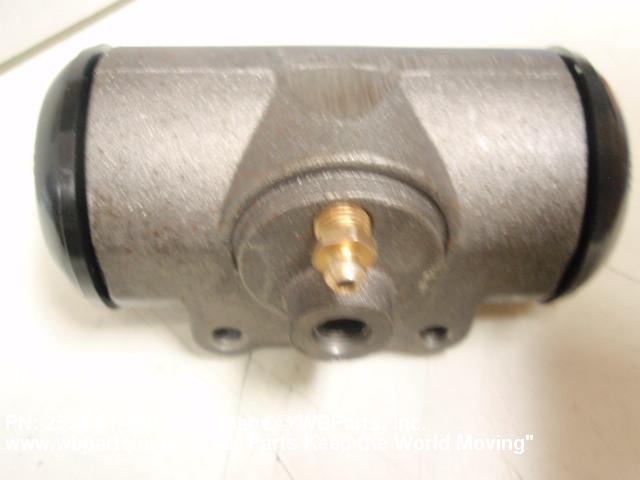

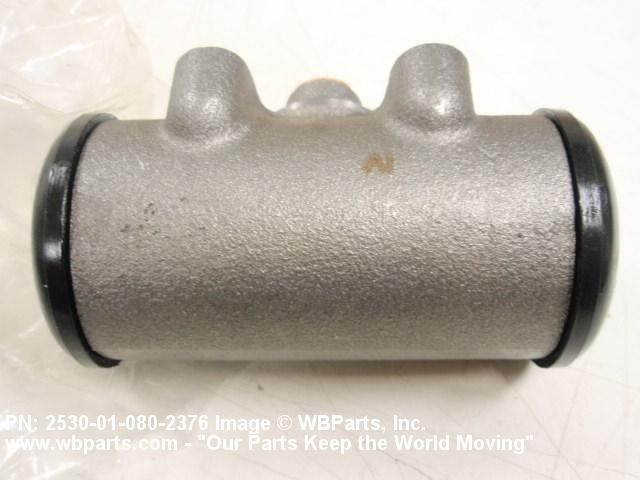

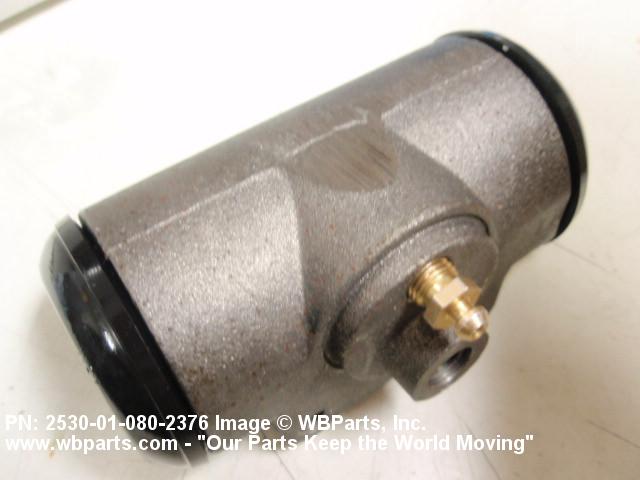

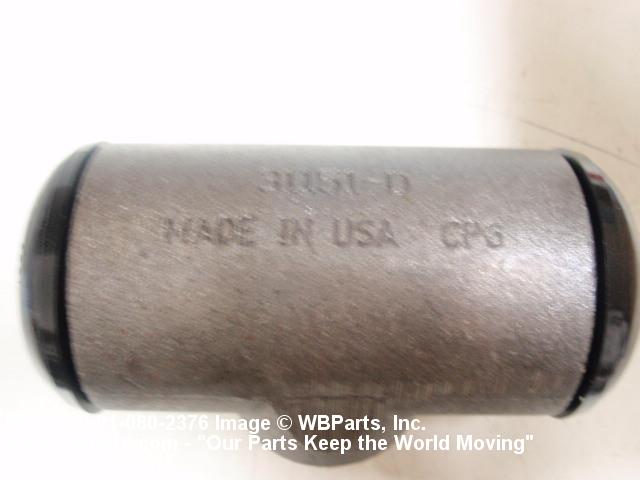

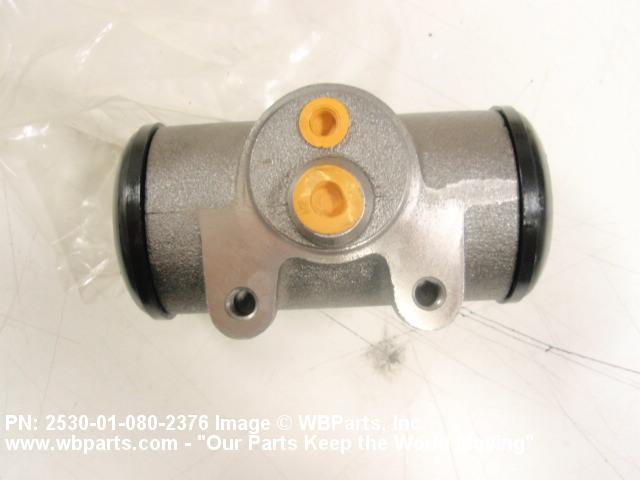

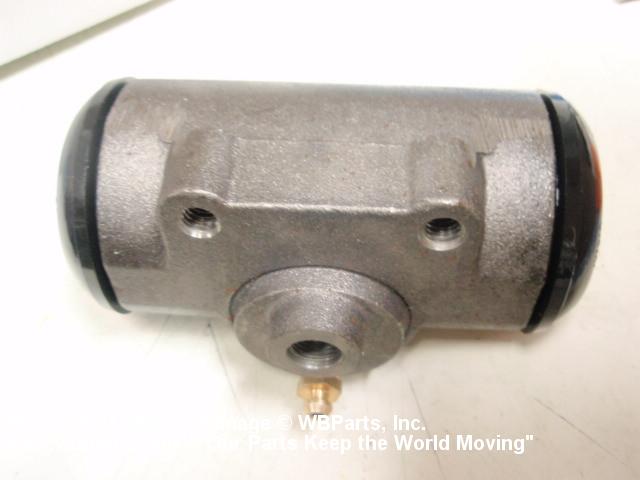

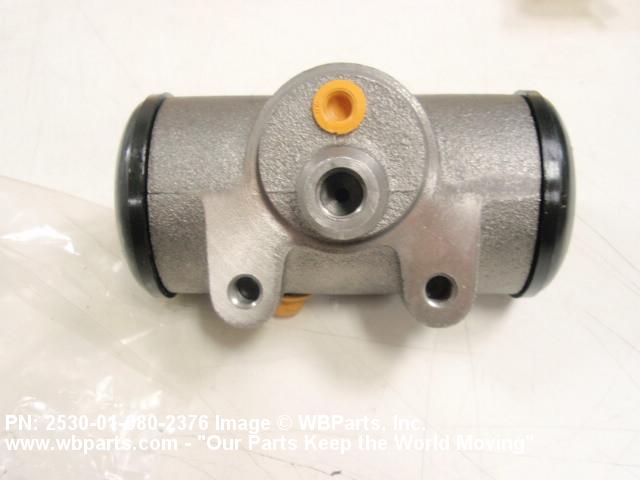

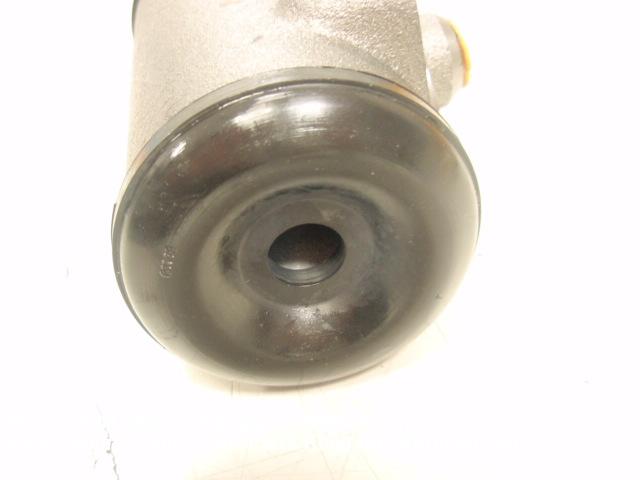

Drawings & Photos | NSN 2530-01-080-2376
Demand History | NSN 2530-01-080-2376
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2530-01-080-2376 | 2024-04-103 | 4 | US |
| 2530-01-080-2376 | 2022-05-126 | 4 | US |
| 2530-01-080-2376 | 2018-06-152 | 4 | GU |
| 2530-01-080-2376 | 2014-12-363 | 1 | US |
| 2530-01-080-2376 | 2014-02-37 | 1 | US |
| 2530-01-080-2376 | 2013-11-322 | 2 | US |
| FD6145 | 2012-12-342 | 2 | US |
| 2530-01-080-2376 | 2009-12-344 | 4 | United States |
| FD6145 | 2009-11-329 | 4 | United States |
| FD6145 | 2009-09-265 | 3 | Greece |
| FD6145 | 2009-08-226 | 2 | US |
| 2530-01-080-2376 | 2009-06-162 | 4 | Canada |
| FD6145 | 2009-03-80 | 1 | US |
| 2530-01-080-2376 | 2009-02-34 | 4 | US |
| FD6145 | 2009-01-12 | 4 | United States |
| 8758254 | 2009-01-12 | 4 | United States |
| FD6145 | 2008-11-325 | 4 | United States |
| FD6145 | 2008-10-290 | 1 | US |
| 2530-01-080-2376 | 2008-10-278 | 1 | United States |
