NSN 2540-00-310-1815 T6201, T62-0-1, T6201L
Product Details | PINTLE HOOK LATCH
2540-00-310-1815 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Part Alternates: T6201, T62-0-1, T6201L, T-62-01L, XAT62O1L8, XA-T-62-O-1L-8, 1274483, 7524312, 801779, 2540-00-310-1815, 00-310-1815, 2540003101815, 003101815
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1963 | 00-310-1815 | 11401 ( LATCH, PINTLE HOOK ) |
Drawings & Photos | NSN 2540-00-310-1815
Demand History | NSN 2540-00-310-1815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-310-1815 | 2017-08-222 | 1 | DIBBS |
| 2540-00-310-1815 | 2017-06-173 | 1 | DIBBS |
| 2540-00-310-1815 | 2017-05-149 | 1 | DIBBS |
| 2540-00-310-1815 | 2017-05-145 | 2 | DIBBS |
| 2540-00-310-1815 | 2016-12-347 | 1 | DIBBS |
| 2540-00-310-1815 | 2016-10-286 | 1 | DIBBS |
Cross Reference | NSN 2540-00-310-1815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1274483 | 12204 | DAIMLER CHRYSLER |
| 2540003101815 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7524312 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 801779 | 34623 | AM GENERAL, LLC |
| T-62-01L | 74410 | HOLLAND USA INC |
| T62-0-1 | 74410 | HOLLAND USA INC |
| XA-T-62-O-1L-8 | 74410 | HOLLAND USA INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2540-00-310-1815
Related Products | NSN 2540-00-310-1815
Technical Data | NSN 2540-00-310-1815
| Characteristic | Specifications |
|---|---|
| PINTLE TYPE FOR WHICH DESIGNED | AUTOMATIC |
| MATERIAL | STEEL |

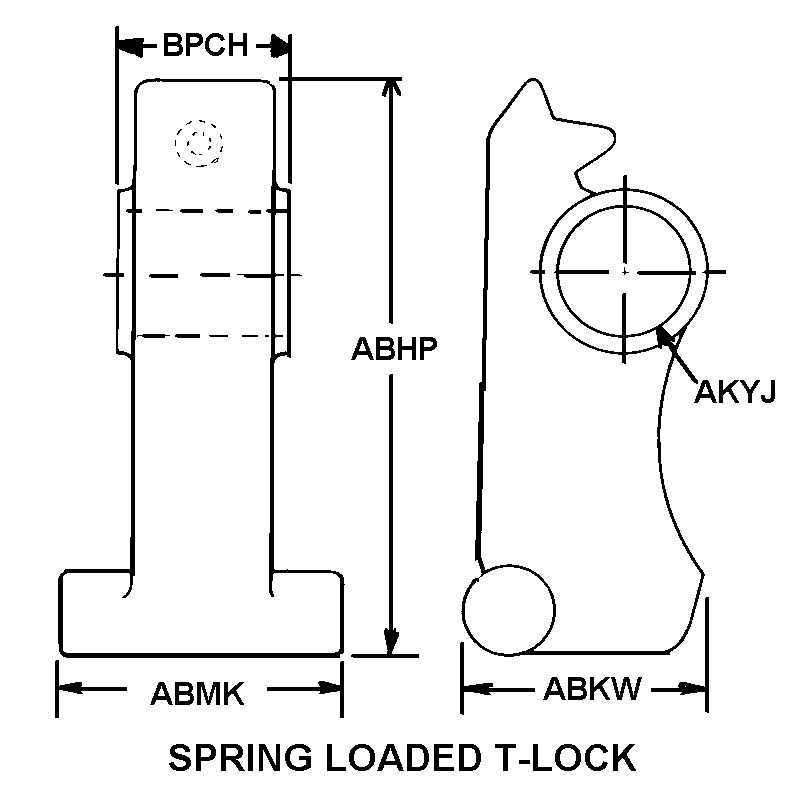

| STYLE DESIGNATOR | 7 SPRING LOADED T-LOCK |
| OVERALL LENGTH | 4.688 INCHES NOMINAL |
| OVERALL HEIGHT | 2.406 INCHES NOMINAL |
| OVERALL WIDTH | 1.438 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.438 INCHES NOMINAL |
| WIDTH AT PIVOT PIN HOLE | 1.406 INCHES NOMINAL |
| LOCKING PIN HOLE DIAMETER | ANY ACCEPTABLE |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-310-1815
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 586 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-00-310-1815
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
