NSN 2540-00-495-0216 307013C93, 00-495-0216, 004950216
Product Details | DOOR WEDGE RECEPTACLE
2540-00-495-0216 An item having two blocks, shoes or a V-shaped grooved member, attached to a metal frame. It is designed to be mounted on a vehicle door or door post and to receive a WEDGE, DOOR DOVETAIL. It is used to hold the door rigidly in place when closed. Excludes items having an integral catch.
Part Alternates: 307013C93, 2540-00-495-0216, 00-495-0216, 2540004950216, 004950216
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 18 JUN 1971 | 00-495-0216 | 20246 ( RECEPTACLE, DOOR WEDGE ) |
Drawings & Photos | NSN 2540-00-495-0216
Demand History | NSN 2540-00-495-0216
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-495-0216 | 2021-05-127 | 10 | US |
Cross Reference | NSN 2540-00-495-0216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 307013C93 | 89346 | NAVISTAR INTL CORP TRUCK BR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-495-0216
Technical Data | NSN 2540-00-495-0216
| Characteristic | Specifications |
|---|---|
| FRAME MATERIAL | METAL |
| BLOCK MATERIAL | METAL |
| FRAME SURFACE TREATMENT | ANY ACCEPTABLE |
| BLOCK SURFACE TREATMENT | ANY ACCEPTABLE |

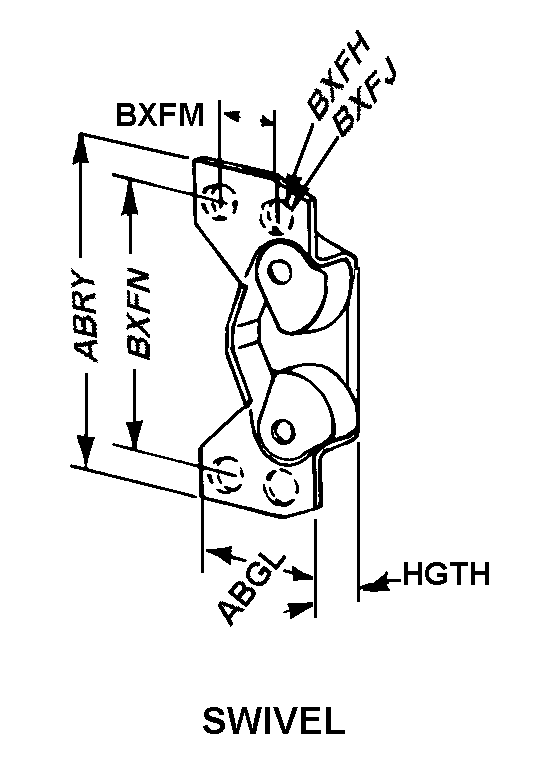

| STYLE DESIGNATOR | C11 SWIVEL |
| WIDTH | 2.125 INCHES NOMINAL |
| LENGTH | 3.875 INCHES NOMINAL |
| STRAIGHT END MOUNTING HOLE DIAMETER | ANY ACCEPTABLE |
| CENTER TO CENTER DISTANCE BETWEEN STRAIGHT END MOUNTING HOLES ALONG WIDTH | 0.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN STRAIGHT END MOUNTING HOLES ALONG LENGTH | 3.250 INCHES NOMINAL |
| HEIGHT | 0.750 INCHES NOMINAL |
| STRAIGHT END MOUNTING HOLE QUANTITY | 3 |
| WELDING DIMPLES | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-495-0216
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 885 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
