NSN 2540-00-735-0156 7350156, 951613, 00-735-0156
Product Details | PINTLE HOOK LATCH
2540-00-735-0156 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Part Alternates: 7350156, 951613, 2540-00-735-0156, 00-735-0156, 2540007350156, 007350156
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1961 | 00-735-0156 | 11401 ( LATCH, PINTLE HOOK ) |
Drawings & Photos | NSN 2540-00-735-0156
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-735-0156
Technical Data | NSN 2540-00-735-0156
| Characteristic | Specifications |
|---|---|
| PINTLE TYPE FOR WHICH DESIGNED | MANUAL |
| MATERIAL | STEEL, SAE 1035 |

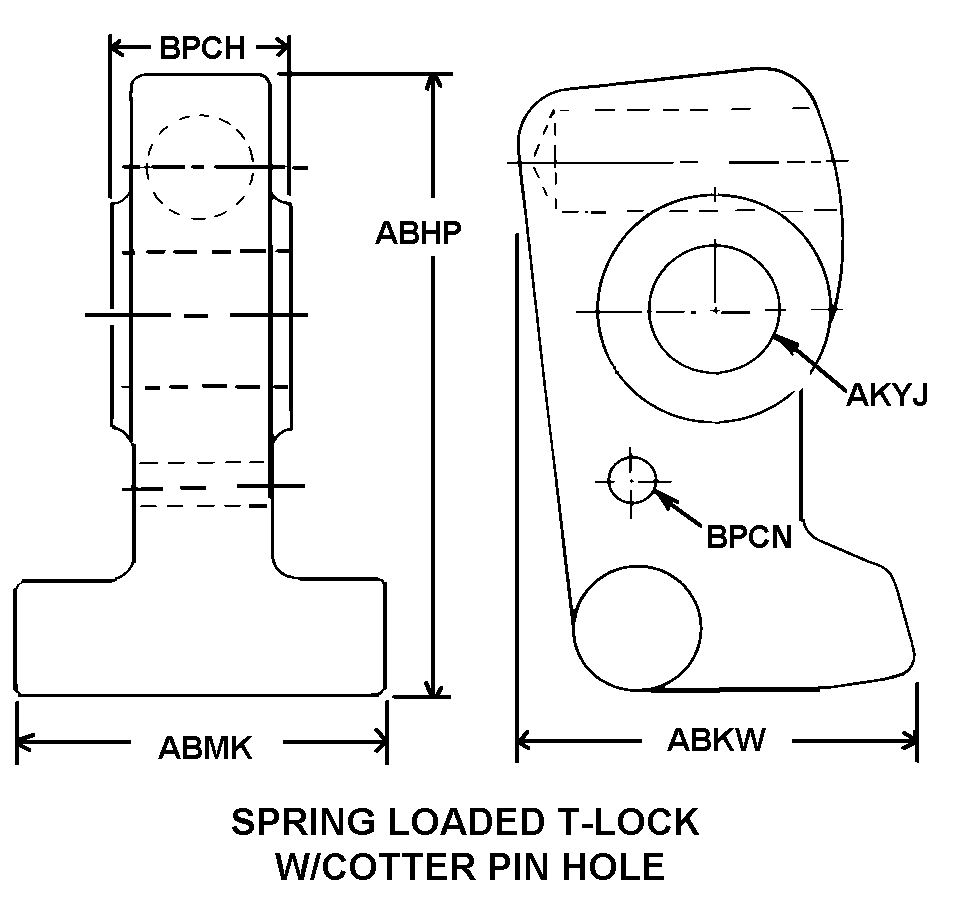

| STYLE DESIGNATOR | 8 SPRING LOADED T-LOCK W/COTTER PIN HOLE |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.438 INCHES NOMINAL |
| WIDTH AT PIVOT PIN HOLE | 0.610 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| LOCKING PIN HOLE DIAMETER | 0.281 INCHES NOMINAL |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-735-0156
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
