NSN 2540-00-736-8563 10920608, 00-736-8563, 007368563
Product Details | COMPARTMENT VEHICULAR HEATER
2540-00-736-8563 A device designed to heat the interior of a vehicle by utilizing the heat from the engine coolant system or a liquid fuel type burner. Circulation of the heated air is achieved by use of a blower or fan which may or may not be an integral part of the heating unit. Excludes HEATER, AIRCRAFT, and railway heaters.
Part Alternates: 10920608, 2540-00-736-8563, 00-736-8563, 2540007368563, 007368563
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1961 | 00-736-8563 | 17648 ( HEATER, VEHICULAR, COMPARTMENT ) |

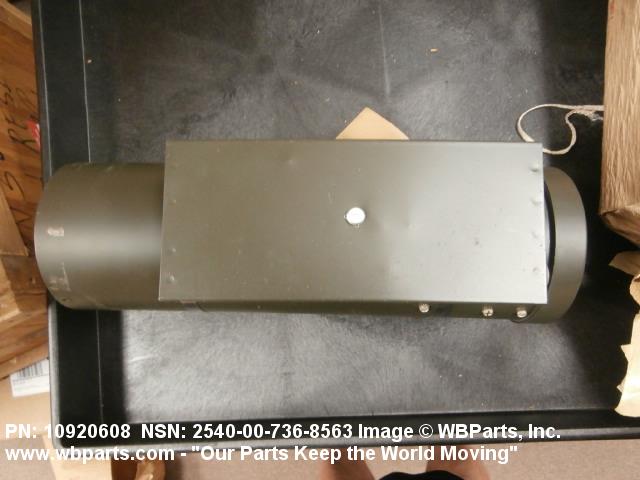

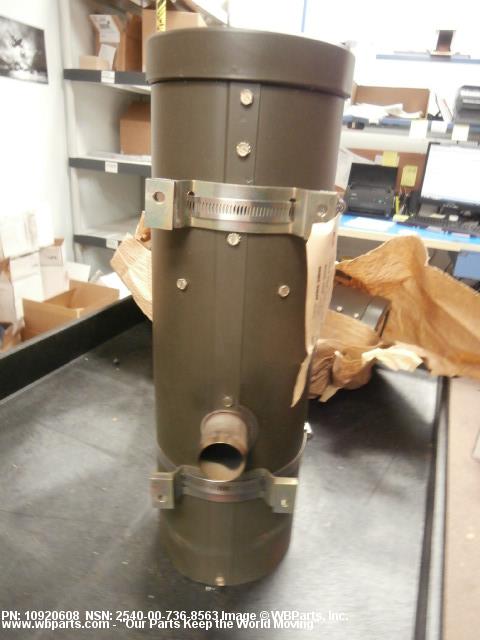

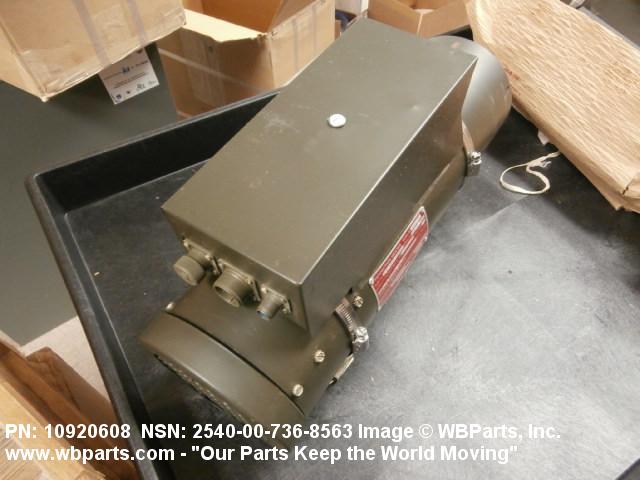

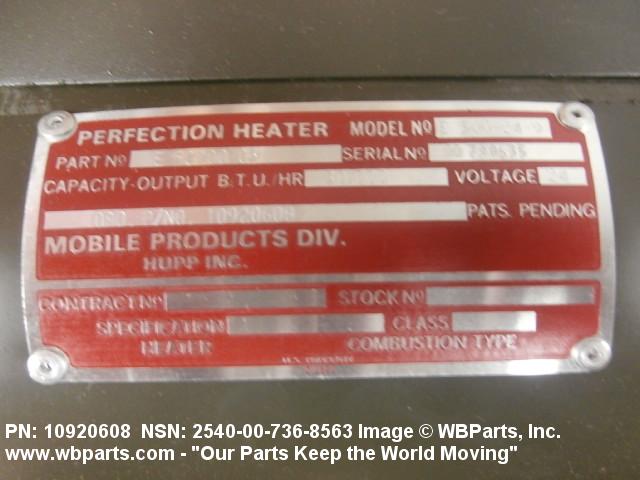

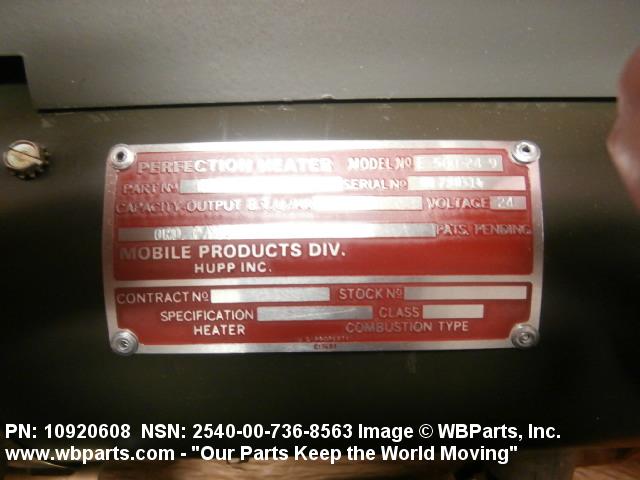

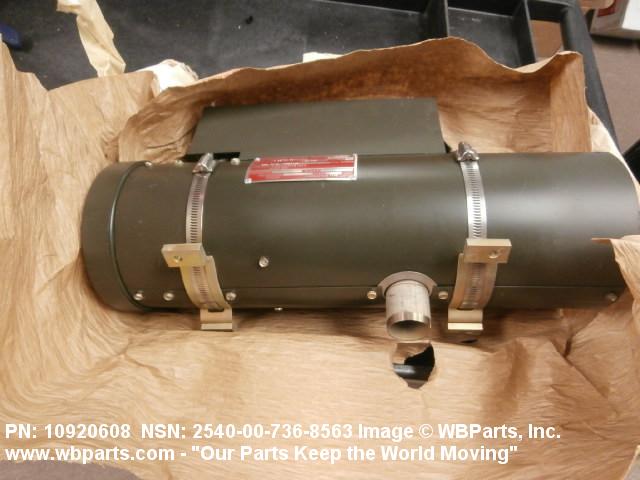

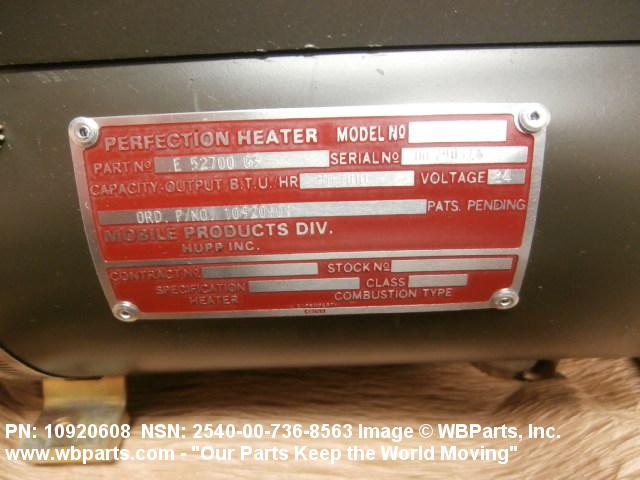

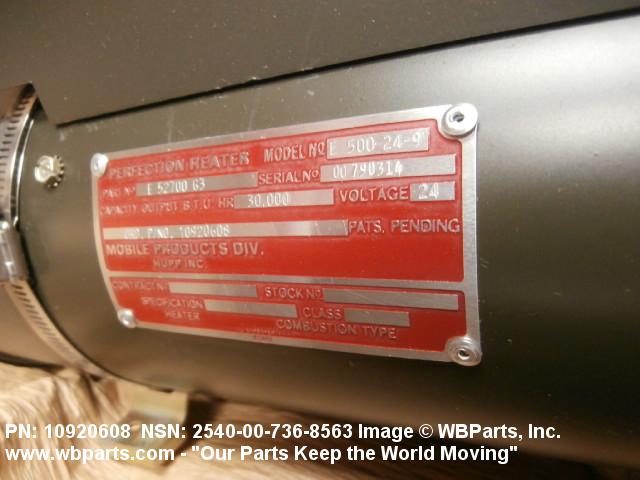

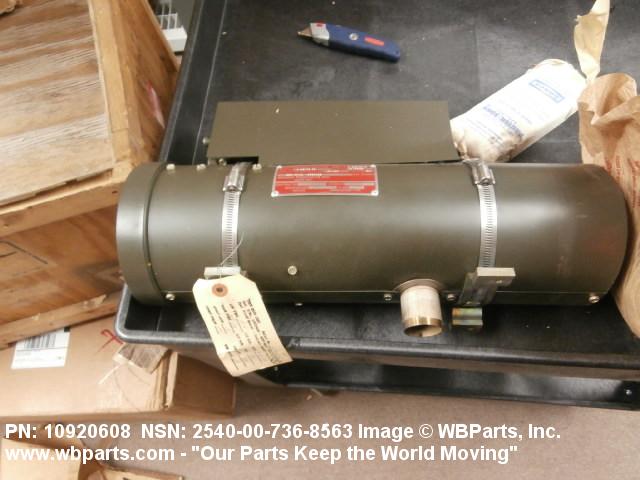

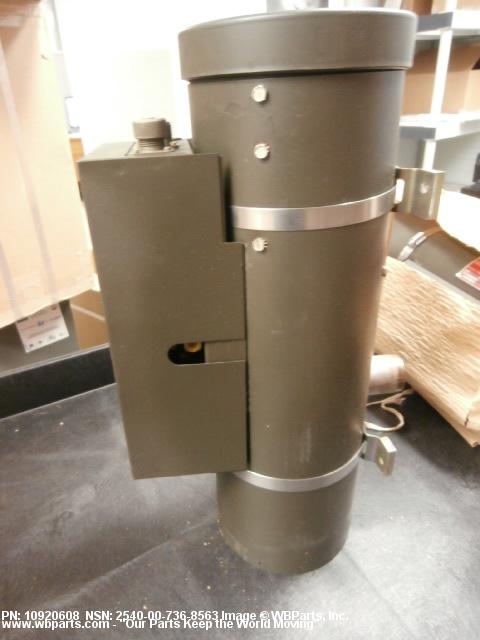

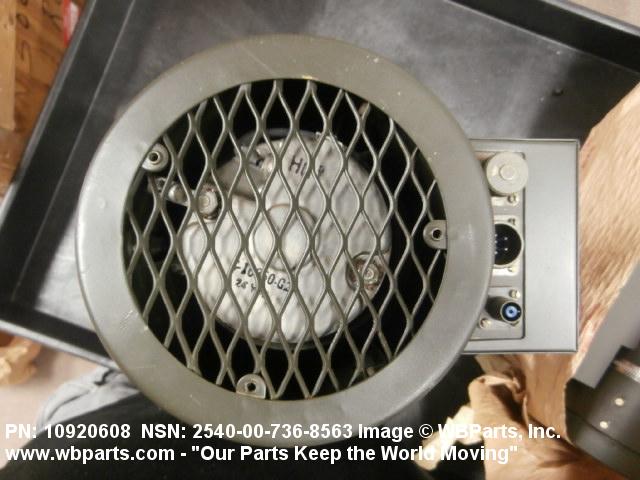

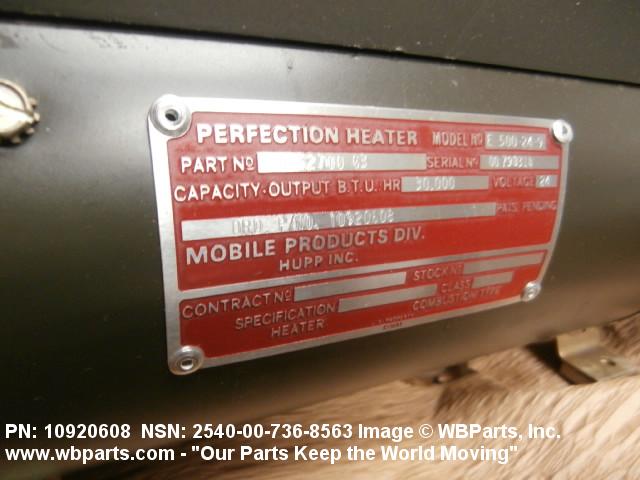

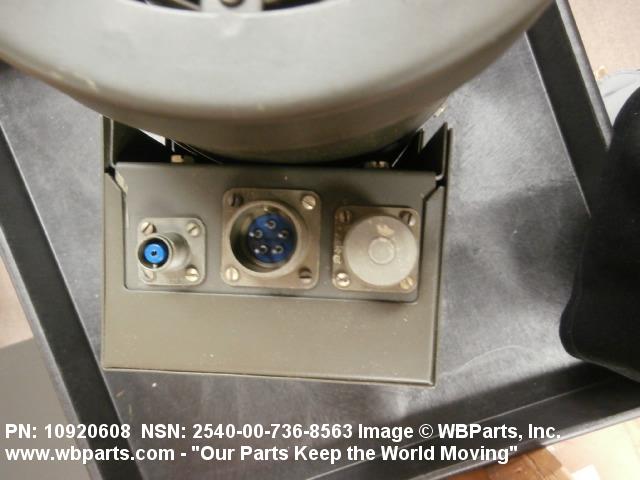

Drawings & Photos | NSN 2540-00-736-8563
Demand History | NSN 2540-00-736-8563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-00-736-8563 | 2016-04-119 | 2 | United States |
Cross Reference | NSN 2540-00-736-8563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10920608 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-736-8563
Technical Data | NSN 2540-00-736-8563
| Characteristic | Specifications |
|---|---|
| HEAT DELIVERY RATE | 30000.0 BRITISH THERMAL UNIT |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 24.0 |
| CURRENT RATING IN AMPS | 18.0 |
| HEATING ELEMENT TYPE | COMBUSTION CHAMBER |
| HEAT MEDIUM TYPE | AIR |
| FUEL FEED METHOD | INTERNAL PUMP |
| FUEL TYPE | 80/87 OCTANE GASOLINE |
| IGNITION METHOD | ELECTRODE |
| MOUNTING TYPE | FLOOR SURFACE, FREE STANDING, NONDUCTED OR WALL RECESSED, ROOM INTERIOR OR SKID OR TRAILER |
| HEIGHT | 10.468 INCHES NOMINAL |
| WIDTH | 6.031 INCHES NOMINAL |
| DEPTH | 18.562 INCHES NOMINAL |
| HEAT OUTLET QUANTITY | 1 |
| HEAT DELIVERY DIRECTION | VERTICAL |
| HEAT DISCHARGE OUTLET TYPE | STATIONARY |
| AIR CIRCULATION DEVICE | PROPELLER FAN |
| QUANTITY | 1 |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| MAXIMUM AIR FLOW RATE | NOT RATED |
| PRIME MOVER TYPE | GASOLINE ENGINE |
| CIRCULATED AIR TYPE | HEATED |
| INCLOSURE MATERIAL | ANY ACCEPTABLE |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| RADIO INTERFERENCE SUPPRESSION TYPE | ARMY, MIL-S-10379, RADIO SUPPRESSION |
| OPERATING CONTROL TYPE | THERMOSTATIC |
| FUEL CONSUMPTION RATE PER HOUR | 0.4 GALLONS |
Restrictions/Controls & Freight Information | NSN 2540-00-736-8563
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018850 | AUTO HEATER/WINDSHIELD HEATER/ETC |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
