NSN 2540-00-916-6080 SMD317088GR11, 00-916-6080, 009166080
Product Details | RING DRAWBAR COUPLER
2540-00-916-6080 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Part Alternates: SMD317088GR11, 2540-00-916-6080, 00-916-6080, 2540009166080, 009166080
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 13 JUL 1966 | 00-916-6080 | 19449 ( COUPLER, DRAWBAR, RING ) |
Drawings & Photos | NSN 2540-00-916-6080
Cross Reference | NSN 2540-00-916-6080
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SMD317088GR11 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-00-916-6080
Technical Data | NSN 2540-00-916-6080
| Characteristic | Specifications |
|---|---|

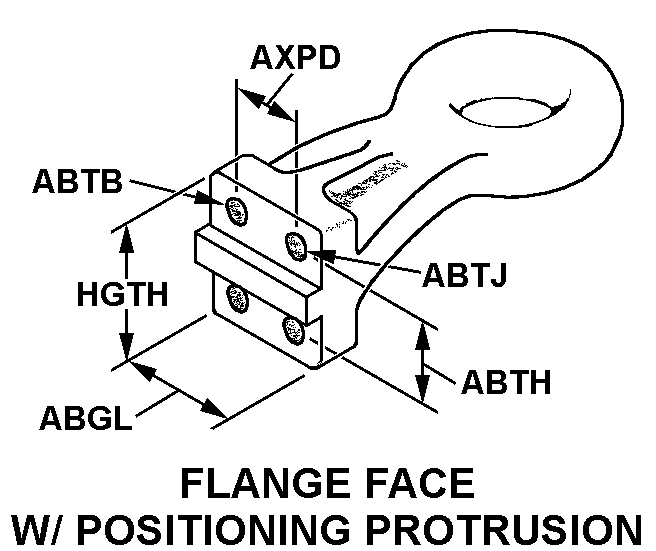

| STYLE DESIGNATOR | 9 FLANGE FACE W/POSITIONING PROTRUSION |
| WIDTH | 1.592 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.452 INCHES MINIMUM AND 0.461 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | ANY ACCEPTABLE |
| MOUNTING HOLE QUANTITY | 1 |
| CENTER TO CENTER DISTANCE BETWEEN SECOND AND THIRD MOUNTING HOLES | 2.750 INCHES NOMINAL |
| HEIGHT | 1.125 INCHES NOMINAL |
| RING INSIDE DIAMETER | 0.750 INCHES NOMINAL |
| RING OUTSIDE DIAMETER | 1.312 INCHES NOMINAL |
| SHANK END THREAD PROVISION | UNTHREADED |
| SHANK END KEYWAY | NOT PROVIDED |
| PAINTED FEATURE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2540-00-916-6080
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
