NSN 2540-01-207-2608 WW 12C 191030, WW12C191030, WWF12C191030
Product Details | ELECTRIC WINDSHIELD WIPER MOTOR
2540-01-207-2608 A mechanical device driven by electricity to produce the necessary motion to operate a windshield wiper20316800049Miscellaneous Aircraft Accessories and Components20900039Miscellaneous Ship and Marine Equipment25400035Vehicular Furniture and Accessories
Part Alternates: WW 12C 191030, WW12C191030, WWF12C191030, 3160100, 2540-01-207-2608, 01-207-2608, 2540012072608, 012072608
Vehicular Equipment Components | Vehicular Furniture and Accessories
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 30 APR 1985 | 01-207-2608 | 15774 ( MOTOR, WINDSHIELD WIPER, ELECTRIC ) |

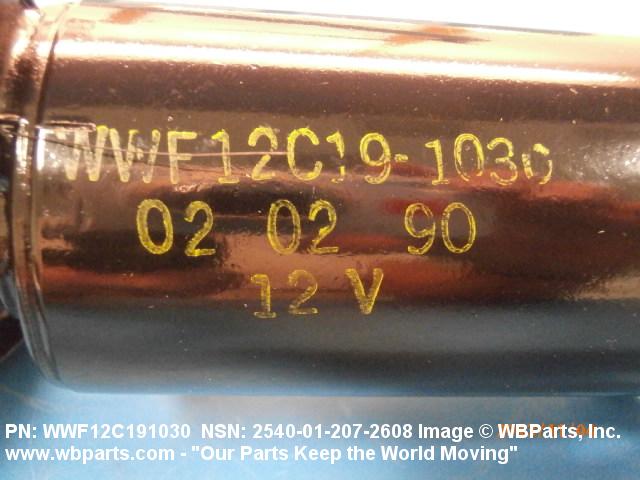

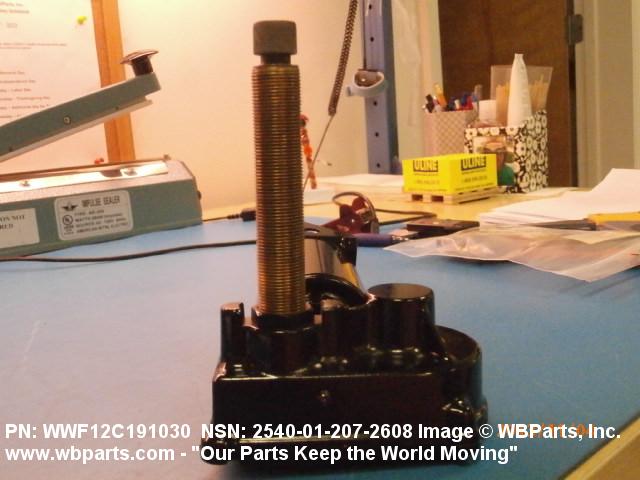

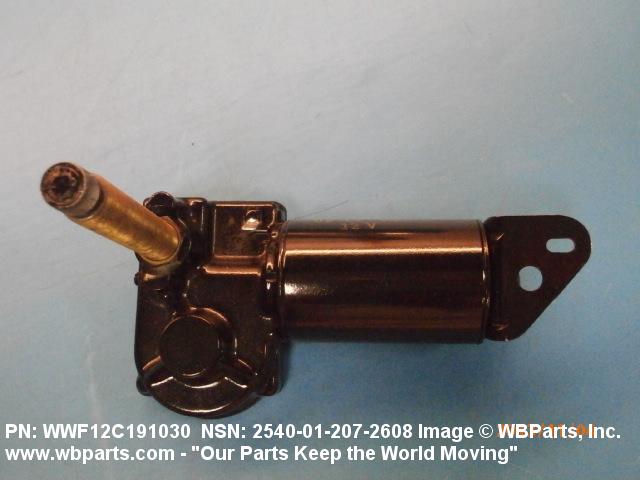

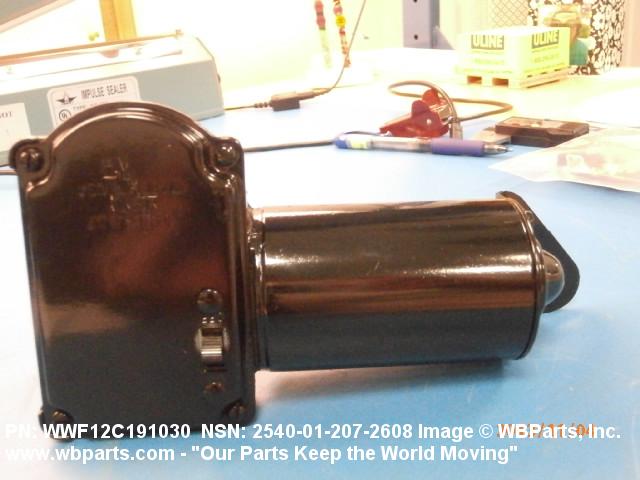

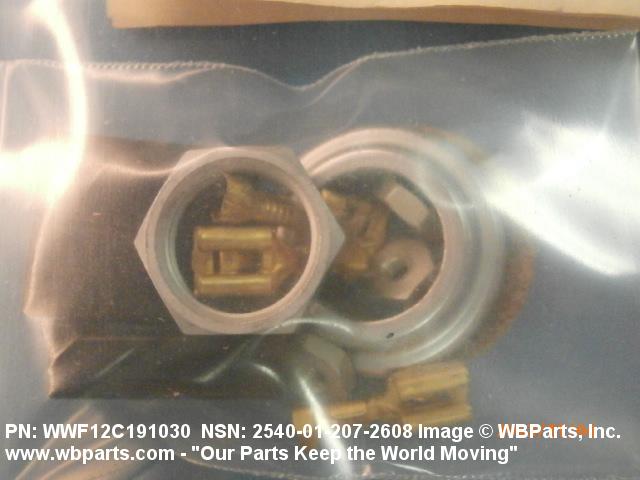

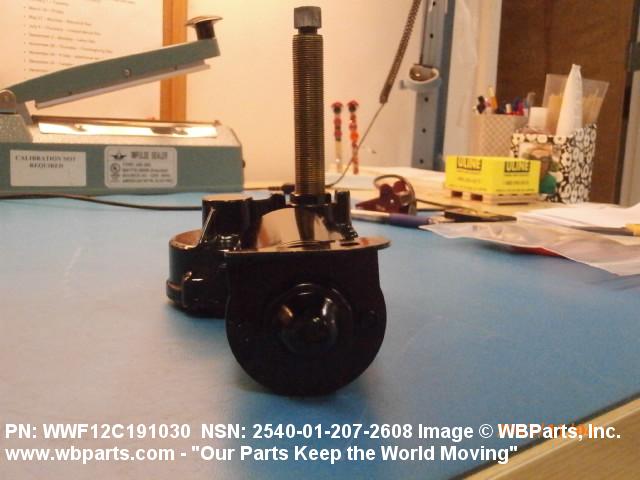

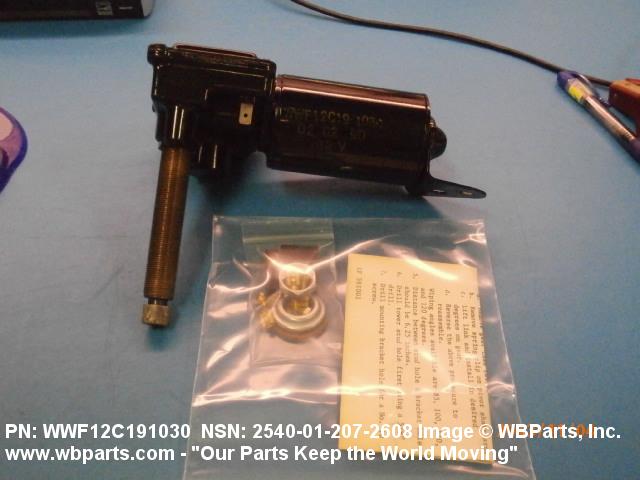

Drawings & Photos | NSN 2540-01-207-2608
Demand History | NSN 2540-01-207-2608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2540-01-207-2608 | 2013-10-288 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2540-01-207-2608
Technical Data | NSN 2540-01-207-2608
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | OSCILLATING ARM |
| THROW ANGLE IN DEG | 65.0 |

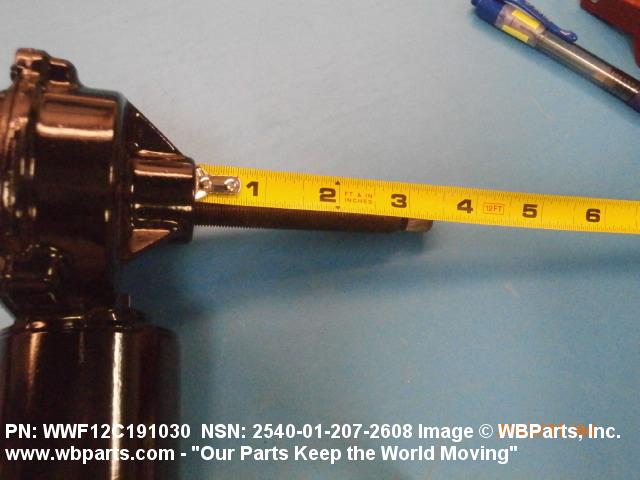

| ACTUATING SHAFT LENGTH | 3.000 INCHES NOMINAL |
| ACTUATING SHAFT LARGEST DIAMETER | 0.625 INCHES NOMINAL |
| ACTUATING SHAFT END CONNECTION TYPE | SERRATED |
| SERRATION SHAPE | STRAIGHT |
| MOUNTING METHOD | BRACKET |
| MANUAL OPERATION FACILITY | PROVIDED |
| VOLTAGE IN VOLTS | 12.0 |
Restrictions/Controls & Freight Information | NSN 2540-01-207-2608
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197720 | WINDSHIELD WIPER ARMS BLADES/MTRS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2540-01-207-2608
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
