Product Details | VEHICULAR DOOR HANDLE

2540-01-568-2658 A device designed to actuate the mechanism of a vehicular door latch, either by turning or lifting the handle, or by operation of a PUSH BUTTON or trigger.

Part Alternates: 12485221, 2540-01-568-2658, 01-568-2658, 2540015682658, 015682658

Vehicular Equipment Components | Vehicular Furniture and Accessories

Supply Group (FSG) NSN Assign. NIIN
25 24-OCT-08 01-568-2658

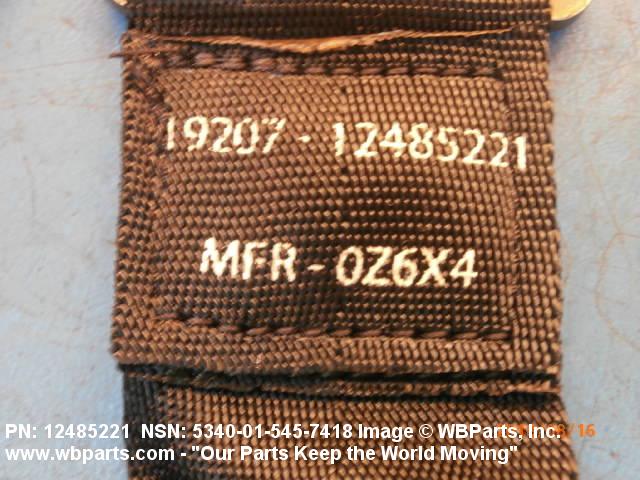

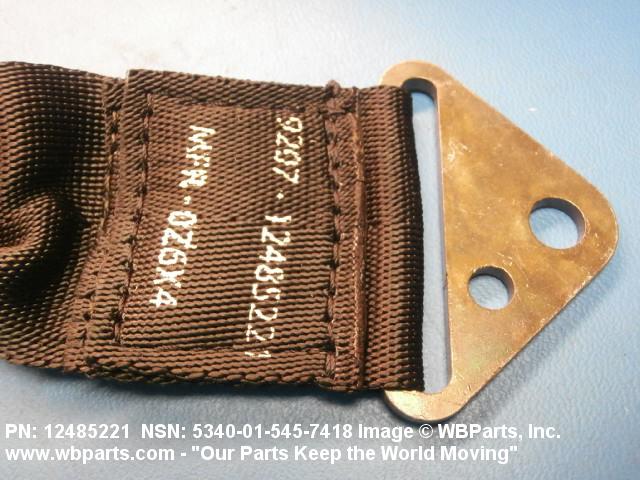

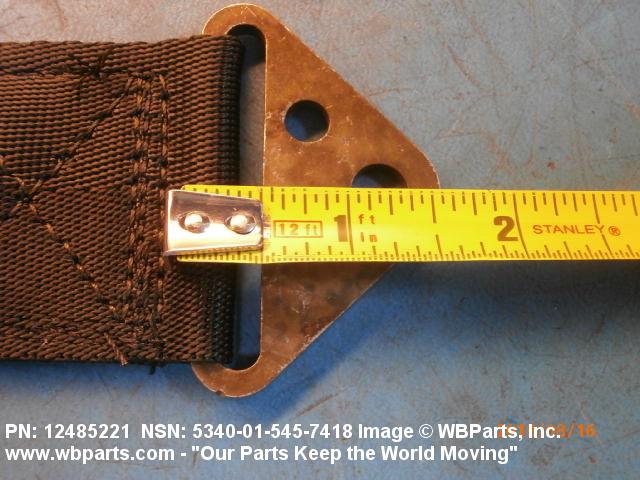

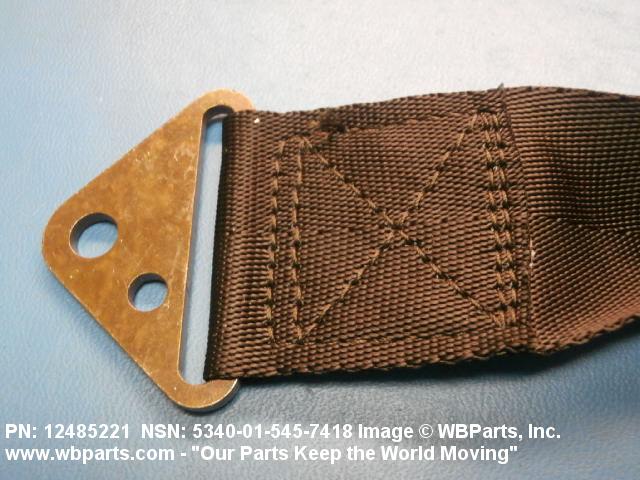

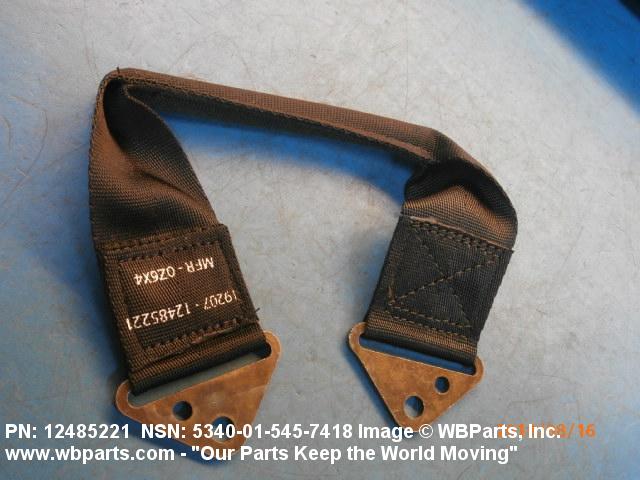

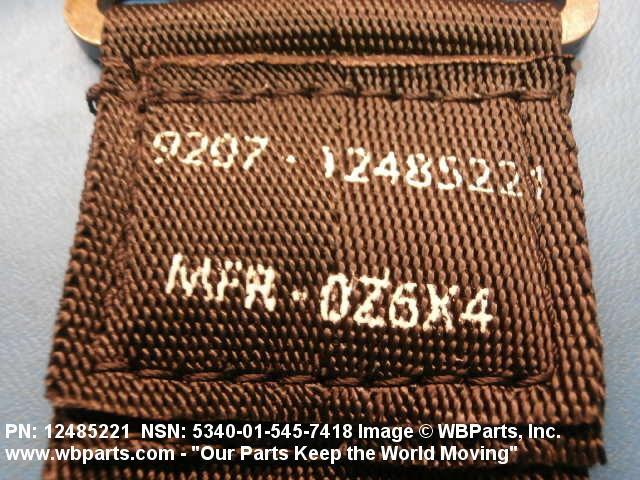

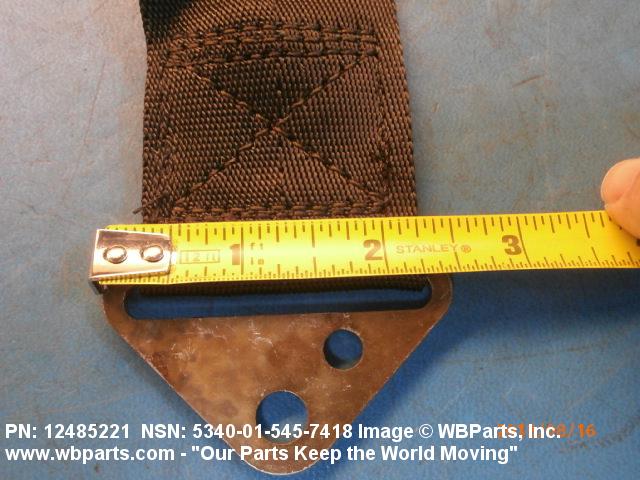

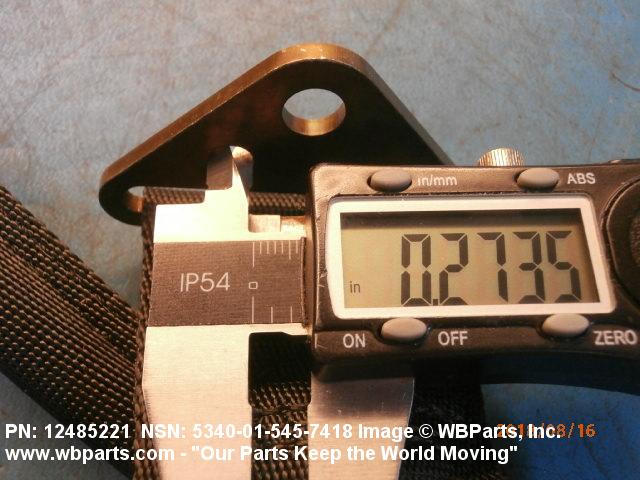

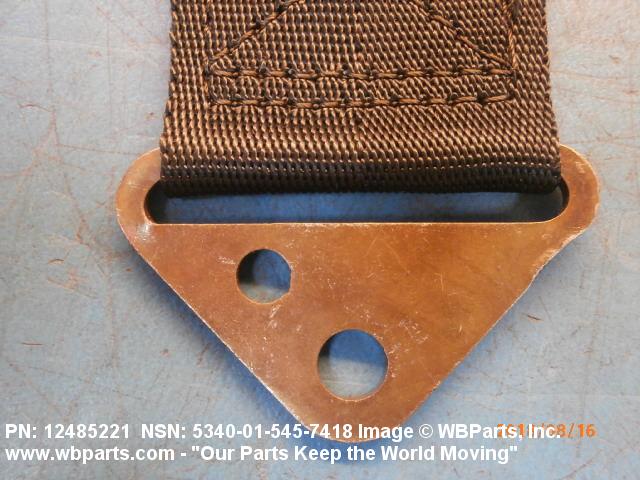

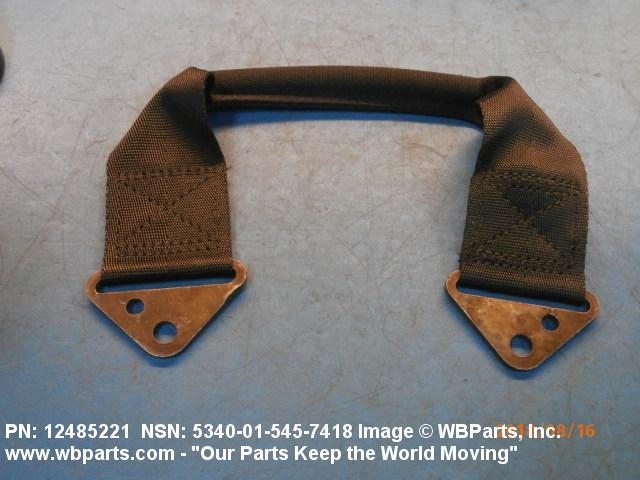

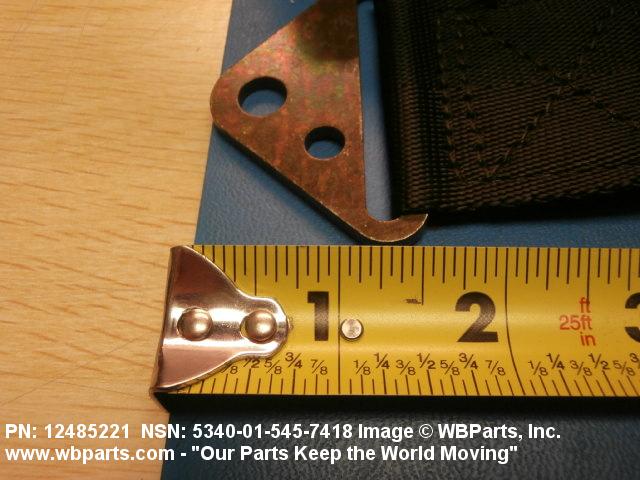

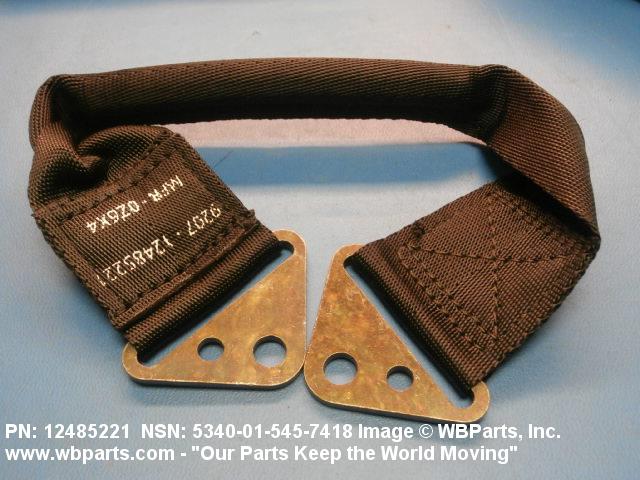

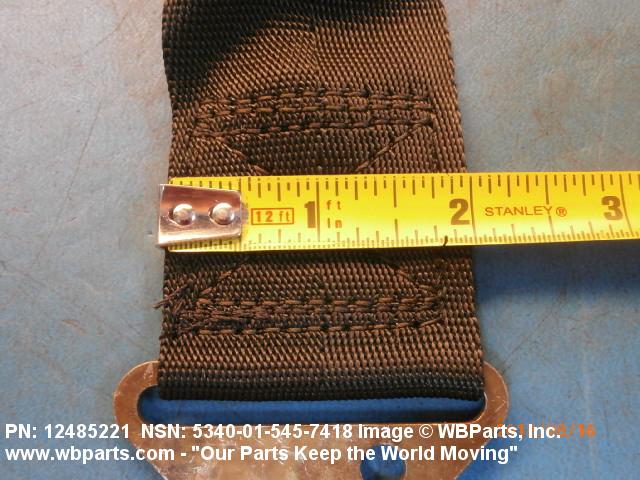

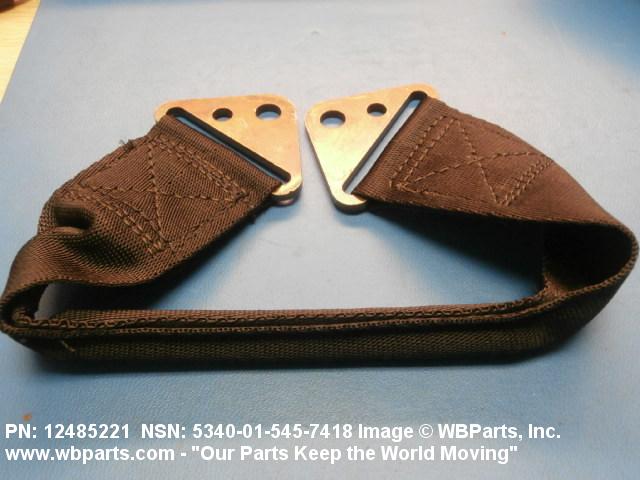

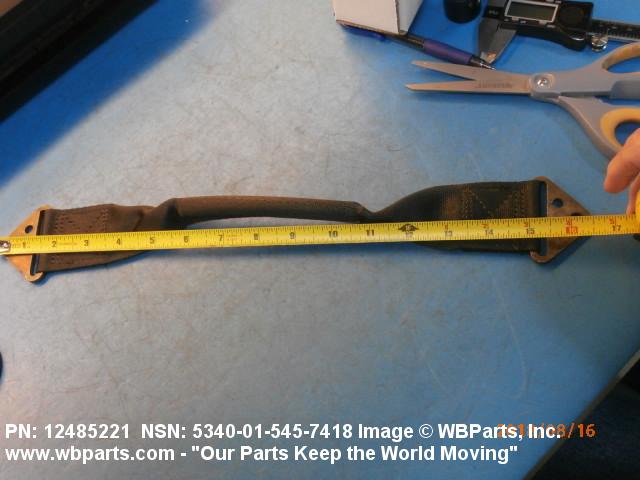

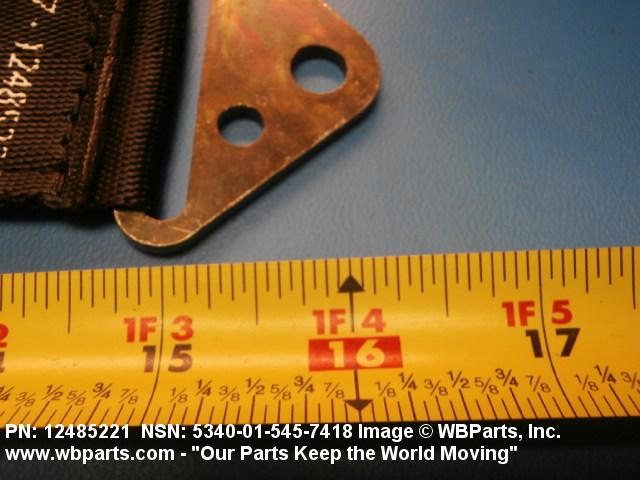

Drawings & Photos | NSN 2540-01-568-2658


Demand History | NSN 2540-01-568-2658

Part Number Request Date QTY Origin
12485221 2012-06-28 344 US
2540-01-568-2658 2010-09-14 140 DIBBS
2540-01-568-2658 2010-09-13 79 DIBBS
2540-01-568-2658 2010-08-17 54 DIBBS
2540-01-568-2658 2010-08-09 3 DIBBS
2540-01-568-2658 2010-05-19 13 DIBBS
2540-01-568-2658 2010-05-03 8 DIBBS
2540-01-568-2658 2010-01-06 93 DIBBS
2540-01-568-2658 2009-10-21 55 DIBBS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2540-01-568-2658

Technical Data | NSN 2540-01-568-2658

Characteristic Specifications
END ITEM IDENTIFICATION 2540-01-563-3905;ARMOR SET,SUPPLEMENTAL,SMALL ARMS-FRAGMENTATION PROTECTIVE
PART NAME ASSIGNED BY CONTROLLING AGENCY HANDLE,ASSY,STRAP-COMMON

Restrictions/Controls & Freight Information | NSN 2540-01-568-2658

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:DMunitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:7NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
