NSN 2590-00-798-4056 MS513001, MS51300-1, L127D
Product Details | FILLER OPENING CAP
2590-00-798-4056 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: MS513001, MS51300-1, L127D, MILC45300, 402568, 7984056, 850655, 10922957, 2590-00-798-4056, 00-798-4056, 2590007984056, 007984056
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01 JAN 1962 | 00-798-4056 | 30128 ( CAP, FILLER OPENING ) |

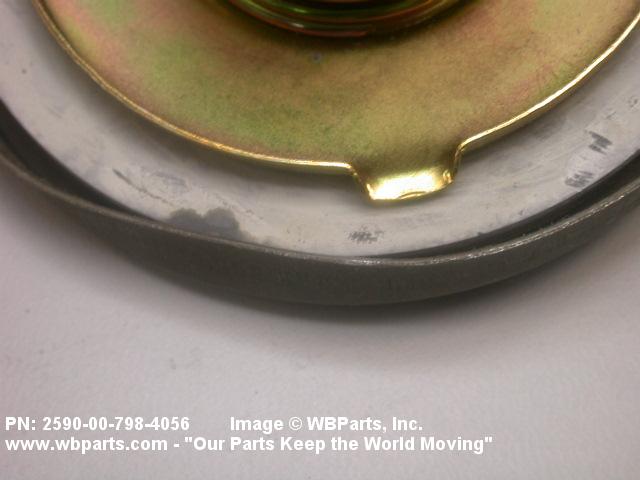

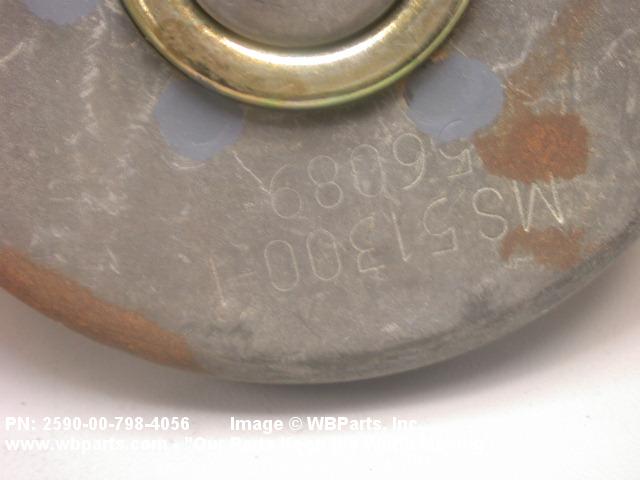

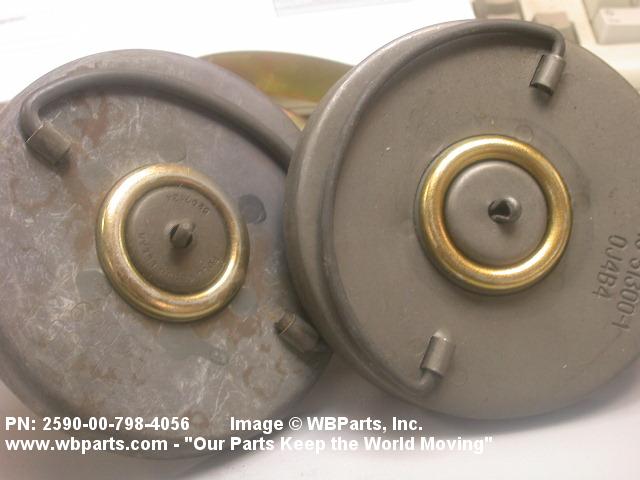

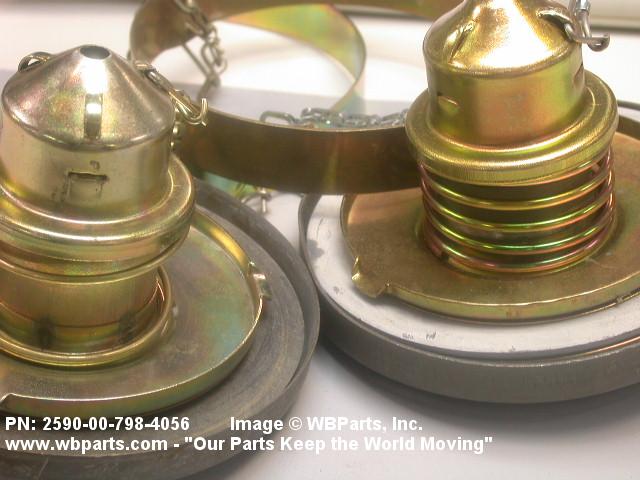

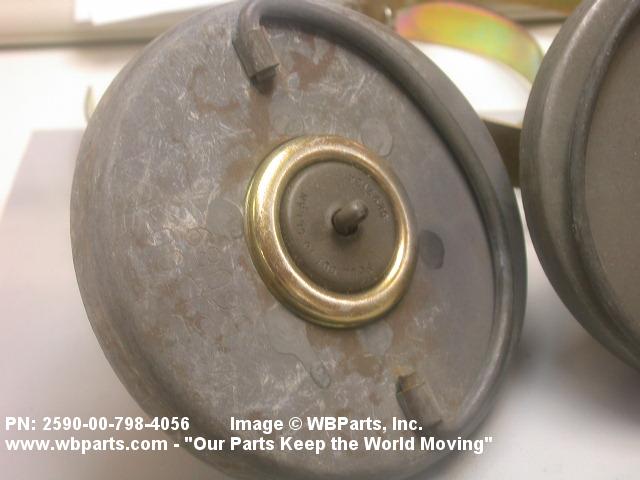

Drawings & Photos | NSN 2590-00-798-4056
Demand History | NSN 2590-00-798-4056
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-00-798-4056 | 2025-03-79 | 151 | KR |
| 2590-00-798-4056 | 2024-10-282 | 1975 | DIBBS |
| 2590-00-798-4056 | 2024-09-249 | 614 | DIBBS |
| 2590-00-798-4056 | 2024-08-221 | 1272 | DIBBS |
| 2590-00-798-4056 | 2024-07-191 | 701 | DIBBS |
| 2590-00-798-4056 | 2024-01-22 | 41 | United Kingdom |
| 2590-00-798-4056 | 2024-01-09 | 24 | United States |
| 2590-00-798-4056 | 2023-01-12 | 16 | US |
| 2590-00-798-4056 | 2022-12-335 | 334 | DIBBS |
| MS51300-1 | 2022-10-301 | 2 | Malaysia |
| 2590-00-798-4056 | 2022-06-181 | 546 | DIBBS |
| 2590-00-798-4056 | 2022-03-76 | 337 | DIBBS |
| MS513001 | 2020-11-309 | 10 | Canada |
| 2590-00-798-4056 | 2020-03-86 | 350 | DIBBS |
| 2590-00-798-4056 | 2020-01-20 | 400 | DIBBS |
| 2590-00-798-4056 | 2019-10-276 | 266 | DIBBS |
| 2590-00-798-4056 | 2019-06-175 | 50 | Canada |
| 2590-00-798-4056 | 2019-06-175 | 100 | Canada |
| 2590-00-798-4056 | 2019-05-136 | 62 | DIBBS |
| 2590-00-798-4056 | 2019-02-44 | 96 | DIBBS |
| 2590-00-798-4056 | 2018-10-277 | 96 | DIBBS |
| MS513001 | 2018-07-184 | 50 | Canada |
| 2590-00-798-4056 | 2018-04-116 | 336 | DIBBS |
| 2590-00-798-4056 | 2018-04-116 | 600 | DIBBS |
| 2590-00-798-4056 | 2017-11-316 | 336 | DIBBS |
| 2590-00-798-4056 | 2017-08-240 | 600 | DIBBS |
| 2590-00-798-4056 | 2017-08-220 | 219 | DIBBS |
| MS51300-1 | 2016-12-355 | 325 | United States |
| 2590-00-798-4056 | 2016-05-127 | 2 | United States |
| 2590-00-798-4056 | 2015-10-278 | 150 | Greece |
| 2590-00-798-4056 | 2015-04-110 | 18 | Turkey |
| 2590-00-798-4056 | 2015-03-84 | 800 | Turkey |
| 2590-00-798-4056 | 2015-03-70 | 780 | TR |
| 2590-00-798-4056 | 2015-01-26 | 4 | DIBBS |
| 2590-00-798-4056 | 2014-06-157 | 450 | TR |
| 2590-00-798-4056 | 2014-05-140 | 195 | TR |
| 2590-00-798-4056 | 2014-04-99 | 30 | Turkey |
| 2590-00-798-4056 | 2013-03-74 | 75 | Turkey |
| 2590-00-798-4056 | 2011-03-68 | 123 | MANUAL |
| 2590-00-798-4056 | 2009-09-246 | 8 | DIBBS |
| MS513001 | 2009-04-114 | 309 | US |
| 2590-00-798-4056 | 2008-07-189 | 15 | DIBBS |
| 2590-00-798-4056 | 2008-06-175 | 1101 | DIBBS |
| 2590-00-798-4056 | 2008-04-102 | 50 | DIBBS |
| 2590-00-798-4056 | 2007-11-317 | 29 | DIBBS |
| 2590-00-798-4056 | 2007-10-274 | 65 | DIBBS |
| 2590-00-798-4056 | 2007-10-274 | 699 | DIBBS |
| 2590-00-798-4056 | 2007-09-270 | 65 | DIBBS |
| 2590-00-798-4056 | 2007-09-270 | 699 | DIBBS |
| 2590-00-798-4056 | 2007-07-183 | 5 | United States |
Cross Reference | NSN 2590-00-798-4056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10922957 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2910007984056 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 7984056 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 850655 | 24617 | GENERAL MOTORS CORP |
| 850655 | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| L127D | 0DBY7 | MARADYNE CORPORATION |
| L127D | 3ES68 | GREENLEES FILTER LLC |
| MILC45300 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51300-1 | 78940 | UNITED AIR FILTER INC. |
| MS51300-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51300-1 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2590-00-798-4056
Related Products | NSN 2590-00-798-4056
Technical Data | NSN 2590-00-798-4056
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PHOSPHATE BODY CADMIUM OR ZINC OVERALL |
| STYLE DESIGNATOR | B2 OUTSIDE CAM TYPE BAIL HANDLE |
| OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| (NON-CORE DATA) BASE DIAMETER | 2.000 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 4.500 POUNDS PER SQUARE INCH |
| PRESSURE RELIEF METHOD | AUTOMATIC |
| FILLER NECK DIAMETER FOR WHICH DESIGNED | 4.375 INCHES NOMINAL |
| CAM QUANTITY | 3 |
| GRIPPING ACCOMMODATION TYPE | HANDLE |
| RETAINING DEVICE TYPE | CHAIN AND WIRE HOOK AND STRAP |
| RETAINING DEVICE LENGTH | 7.000 INCHES NOMINAL |
| SPECIAL MARKINGS | PULL OUT TO CLEAN |
| FEATURES PROVIDED | BREATHER HOLE |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC45300 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51300-1 |
Restrictions/Controls & Freight Information | NSN 2590-00-798-4056
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133320 | MACHINERY PARTS OIL/FUEL FILTER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2590-00-798-4056
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NN | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, J-52, J-60, JT8D9 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
