NSN 2590-01-055-6718 010556718

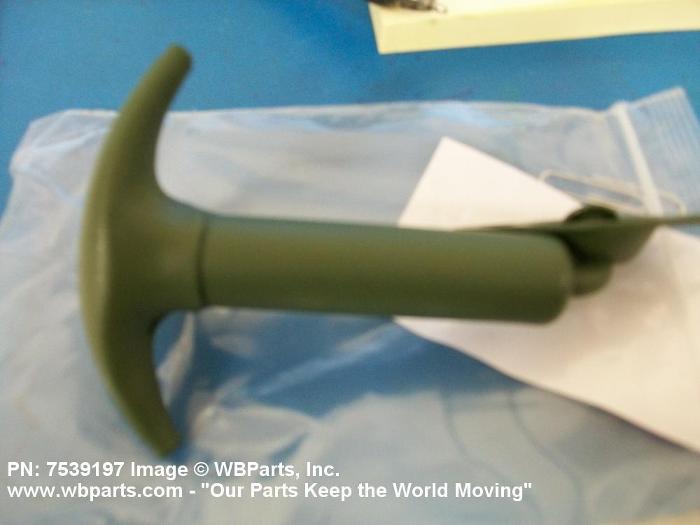

Product Details | SPRING LOADED CYLINDER FASTENER
2590-01-055-6718 A positive locking device consisting of a spring loaded cylinder and plunger. One end has a handle with an eye, hook, bar, or the like, for fastening to the item to be retained. The opposite end usually has a plate, bracket, stud, hook, or the like, for fastening to a structure. It may be furnished with a catch.
Part Alternates: 010556718
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 01-055-6718 | 20242 ( FASTENER, CYLINDER, SPRING LOADED ) |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-01-055-6718
Technical Data | NSN 2590-01-055-6718
| Characteristic | Specifications |
|---|---|
| LENGTH | 4.594 INCHES NOMINAL EFFECTIVE FREE LENGTH |
| DIAMETER | 0.219 INCHES NOMINAL MOUNTING HOLE |
| ANTIRATTLE DEVICE TYPE | SPRING |
| ENGAGING END TYPE | CAM |
| HANDLE TYPE | RING |
| MOUNTING END TYPE | PLATE |
| MOUNTING CONFIGURATION | TRIANGULAR SHAPED UNEQUALLY SPACED |
| MOUNTING POSITION FOR WHICH DESIGNED | VERTICAL |
| MOUNTING HOLE QUANTITY | 3 |
| SPECIAL FEATURES | PAD-NOT INCLUDED;NONADJUSTABLE;PAINTED FEATURE-NOT INCLUDED;EFFECT. EXTENDED LGTH 5.093 IN. NOM;CATCH-NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2590-01-055-6718
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
