NSN 2590-01-420-7910 063370, 063380, 01-420-7910
Product Details | FILLER OPENING CAP
2590-01-420-7910 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: 063370, 063380, 2590-01-420-7910, 01-420-7910, 2590014207910, 014207910
Vehicular Equipment Components | Miscellaneous Vehicular Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | 25 OCT 1995 | 01-420-7910 | 30128 ( CAP, FILLER OPENING ) |
Drawings & Photos | NSN 2590-01-420-7910
Demand History | NSN 2590-01-420-7910
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2590-01-420-7910 | 2023-12-339 | 15 | United States |
| 2590-01-420-7910 | 2023-07-198 | 2 | US |
| 063380 | 2022-08-221 | 35 | US |
| 2590-01-420-7910 | 2022-04-117 | 15 | United States |
| 2590-01-420-7910 | 2022-04-117 | 30 | United States |
| 2590-01-420-7910 | 2022-04-117 | 45 | United States |
| 2590-01-420-7910 | 2021-10-299 | 15 | United States |
| 2590-01-420-7910 | 2015-06-166 | 20 | DIBBS |
| 2590-01-420-7910 | 2015-06-153 | 20 | DIBBS |
| 2590-01-420-7910 | 2015-05-151 | 172 | DIBBS |
Cross Reference | NSN 2590-01-420-7910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 063370 | 0E3E3 | FLAMBEAU, INC DIV FLAMBEAU INC - MADISON GA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2590-01-420-7910
Technical Data | NSN 2590-01-420-7910
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |
| STYLE DESIGNATOR | B38 NON-VENTED THREADED TYPE |
| COLOR | BLACK |
| SYSTEM FOR WHICH DESIGNED | NONPRESSURIZED |

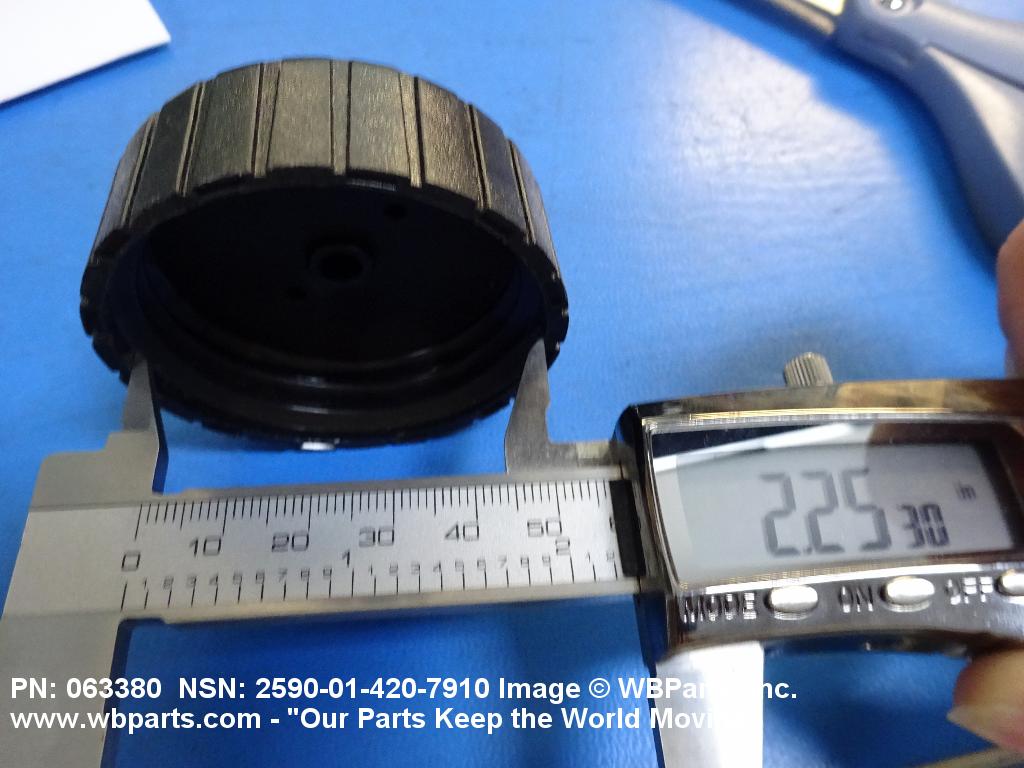

| FILLER NECK DIAMETER FOR WHICH DESIGNED | 2.200 INCHES NOMINAL |
| CAM QUANTITY | 5 |
| THREAD SERIES DESIGNATOR | BUTTRESS |

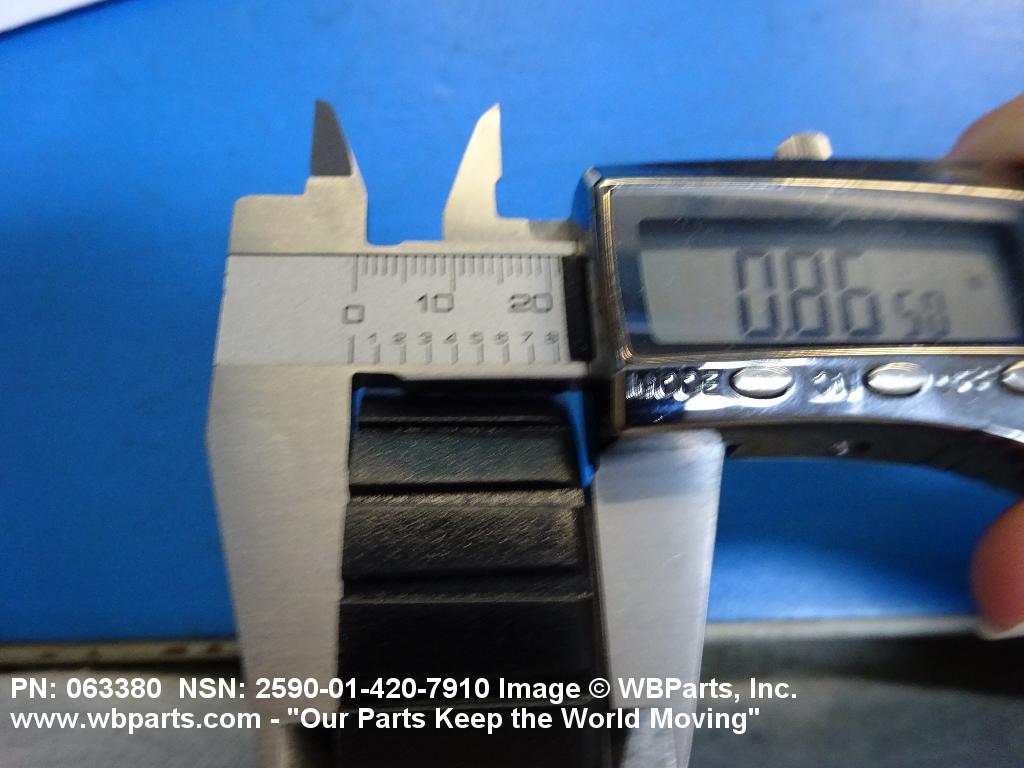

| THREAD LENGTH | 0.860 INCHES NOMINAL |
| GRIPPING ACCOMMODATION TYPE | LOBES |
| SPECIAL FEATURES | UNVENTED |
| III END ITEM IDENTIFICATION | 60K LOADER |
Restrictions/Controls & Freight Information | NSN 2590-01-420-7910
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116430 | CAPS,ENGINE RADIATOR |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
