NSN 2805-00-118-9083 1162, 00-118-9083, 001189083
Product Details | VALVE TAPPET ADJUSTING SCREW
2805-00-118-9083 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 1162, 2805-00-118-9083, 00-118-9083, 2805001189083, 001189083
Engines, Turbines, and Components | Gasoline Reciprocating Engines, Except Aircraft; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-118-9083 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
Drawings & Photos | NSN 2805-00-118-9083
Demand History | NSN 2805-00-118-9083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1162 | 2011-11-306 | 1 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2805-00-118-9083
Technical Data | NSN 2805-00-118-9083
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | CASEHARDENED |

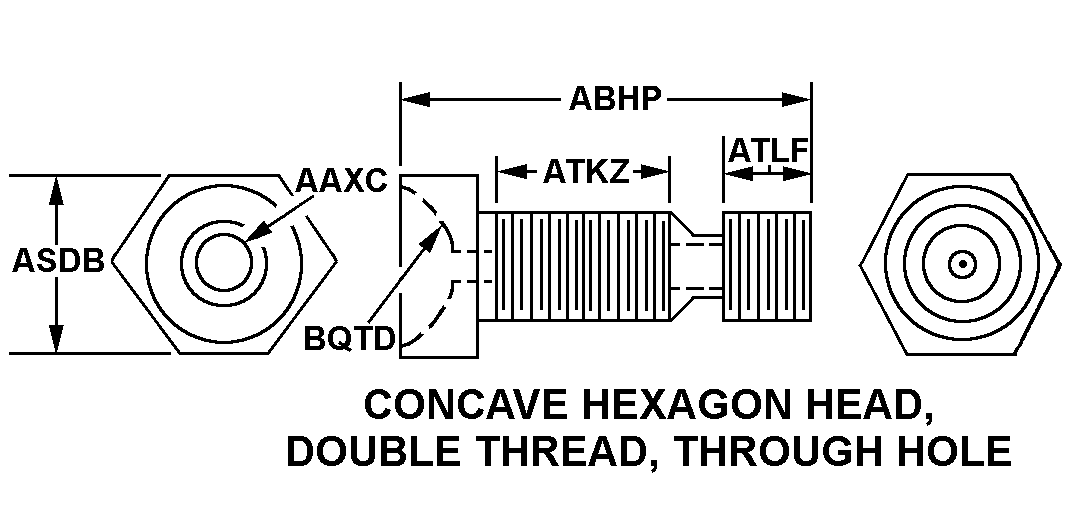

| STYLE DESIGNATOR | T9 CONCAVE HEXAGON HEAD, DOUBLE THREAD, THROUGH HOLE |
| CONCENTRIC HOLE DIAMETER | ANY ACCEPTABLE |
| OVERALL LENGTH | 0.715 INCHES NOMINAL |
| WIDTH ACROSS FLATS | ANY ACCEPTABLE |
| FIRST END THREAD LENGTH | 0.125 INCHES NOMINAL |
| SECOND END THREAD LENGTH | 0.250 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.125 INCHES NOMINAL |
| THREAD SIZE | 0.438-20 |
| THREAD SERIES | UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 2805-00-118-9083
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
